5 Final work
5.3 Installing the station software
136 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
► Click on OK to save the changes made.
5.3 Installing the station software
NOTICE
Station software version
The station software from version 710.0 can be installed.
The standard package [00140070-xx] Software SIPLACE Station 710.0 Basic contains the software
installation instructions for the version 710.0.
The station software is available on a USB stick. To install the station software, proceed as follows:
► Insert the USB stick into the connection provided.
► Start the BulkFeeder X computer and log in as the administrator.
5 Final work
5.3 Installing the station software
Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017 137

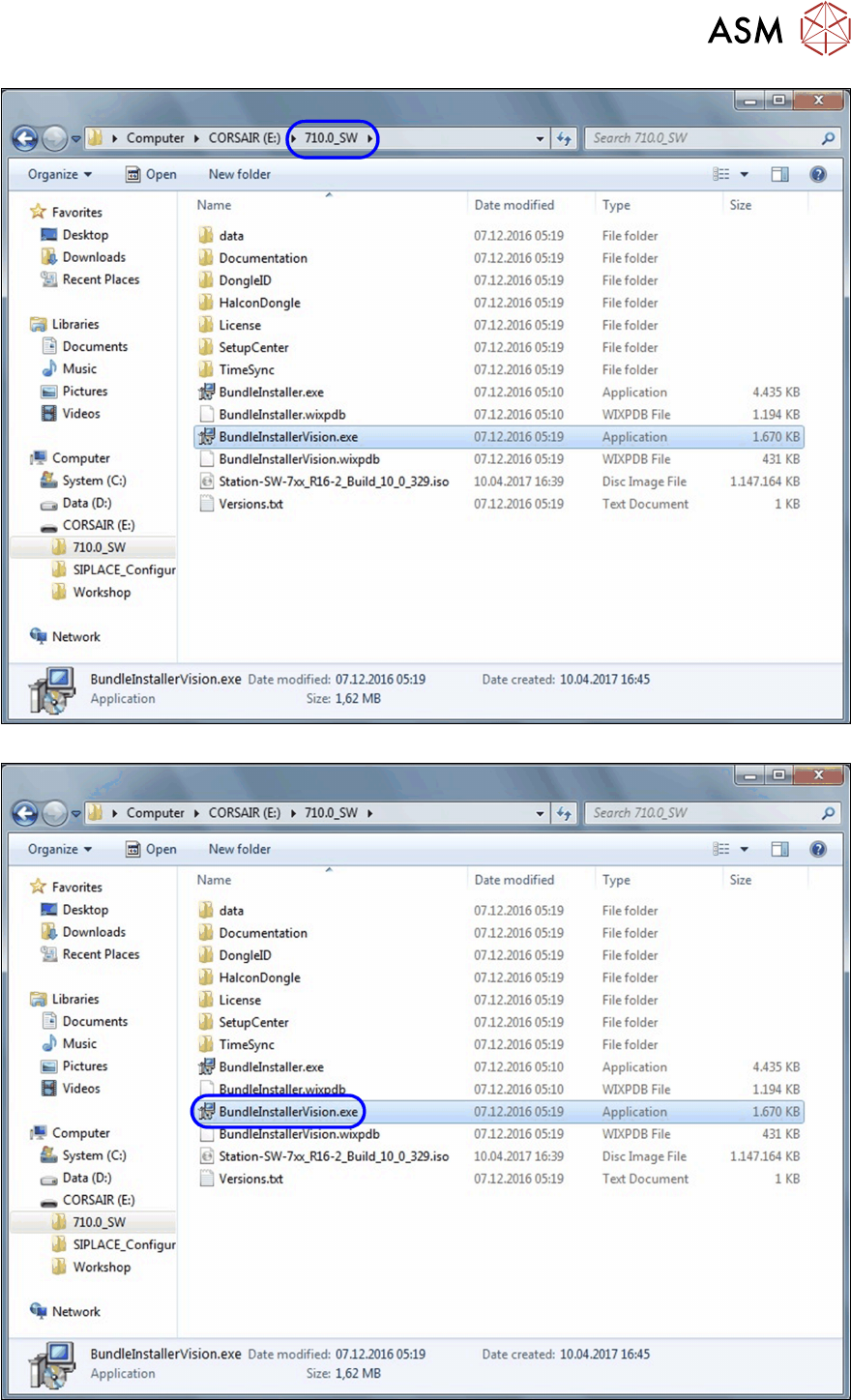

► Open an Explorer window and switch over to the folder 710.0_SW.
► Doubleclick on the file BundleInstallerVision.exe.to start the installation.
5 Final work
5.3 Installing the station software
138 Assembly Instructions / Montageanleitung SIPLACE BulkFeeder X Retrofit Kit for SX Series and X Series S 07/2017
► Select the computer BulkFeeder and click on Next.
► Click on Install to start the installation.
