For Ser v ice E n gineer Service Information SI1610004E -000= YSM10_Proced ures for the adjustmen ts required after installing a machine 9/107 3.2 Positi ons to set the levels and production line alignmen t …
For Service Engineer
Service Information
SI1610004E-000= YSM10_Procedures for the adjustments required after installing a machine
8/107
3. Installation of the machine
ｙｓｍＱＰ
:
See “SI1004008E=General procedures for carrying in and installing a machine” for the general
procedures for installing a machine.

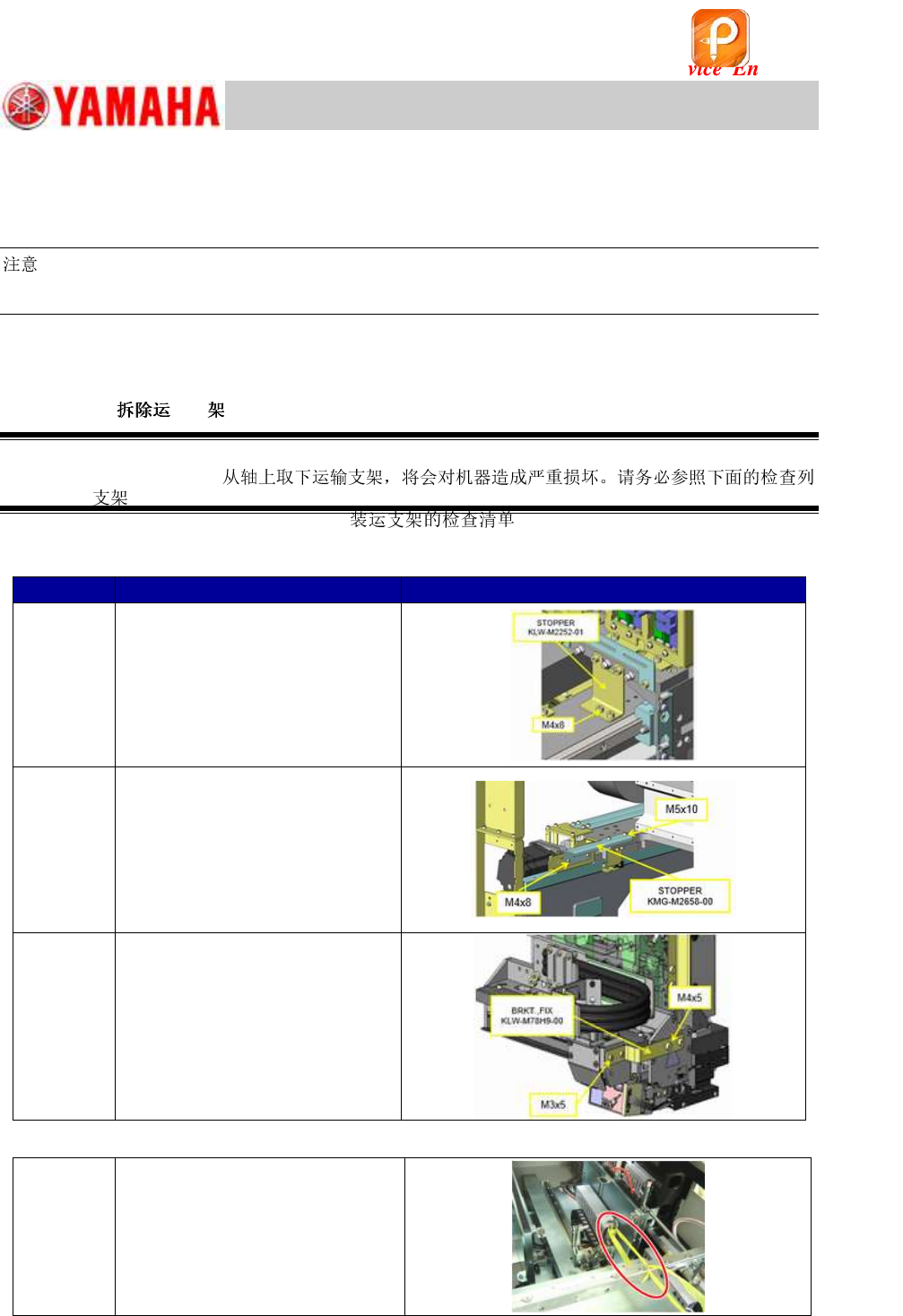

3.1 Remove the shipping brackets
After removing the shipping brackets from the machine, fill in the Check sheet that comes with the
machine.
:
“”
.
Check list for the shipping brackets
Axes
Qty
Location of the brackets
X-axis
1 position
STOPPER
KLW-M2252-01 (Qty: 1)
BOLT HEX, SOCKET HEAD
91312-04008 (M4x8, Qty: 4)
Y-axis
1 position
STOPPER
KMG-M2658-00 (Qty: 1)
BOLT HEX, SOCKET HEAD
91312-04006 (M4x8, Qty: 2)
BOLT HEX, SOCKET HEAD
91312-05010 (M5x10, Qty: 2)
SC-axis
1 position
BRKT., FIX
KLW-M78H9-00 (Qty: 1)
BOLT HEX, SOCKET HEAD
91312-03005 (M3x5, Qty: 2)
BOLT HEX, SOCKET HEAD
91312-04008 (M4x5, Qty: 2)
sATS15 (Option)
AH-axis
1 position
Yellow plastic strap
Table 9
