Next, the method of using ‘Trouble Shooting Guide’ is explained with examples.
[Example 1] Solution for the error code $1000X
1. Select ‘Send Error Message to TSG’ from the View menu items on ‘Mark3’.

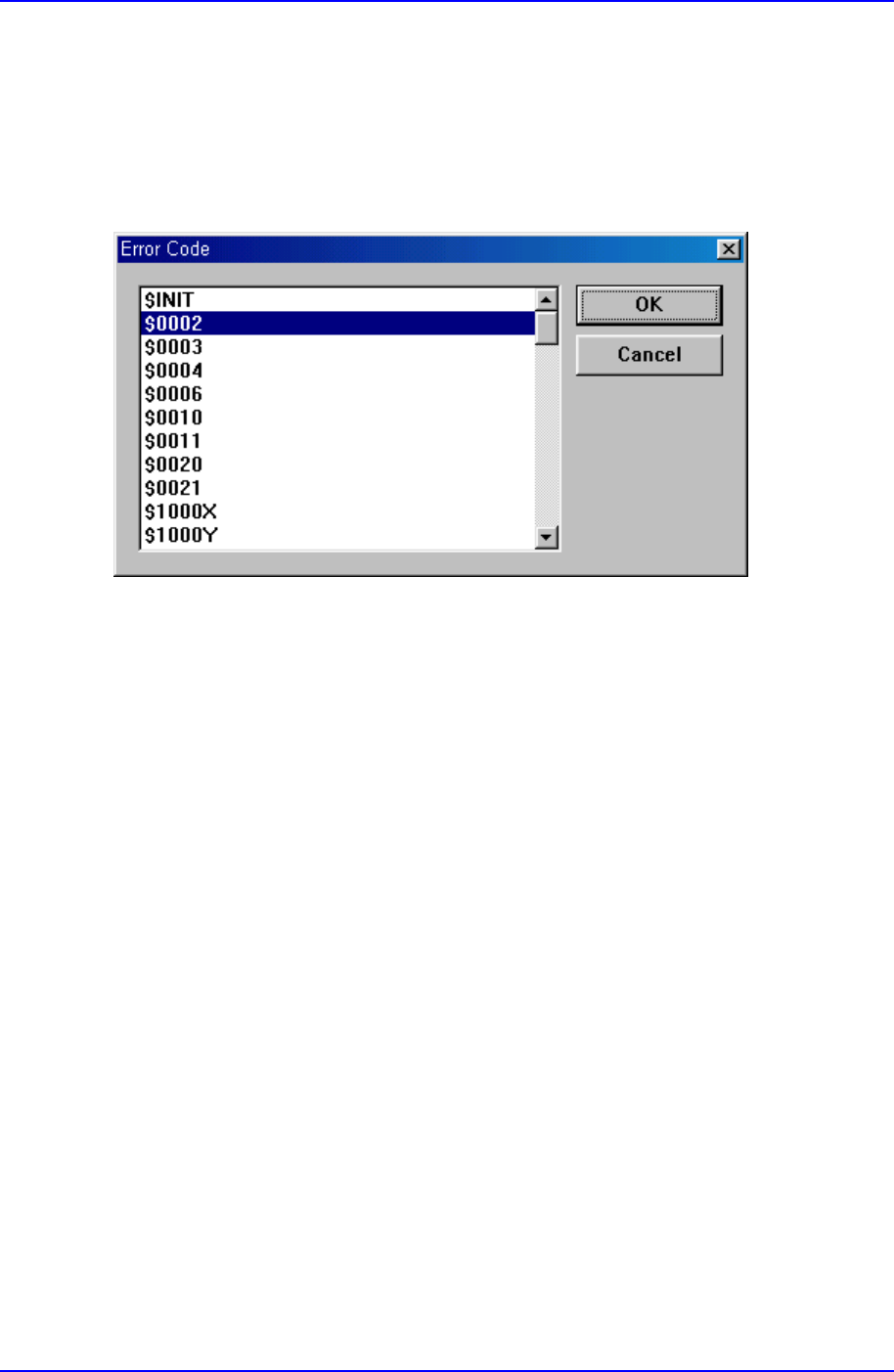

2. When the dialog box as in Fig. B-4 is displayed, select ‘$1000X’ and click on the ‘OK’
button.
Figure B-4. "Mark3TSG" screen

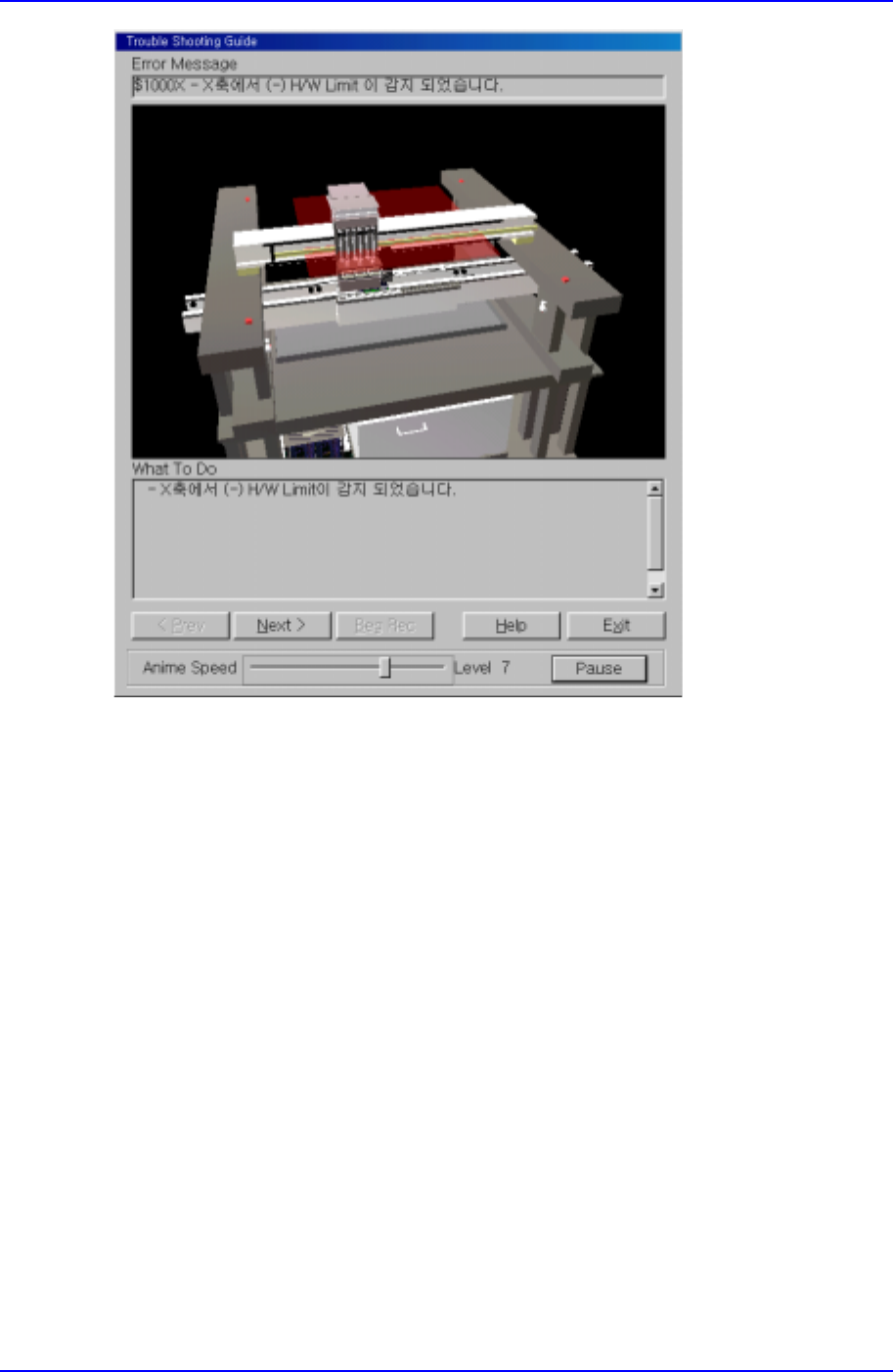

3. A ‘Trouble Shooting Guide’ screen as in Fig.B-5 is displayed. At this time, the user can
check the code, message, and situation of the present error with 3D animation.
Appendix B 3D Trouble Shooting Guide
B-5
Figure B-5. "Mark3TSG" screen
Check the error situation and click on the [Next>] button to move to the next step.
4. The screen changes to the next step as in Figure B-6. In actual situations, perform the
remedy shown in the ‘What To Do’ area and click on [Next>] to move to the next
step.
Samsung Component Placer CP-45F(V)/FS Operations Manual
B-6
Figure B-6. "Mark3TSG" screen
5. The screen changes to the next step as in Figure B-7. In a selection step as in Figure
B-7, the user must select the current situation to move to the next step. In this
example, the first situation is selected. Click on [Next>] to move to the next step.
