Samsung Component Placer CP-45F(V)/FS Operations Manual
D-8
D.5. Technical Drawing & Air Diagram
D.5.1. Technical Drawing & Part List

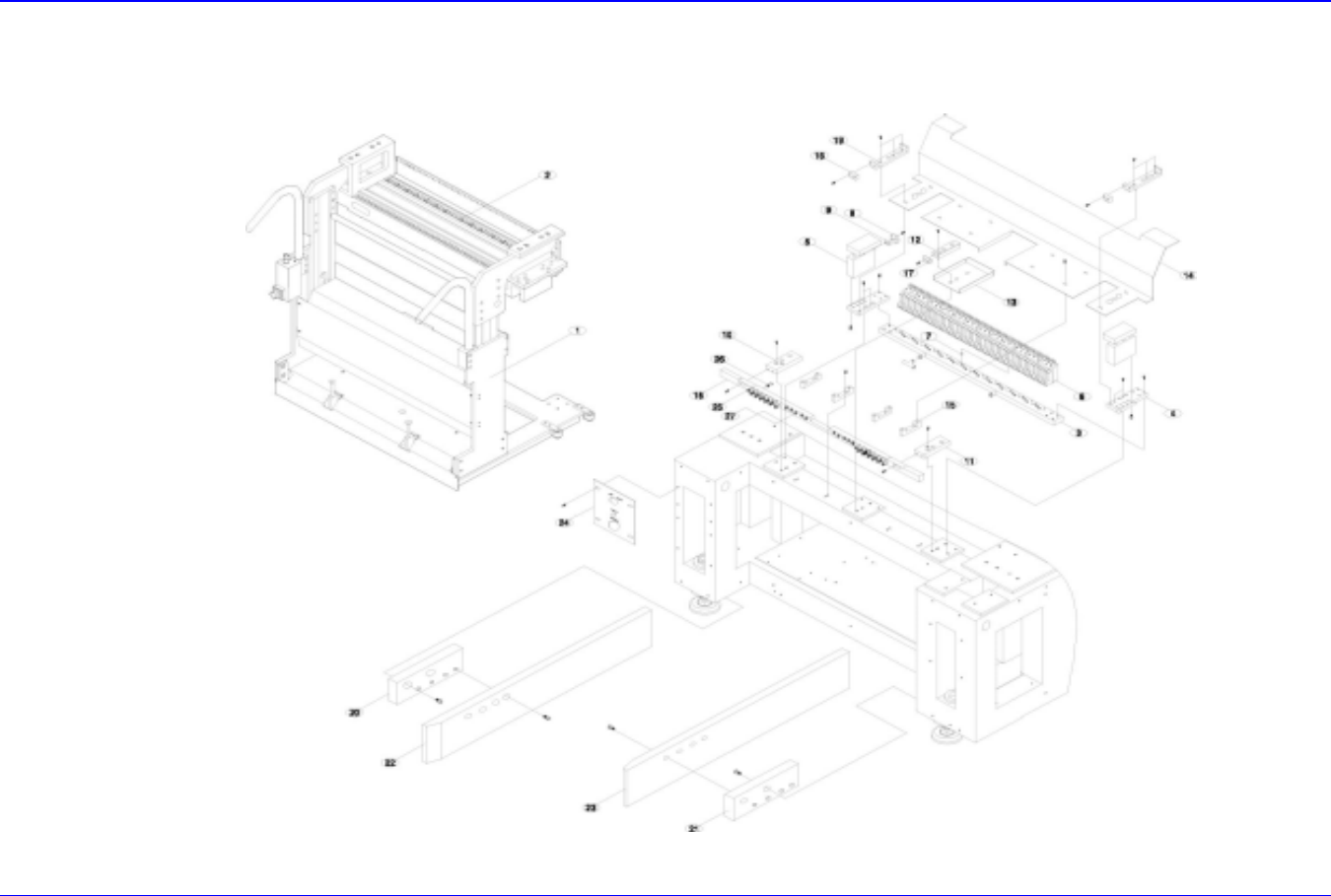

Figure D-6. Technical drawing
Appendix D. Docking Cart
D-9
NO. PARTNO. PARTNAME Q'TY TYPE REMARK
FRONT REAR
1
J9065009A DOCKING CART ASSY 1 J9065009A J9065009A
.FRONT/REAR:Q'TY*2
2
J9057027A DC-FEEDER BASE ASSY 1 J9057027A J9057027A
3
J7157041A BASE-MULTI CYL 1 J7157041A J7157041A
4
J7057116A ADAPTER CYLINDER BLOCK-F 2 J7057116A J7057117A
5
J6701031A AIR CYLINDER 2 J6701031A J6701031A
6
1301387 MULTI-CYLINDER 12 1301387 1301387
7
1301423 O-RING 24 1301423 1301423
8
J3212014A PHOTO SENSOR 1 J3212014A J3212014A
9
J7157068A SENSOR BLOCK 1 J7157068A J7157068A
10
J7057146A LOCATOR PLATE-L 1 J7057146A J7057148A
11
J7057147A LOCATOR PLATE-R 1 J7057147A J7057149A
12
J7057088A GUIDE PLATE 1 J7057088A J7057088A
13
J7057109A CHIP COVER-F.C 1 J7057109A J7057109A
14
J7057150A CHIP COVER-FRONT 1 J7057150A J7057150A
15
J7157055A CHIP COVER BRACKET1 4 J7157055A J7157057A
16
J7157069A SPEED PANEL 1 J7157069A J7157082A
17
J7257005A STOPPER 1 J7257005A J7257006A
18
J7257007A URETHAN STOPPER 2 J7257007A J7257007A
19
J7057120A LIMIT BRACKET-F 2 J7057120A J7057121A
20
J7157070A GUIDE BRACKET-LF 1 J7157070A J7157071A
21
J7157072A GUIDE BRACKET-RF 1 J7157072A J7157073A
22
J7157078A GUIDE PLATE-LF 1 J7157078A J7157079A
23
J7157080A GUIDE PLATE-RF 1 J7157080A J7157081A
24
J7052584A PRESSURE GAGE PANEL 1 J7052584A J7052585A
25
J6703001A EXHAUST THROTTLE VALVE 24 ASN2-M5 ASN2-M5
26
J6711076A STRAIGHT FITTING 24 POC4-M5M POC4-M5M
27
J6711100A CHECK UNION 4 KCE04-00 KCE04-00
Samsung Component Placer CP-45F(V)/FS Operations Manual
D-10
D.6. Air Diagram & Part List

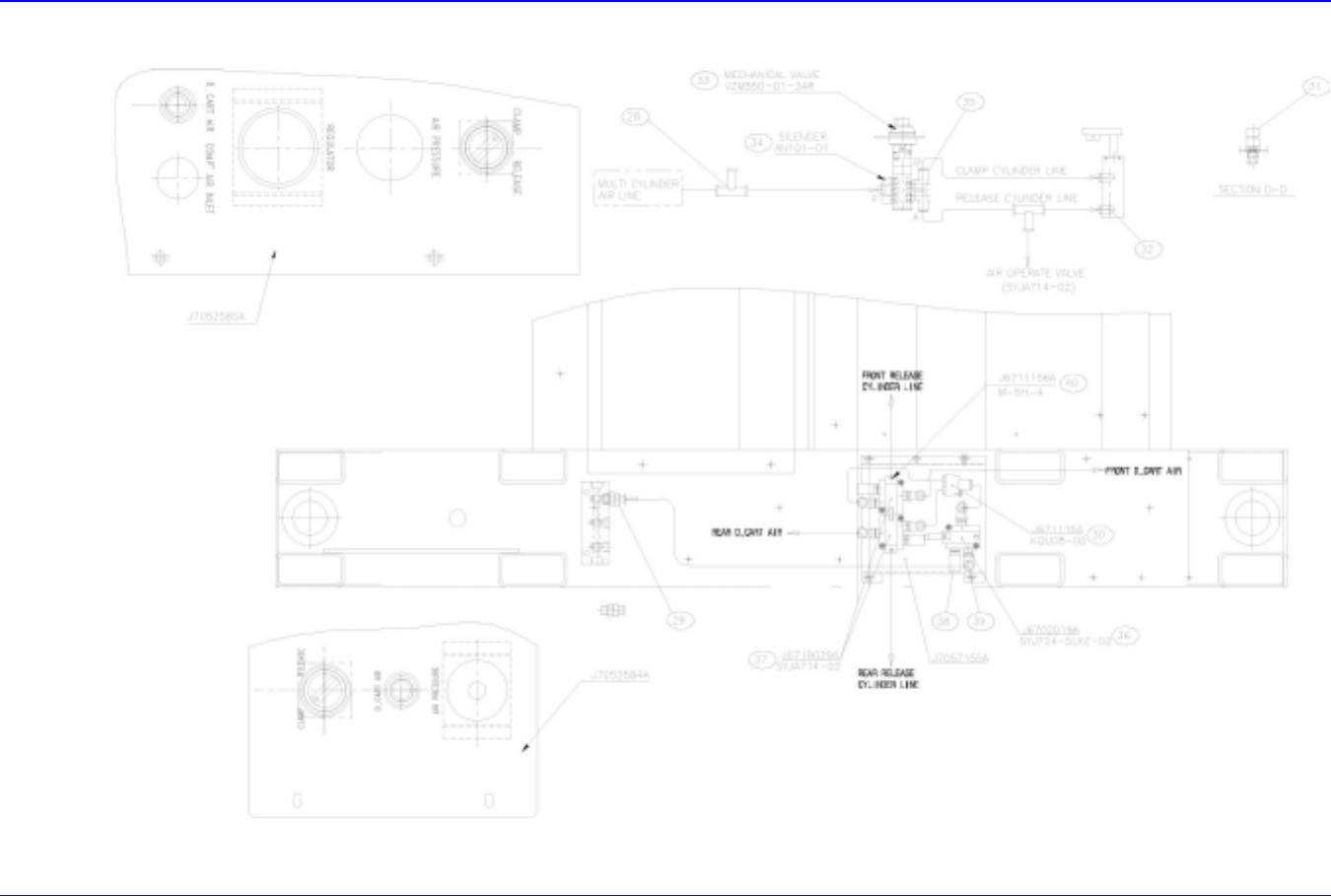

Figure D-7. Air Diagram 1
