Samsung Component Placer CP-45F(V)/FS Operations Manual C-6 be checked from the “T ray Configuration” dialog box in Figure C-6. If the user removes a component in the Shuttle directly , ' Clear' must be execute…

Appendix C Shuttle Tray Feeder

C-5

C.5. Precautions for the use of Shuttle Tray Feeder

C.5.1. Board Size limit

When using the Shuttle Tray Feeder, the length (Y direction of CP45 equipment) of

applicable PCB board is limited to under 300mm.

C.5.2. Using Dump Conveyor

When using the Shuttle Tray Feeder, 'Return to Tray' can not be used for the Dump Box

unlike regular Tray Feeders. Instead, the Dump Conveyor can be used. The Dump

Conveyor can be registered in the "Dump Box" dialog box (Sys. SetupTray) as in

Figure C-5, and the procedure is as follows.

① Enter the location where the Dump Conveyor is installed.

② Set whether the Dump Conveyor is to be used or not.

③ Enter the Feeder lane that is occupied by the Dump Conveyor.

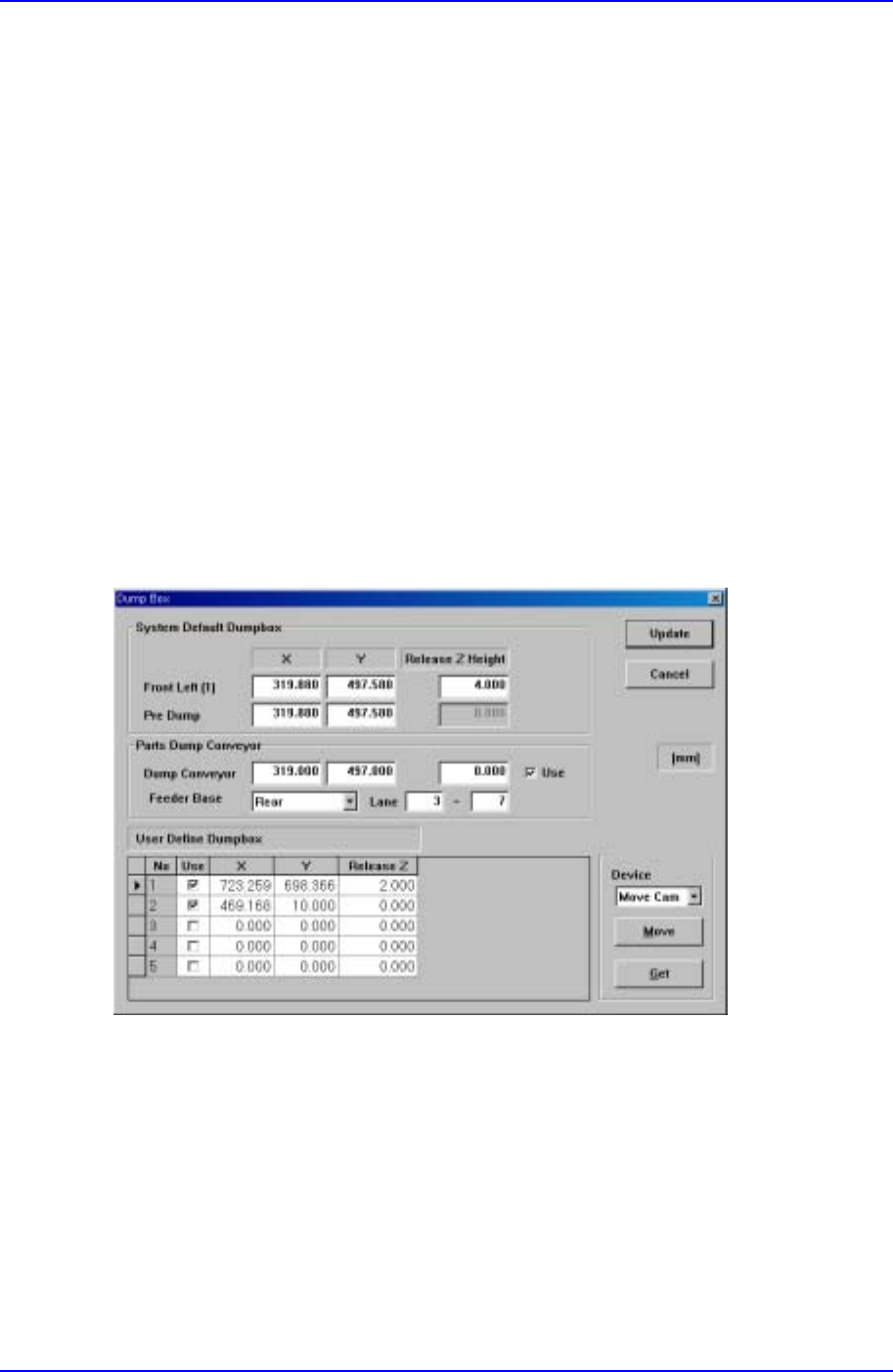

Figure C-5. "Dump Box " dialog box

C.5.3. Condition for Cycle creation

The number of components using the Shuttle Tray Feeder in one cycle can not be more

than 2(number of PADs).

C.5.4. Adding Shuttle Tray related function to ProductionT/F Cnt

In the case of Shuttle Tray Feeder, whether a component exists in the current Shuttle can

Samsung Component Placer CP-45F(V)/FS Operations Manual

C-6

be checked from the “Tray Configuration” dialog box in Figure C-6.

If the user removes a component in the Shuttle directly, 'Clear' must be executed. Also,

Vacuum supply to each PAD of the current Shuttle can be cancelled.

Figure C-6. "Tray Configuration" dialog box

Appendix D. Docking Cart

D-1

Appendix D. Docking Cart

D.1. Overview

D.1.1. Overview

The Docking Cart, which is the Batch Changer of the Feeders of the Component Placer, is

a peripheral device to improve convenience and productivity by reducing the time needed

to change the feeder. (Hereafter the Component Placer is called the machine)

D.1.2. External View and Structure of the Docking Cart System

CLAMP CYLINDER

LIMIT BRACKET

GUIDE PLATE

FEEDER BASE

Manual

Operational

VALVE

STOPPER

GUIDE ROLLER

Figure D-1. External View and Structure

 Docking Cart Ass’y

Supports the DC-Feeder Base, is movable, and has a device that enables UP/DOWN

movement
