Appendix C Shuttle T ray Feeder C-3 C.3. Registering Components Supplied to Shuttle T r ay Feeder Figur e C-3. "Cr eate a new part/Edi t the selected part" dialog box The method of registering components suppli…

Samsung Component Placer CP-45F(V)/FS Operations Manual

C-2

(DiagnosisTray) in Figure C-2.

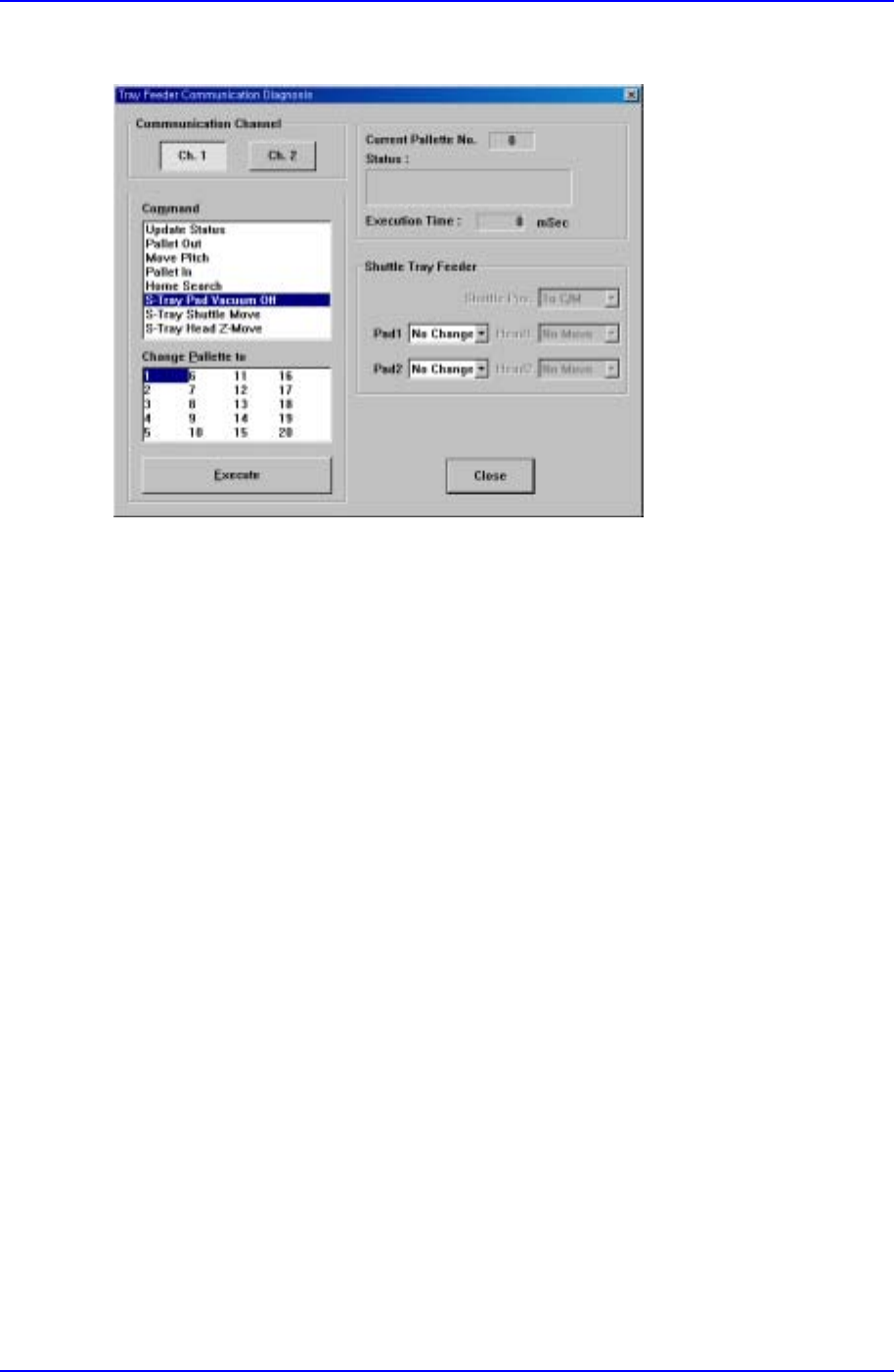

Figure C-2. "Tray Feeder Communication Diagnosis " dialog box

The following operations can be checked in relation to Shuttle Tray Feeder.

① S-Tray Pad Vacuum Off: Provides or stops air pressure to each PAD of the Shuttle.

② S-Tray Shuttle Move: Moves the Shuttle to the CP45 equipment or the Tray Feeder.

③ S-Tray Head Z-Move: Operates the head of the Tray Feeder.

Appendix C Shuttle Tray Feeder

C-3

C.3. Registering Components Supplied to Shuttle Tray Feeder

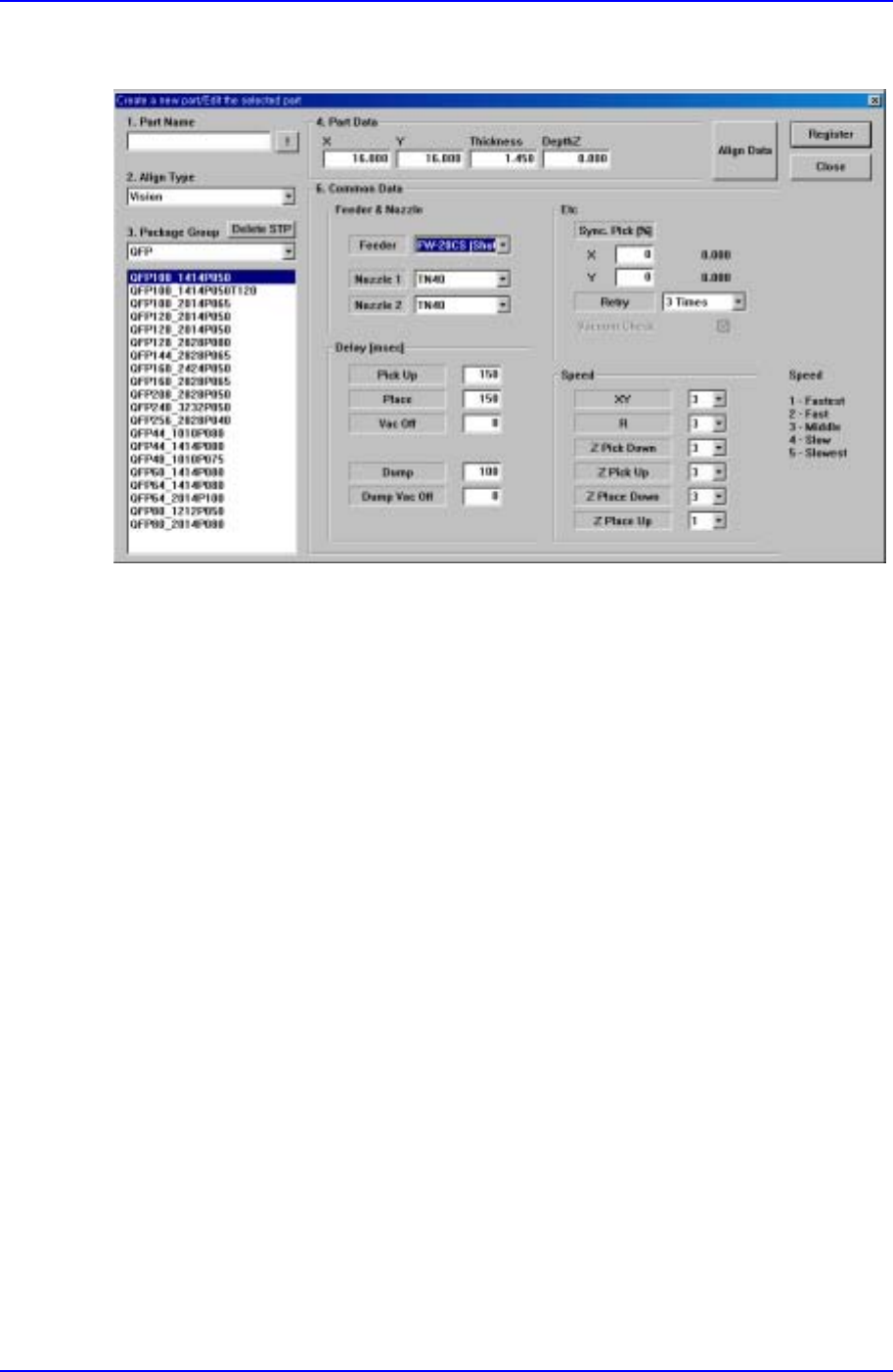

Figure C-3. "Create a new part/Edit the selected part" dialog box

The method of registering components supplied to the Shuttle Tray is the same as that for

the registration of existing components.

That is, as can be seen in Figure C-3, specify the Feeder item to ‘FW-20CS (Shuttle)’ in

the "Create a new part/Edit the selected part" dialog box (PCB EditPartNew Part…).

Samsung Component Placer CP-45F(V)/FS Operations Manual

C-4

C.4. Setting the use of Shuttle Tray Feeder

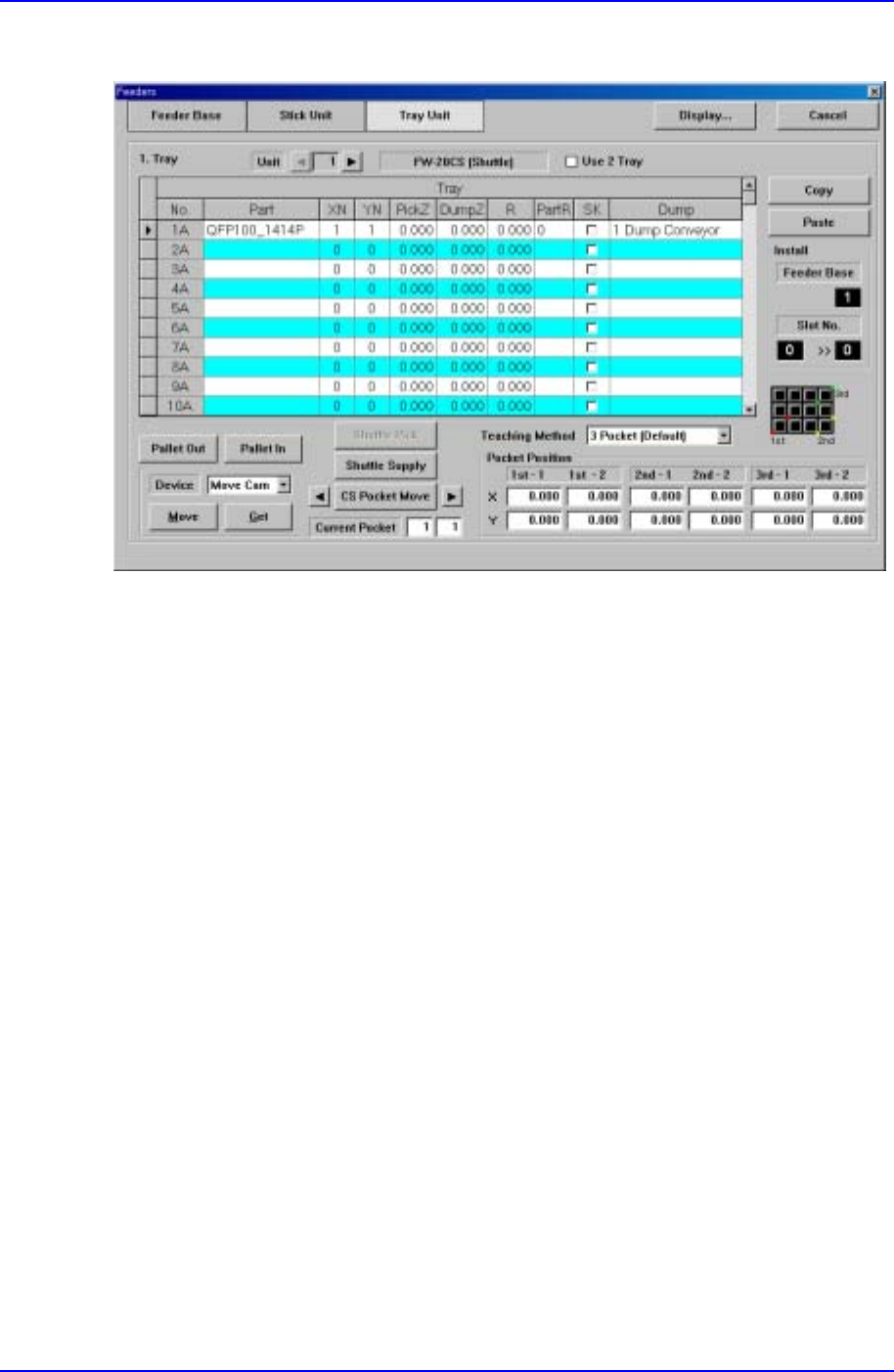

Figure C-4. "Feeders" dialog box

The method of setting the Feeder to supply components by using the Shuttle Tray is the

same as that for the existing Tray Feeder. However, as can be seen in the "Feeders" dialog

box (PEB EditFeederTray Unit) in Figure C-4, the menu items of Tray Feeder are

changed or the following items are added.

 Shuttle Pick

When there is a component in the Shuttle, it is picked up. If not, a component is

supplied from the Shuttle Tray and it is picked up.

 Shuttle Supply

Receives a component from the Shuttle Tray and moves it to the component supply

position in the CP45 equipment.

 CS Pocket Move

Moves the head of the Shuttle Tray to the designated Palette and the position of

Pocket in the Shuttle Tray.

 Using the Dump Conveyor

When the Shuttle Tray is used, the existing ‘Return to Tray’ Dump can not be used.

Accordingly, when the Dump Conveyor is used, ‘Dump Conveyor’ is set as the

default Dump position. For the registration of 'Dump Conveyor', please refer to C.5

Precautions for the use of Shuttle Tray Feeder (page C-5 ).
