Appendix A Optimizer
A-1
Appendix A. Optimizer
The Optimizer automatically creates a program to maximize the production efficiency by
optimizing the arrangement position and operation order of tape feeder, nozzle, ANC, and
others. The method to achieve the maximum production efficiency is as follows.
Minimize the number of nozzle changes
Maximize the number of simultaneous pickups by the feeder
Arrange the feeders so that the time for XY gantry movement is minimized
Decide the order of optimum mounting operation
The Optimizer takes into account of various operation conditions and executes the
optimum algorithm to achieve these results. In this chapter, the structures of various
setting screens and setting methods necessary to execute the Optimizer are explained.
A.1. Setup Menu/ANC

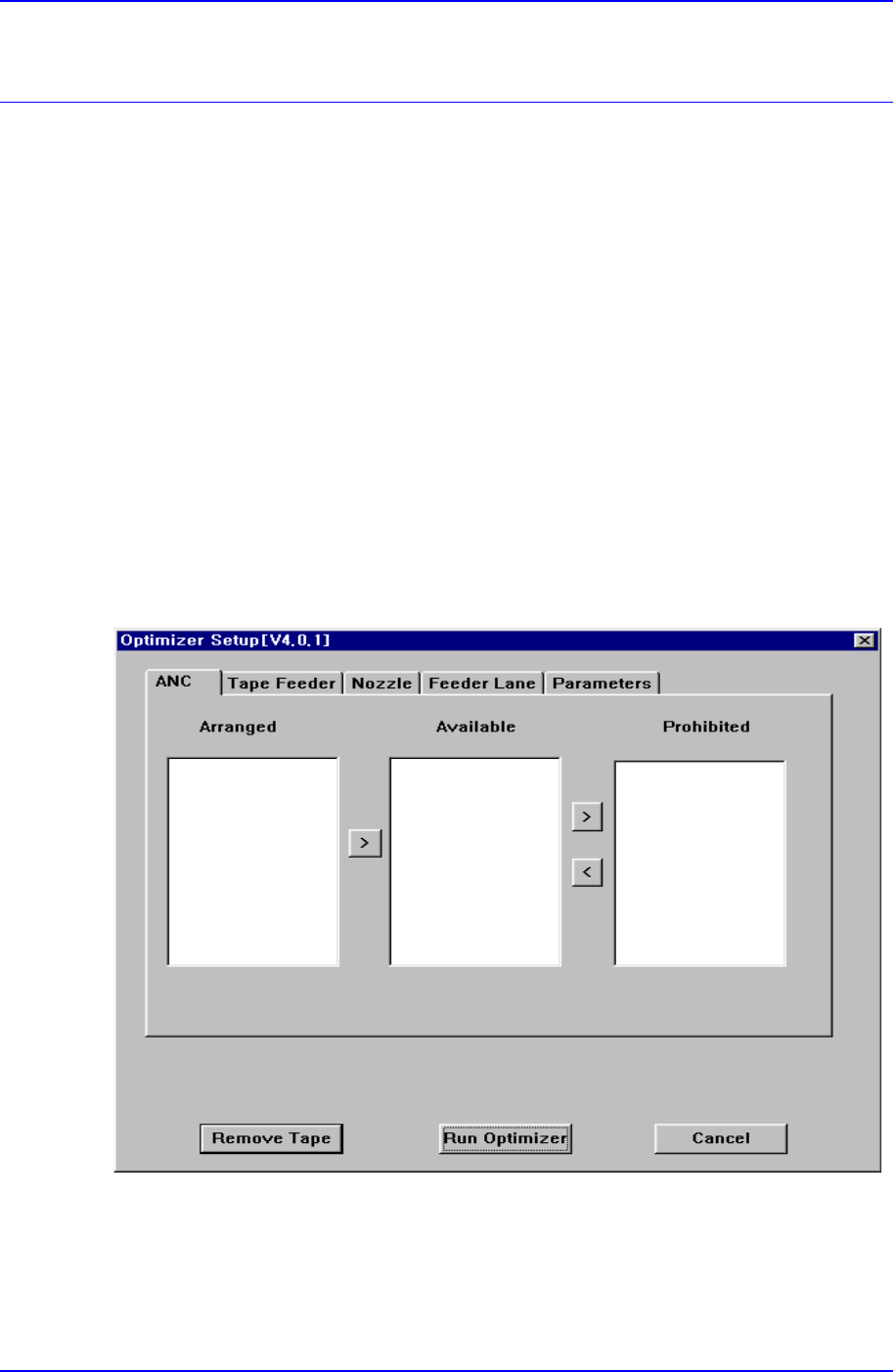

Figure A-1. "Optimizer Setup: ANC" dialog box
The screen to set the optimum arrangement of movable type ANCs. Fixed type ANCs are
not listed in the screen.
<ANC> group/<Arranged> list box
Samsung Component Placer CP-45F(V)/FS Operations Manual
A-2
Displays the ANCs already arranged in the feeder lane of the "PCB Setup" dialog box.
The Optimizer does not change the arrangement position of the ANCs listed here and
arranges the tape feeder so that there is no mechanical interference with the arranged
ANCs. Move the ANC, for which you want the Optimizer to show the optimum
position, to the <Available> list box by selecting it in the list and clicking on the
arrow button (
).
<ANC> group/<Available> list box
The group to list the ANCs for which you want optimum arrangement among the
ANCs registered in the "PCB Setup" dialog box. When the Optimizer is executed, the
listed ANCs are arranged on the optimum positions on the feeder lane. Move the
ANC that is not necessary for the PCB file being edited to the <Prohibited> list box
by selecting it and clicking on the arrow button (
).
<ANC> group/<Prohibited> list box
The group to list the ANCs that are not necessary to be arranged by the Optimizer
(unnecessary for the PCB being edited). The ANCs listed in this box are not
considered for optimum arrangement by the Optimizer and they are considered as
non-existent. Therefore, the ANCs listed in this box must be removed from the feeder
lane. Move the ANC that needs to be optimally arranged to the available list box by
selecting it and clicking on the arrow button (
).
<Run Optimizer> button
When this button is pressed, executes the Optimizer. After executing this button, do
not execute other MMI commands until Optimizer execution has been completed and
the MMI screen is displayed again.
Appendix A Optimizer
A-3
A.2. Setup Menu/Tape Feeder

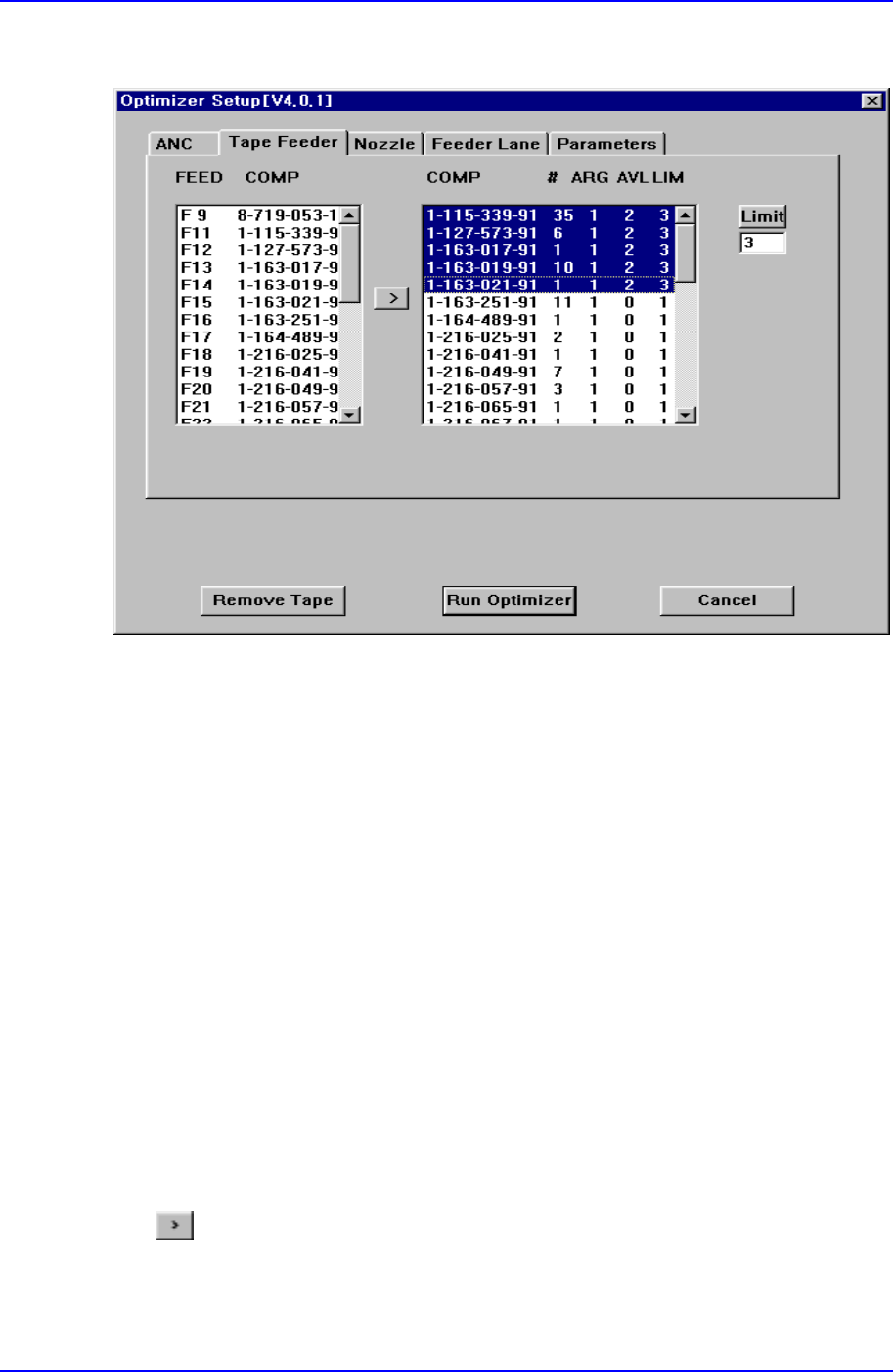

Figure A-2. "Optimizer Setup: Tape Feeder" dialog box
The screen to set the optimum arrangement of tape feeder. The Optimizer can arrange
tape feeders in the optimum feeder lanes by considering simultaneous pickup and
operation time. But the user must specify the installation position for tray feeders and
stick feeders.
<FEED COMP> list box
In the left list box, the number of the feeder that is already arranged in the feeder lane
and each component name are displayed. For the front feeder base, F is attached in
front of the feeder lane number and for the rear feeder base, R is attached in front of
the feeder lane number. The feeders listed here are not arranged arbitrarily by the
Optimizer. However, the feeders already arranged affect other feeders when they are
arranged by the Optimizer. That is, when there are feeders already arranged, new
feeders are arranged to increase simultaneous pickup.
Among the feeders displayed here, move the feeders for which you want optimal
arrangement by the Optimizer to the right list box by clicking on the arrow button
(
) and execute the Optimizer.
<COMP # ARG AVL LIM> list box
In the right list box, the number of placement points for each component, the number
