Figure C-6. "Tray Configuration" dialog box
Appendix D. Docking Cart
D-1
Appendix D. Docking Cart
D.1. Overview
D.1.1. Overview
The Docking Cart, which is the Batch Changer of the Feeders of the Component Placer, is
a peripheral device to improve convenience and productivity by reducing the time needed
to change the feeder. (Hereafter the Component Placer is called the machine)
D.1.2. External View and Structure of the Docking Cart System
CLAMP CYLINDER
LIMIT BRACKET
GUIDE PLATE
FEEDER BASE
Manual
Operational
VALVE
STOPPER
GUIDE ROLLER

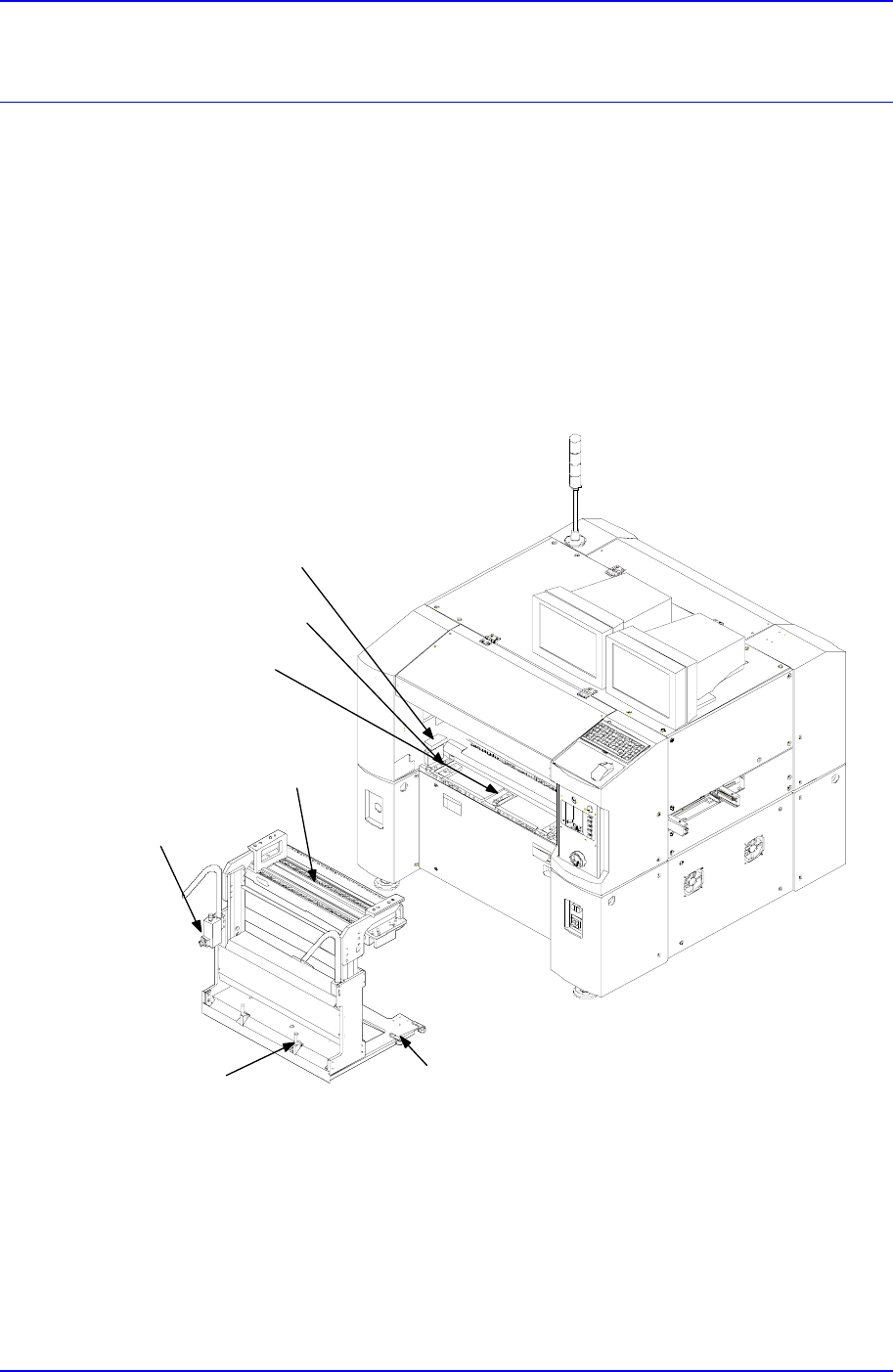

Figure D-1. External View and Structure
Docking Cart Ass’y
Supports the DC-Feeder Base, is movable, and has a device that enables UP/DOWN
movement
Samsung Component Placer CP-45F(V)/FS Operations Manual
D-2
DC-Feeder Base Ass’y
It is where the Feeder is mounted and a locating Bush is attached.
Component placer
The Docking Cart System can be mounted on it and a locating Pin for DC Feeder
Base and a Clamp Cylinder for locking are attached.
D.1.2.1. Specifications
Table D-1. Specifications
Classification Specification Remark
Height of the feeder's
pickup point
900mm ± 20, 952.5±12.5
Option
Number of mounted feeders 48 / DC-FEEDER BASE Based on the 8mm Pneumatic
Tape feeder
Dimension
770(L)×927(W)× 965mm(H)
Weight About 130Kg
Docking cart
Maximum
Load
150Kg 8mm feeder(48 units) + feeder
base
Dimension
880(L) ×210(W) ×225mm(H)
Feeder Base
Weight 50Kg
The size of component
placer when the D/C is
installed
1,660(L) × 1,830(W) ×1,408(H)mm
D.1.3. Applicable range
D.1.3.1. Component Placer
In the CP-45 series, it only applies to machines that have the Docking Cart option.
D.1.3.2. Software
Runs on MMI Version 2.108, VME 2.3 or later versions.
Control the front and rear options.
Checking the change of the maximum number of mounted feeders.
Checking the state of supplying the air with the docking cart.
