iv • Summit 11K/12K Probe St ations User’s Guide —Le numéro de série se trouve sur le cadre à l'avant de l'appareil, situé à l'intérieu r de la porte inférieu re droite. • M odèle S300 Station de Mesures S…
Before You Begin
•
iii
• Bit 0 is the low-order bit. If a bit is set to 1, the associated description is true
unless otherwise stated.

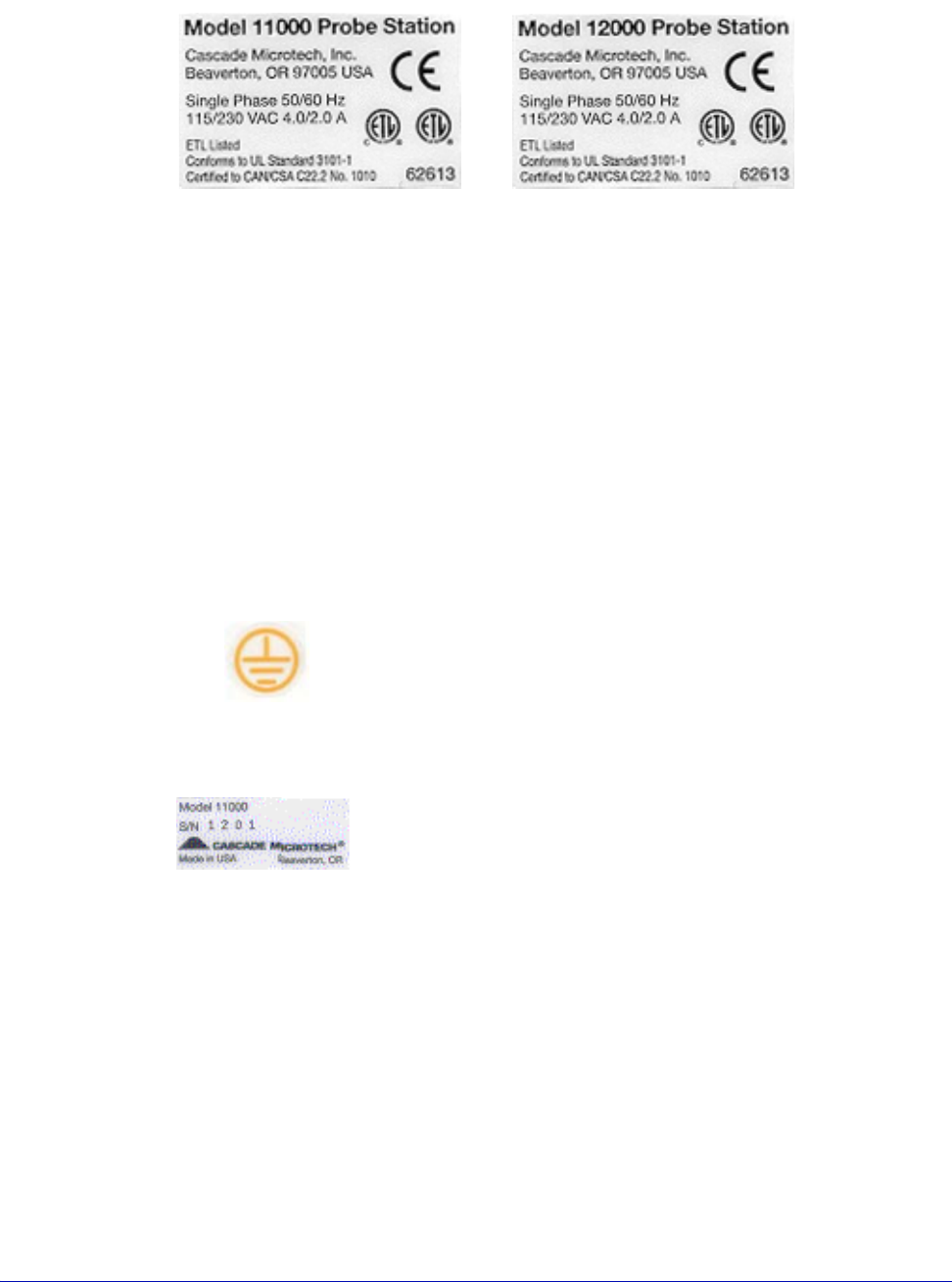

IDENTIFYING LABELS—IDENT - SYMBOLE—ETIQUETTES D'IDENTIFICATION
These labels identify parts or system numbers, and grounding points.
IDENT-Symbole – bezeichnen Teile, System-Nummerierungen und
Erdungspunkte
D'autres étiquettes permettent d'identifier les pièces, la numérotation de
l'équipement et des points mis à la terre.
• Model number is located on the lower I/O panel at the rear of the station.
—die Modell-Nummer befindet sich am I/O-Panel an der Rueckseite der
Station.
—Le numéro du modèle se situe sur le panneau inférieur des «entré / sortie»
à l'arrière de l'appareil.
• Serial number is located on the frame rail at the front of the station, inside the
lower-right door.
—die Serien-Nummer befindet sich am Rahmen an der Vorderseite der
Station, Innenseite der rechten Tuer
WARNING is used to indicate the
presence of a hazard which
can
cause severe personal injury,
death, or substantial property
damage if the warning is
ignored.
D
ANGER is used to indicate the
presence of a hazard which
will
cause severe personal injury,
death, or substantial property
damage if the warning is
ignored.
C
AUTION is used to indicate the
presence of a hazard which
will
or
can cause minor personal
injury or property damage if the
warning is ignored.
This includes situations that may
cause damage to hardware via
electrostatic discharge (ESD).
N
OTE is used to indicate
important information about the
product that is not hazard
related.
The globe indicates a World
Wide Web address.
iv
•
Summit 11K/12K Probe Stations User’s Guide
—Le numéro de série se trouve sur le cadre à l'avant de l'appareil, situé à
l'intérieur de la porte inférieure droite.
•
M
odèle S300 Station de Mesures Sous Pointes - Cascade Microtech, Inc. Beaverton, OR
9
7005 Etats Unis - Courant monophasé 50/60 Hz - 115/230 VAC 4.0/2.0 A - Inscrit à ETL -
C
onforme aux standards UL 3101-1 - Certifié à CAN/CSA C22.2 No. 1010.1
Modell S300, Probe-Station—Cascade Microtech, Inc.—Beaverton, OR 97005 USA –
e
inphasig 50/60Hz—115/230 VAC-4.0/2.0 A—ETL eingetragen – entspricht UL Standard 3101-
1—zertifiziert nach CAN/CSA C22.2 No. 1010.1
M
odel 11000/12000 Probe Station—Cascade Microtech, Inc.—Beaverton, OR 97006 USA—
S
ingle Phase 50/60 Hz—115/230 VAC-4.0/2.0 A—ETL Listed—Conforms to UL Standard 3101-
1—Certified to CAN/GSA C22.2 No. 1010.1
Ground
Erdungspunkt / Masse
Prise de terre
Ground
N
º du Modéle—Nº de Serie—Fabriqué par Cascade Microtech, Inc., 2430 NW 206th Ave.,
B
eaverton, OR 97006, USA
Model No.—Serial No.—Manufactured by Cascade Microtech, Inc. 2430 NW 206th Ave.
Beaverton, OR 97006, USA
Modell-Nr.—Serien-Nr.—hergestellt durch Cascade Microtech, Inc. 2430 NW 206th Ave.
Beaverton, OR 97006, USA
Before You Begin
•
v
Where to Get More Information
ABOUT SUMMIT 11K/12K PROBE STATIONS
You can find out more about Summit probe stations from these sources:
• Readme file: Lists features and issues that arose too late to include in other
documentation.
• World Wide Web: Cascade Microtech maintains an active site on the World
Wide Web. The site contains current information about the company and
locations of sales offices, new and existing products, contacts for sales, service,
and technical support information. You can also send e-mail to Cascade
Microtech using the web site. Requests for sales, service, and technical
support information receive prompt response.
NOTE
When sending e-mail for technical support, please include information about both
the hardware and software, plus a detailed description of the problem, including
how to reproduce it.
WWW
ADDRESS
To access the Cascade Microtech web site, enter this URL in your web browser:
http://www.cascademicrotech.com
• Other: If you purchased your Cascade Microtech product from a third-party
vendor, you can contact that vendor for service and support.
