CP,SM Tape Feeder Total CS Manual(V200603).pdf - 第111页
- 3 4 - 3 3 1 3 4 0 1 4 2 9 3 2 1 5 2 8 6 1 6 1 1 4 1 7 8 3 1 4 0 3 0
34
3
38
35
46
4
22
- 33 -
17
27
36
43
19
18
20
24
21
25
2
23
26
42
10
45
5
39
44
47-5
47-3
47-1
481
47-4
- 34 -
33
13
40
14
29
32
15
28
6
16
11
41
7
8
31
40
30

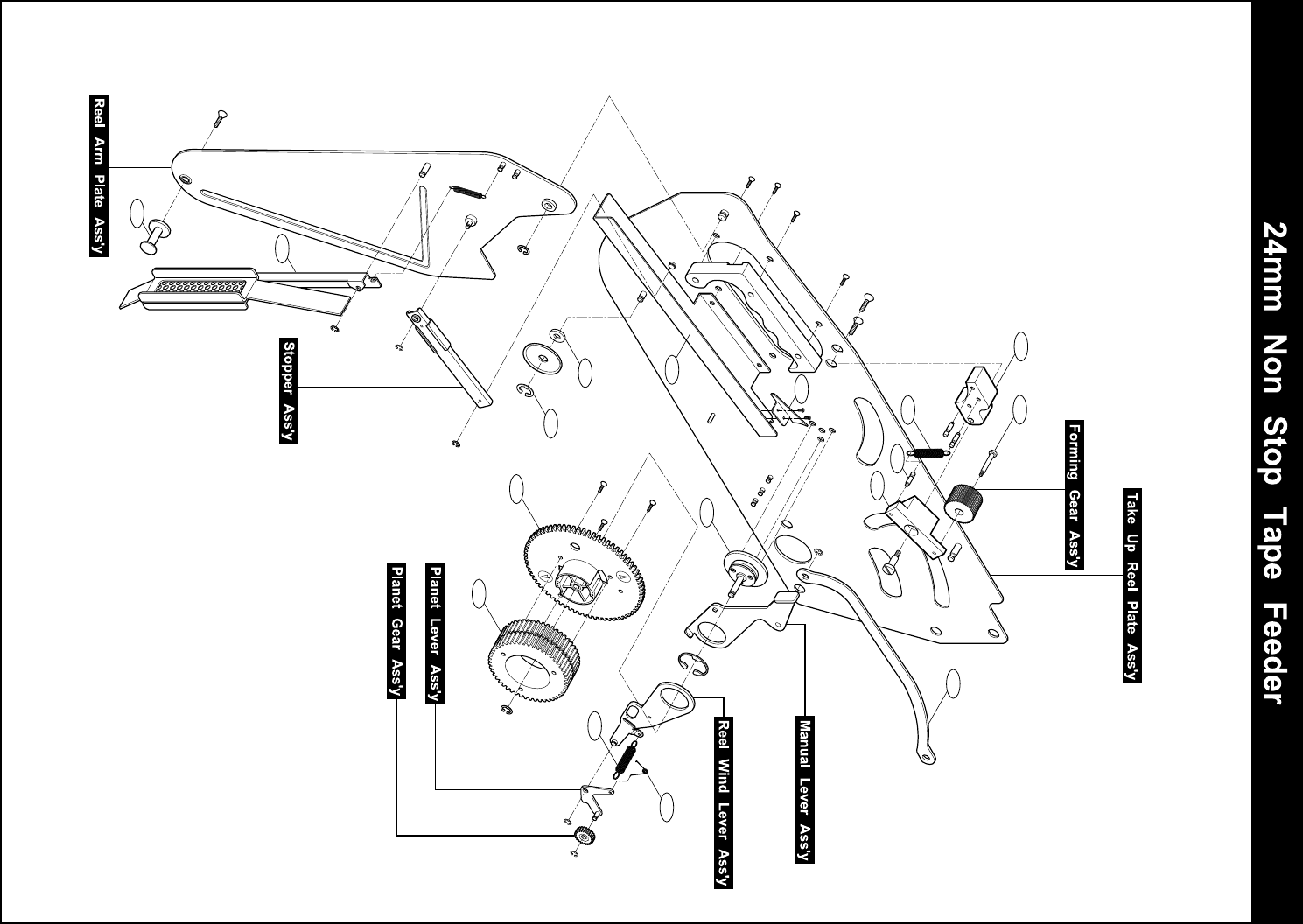

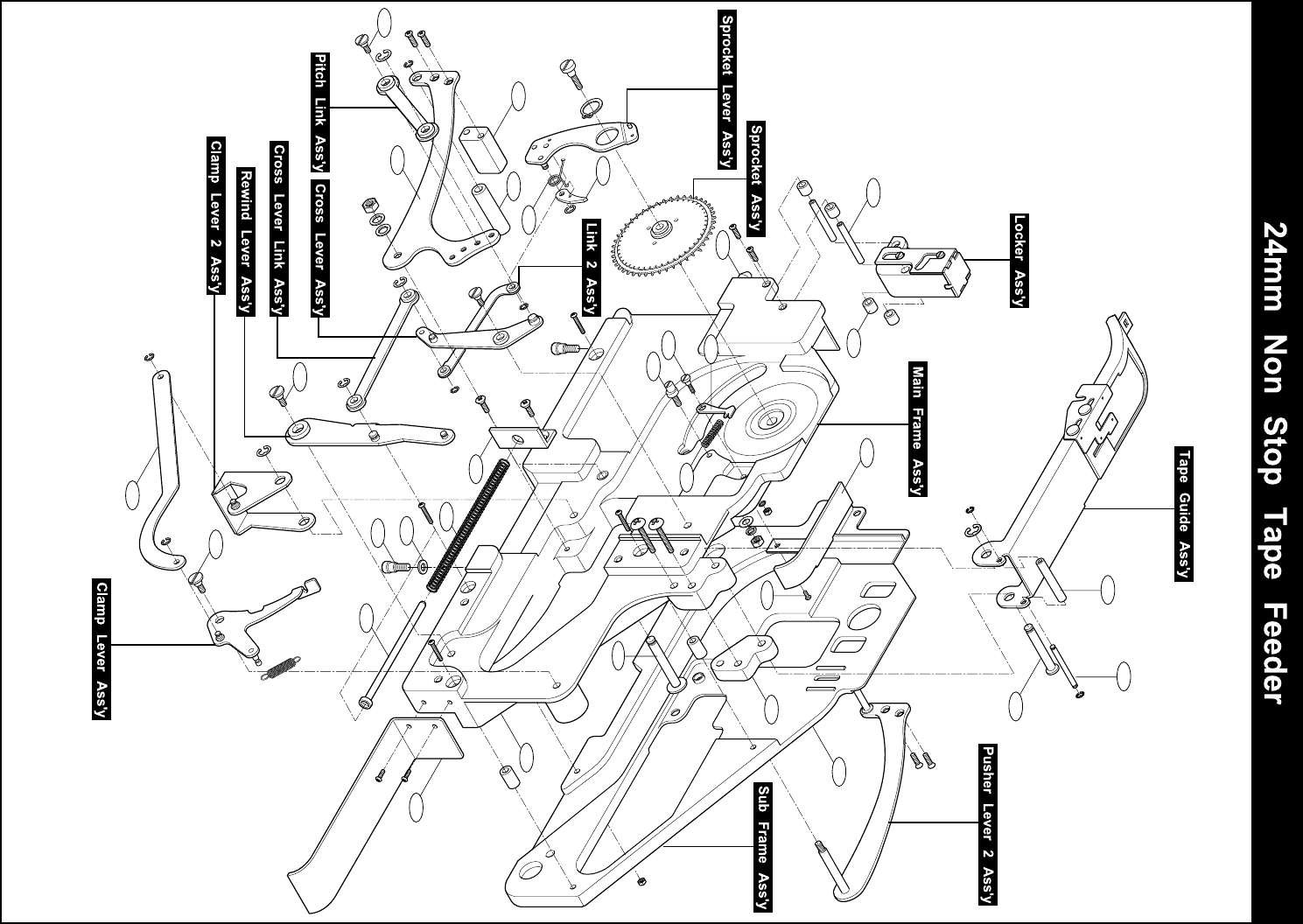

24mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
J9065105A MAIN FRAME ASS'Y 0 0 1 0 0 0 0 0
J9065106A SUB FRAME ASS'Y 0 0 1 1 1 1 1 1
J9065080A
SPROCKET ASS'Y
1 1 1 0 0 0 0 0
J9065107A
SPROCKET LEVER ASS'Y
0 0 1 1 1 1 1 0
J9065082A
CROSS LEVER ASS'Y
1 1 1 1 1 1 1 1
J9065083A
REWIND LEVER ASS'Y
1 1 1 1 1 1 1 1
J9065084A
LINK 2 ASS'Y
1 1 1 1 1 1 1 1
J9065085A
CLAMP LEVER 1 ASS'Y
1 1 1 1 1 1 1 1
J9065086A
CROSS LEVER LINK ASS'Y
1 1 1 1 1 1 1 1
J9065087A
PITCH LINK ASS'Y
1 1 1 1 1 1 1 1
J9065108A PUSHER LEVER 2 ASS'Y 0 0 1 0 0 0 0 0
J9065109A
CLAMP LEVER 2 ASS'Y
0 0 1 0 0 0 0 0
J9065110A
TAPE GUIDE ASS'Y
0 0 1 0 0 0 0 0
J9065091A
REEL ARM PLATE ASS'Y
1 1 1 1 1 1 1 1
J9065092A
STOPPER ASS'Y
1 1 1 1 1 1 1 1
J9065111A
TAKE UP REEL PLATE ASS'Y
0 0 1 0 0 0 0 0
J9065112A
MANUAL LEVER ASS'Y
0 0 1 1 1 1 1 1
J9065113A
REEL WIND LEVER ASS'Y
0 0 1 1 1 1 1 1
J9065099A
PLANET GEAR ASS'Y
3 3 1 1 1 1 1 1
J9065100A
PLANET LEVER ASS'Y
1 1 1 1 1 1 1 1
J9065114A
FORMING GEAR ASS'Y
0 0 1 1 1 1 1 1
J9065103A
LOCKER ASS'Y
1 1 1 1 1 1 1 1
REMARKNO. PART NO. PART NAME TYPE
- D-15 -
