0603P 1005P 1005N 8mm-P 8mm-N 8mm-N(E) 1 J7000773 SPROCKET ASS'Y 1 1 1 1 1 1 4mm Pitch J8100120A SPROCKET ASS'Y 1 1 1 1 1 1 2mm Pitch 2 J8100123A TAPE GUIDE ASS'Y 0 0 0 0 1 1 3 J7000775 PUSHER LEVER ASS&ap…

100%1 / 241
0603P 1005P 1005N 8mm-S 8mm-P 8mm-N 8mm-N(E)
35
J1500377
UNIVERSAL BUSH
1t, 235L
36 J2500004
TAPE GUIDE ROLLER SHAFT 1
TF08-006
37 J2500009
STEEL BALL SPRING
TF08-011
38 J2500010
LOCKER SHAFT
TF08-012
39 J2500016
PITCH PAWL
TF08-019R
40
J2500021
REAR BACKUP SPRING
TF08-025R1
41 J2500028
LEVER CENTER SCREW
TF08-033
42 J2500036
FEEDING SPRING GUIDE
TF08-042R
43 J2500037
FEEDING SPRING BRACKET
TF08-043
44 J2500038
CLAMP LEVER
TF08-044
45 J2500039
CLAMP SPRING
TF08-045
46 J2500040
CLAMP SPRING GUIDE
TF08-046
47 J2500043
MANUAL LEVER
TF08-050
48
49 J2500060
REEL ARM POST
TF08-067
50 J2500061 VINYL GUIDE ROLLER SHAFT 2
TF08-068R
51 J2500062 VINYL GUIDE ROLLER 2
TF08-069
52 J7065147B
TAPE COVER
J7065147B
53 J2500064
REWIND LINK SCREW
TF08-071
54 J2500066
TAPE GUIDE PLATE
TF08-073
55 J2500068
LOCATION PIN
TF08-075R
56 J2500078
RACHET PUSHER SPRING
TF08-030R
57 J2500457
PITCH PAWL SPRING
TF08-020J
P1005
J2500434
PITCH PAWL SPRING
TF08-020R2
P1608
58 J2500212
STOPPER PIN
TF08-028R1
59 J2500392
ECCENTRIC SHAFT
TF08-021R1
60
J2500393
BACKUP GUIDE
TF08-023R1
TYPE REMARK
8mm P-Pneumatic Feeder
NO. PART NO. PART NAME
Q'TY
A - 22
0603P 1005P 1005N 8mm-P 8mm-N 8mm-N(E)
1
J7000773 SPROCKET ASS'Y 1 1 1 1 1 1
4mm Pitch
J8100120A SPROCKET ASS'Y 1 1 1 1 1 1
2mm Pitch
2
J8100123A TAPE GUIDE ASS'Y 0 0 0 0 1 1
3
J7000775
PUSHER LEVER ASS'Y
1 1 1 1 1 1
4
J7000776
SHUTTER LEVER ASS'Y
1 1 1 1 1 1
5
J7000777
RACHET PUSHER ASS'Y
0 0 0 1 1 1
6
J7000778
REEL WIND CLANK ASS'Y
1 1 1 1 1 1
7
J7000779
MANUAL LEVER LINK ASS'Y
1 1 1 1 1 1
8
J7000776
REWIND LINK ASS'Y
1 1 1 1 1 1
9
J8100129A
TAKE UP REEL PLATE ASS'Y
1 0 0 0 1 1
10
J7165144B
MAIN FRAME
1 1 1 0 1 1
J7165190C
MAIN FRAME
1 1 1 0 1 1 TF08-Q167 NST-08E-2P
J7165191C
MAIN FRAME
1 1 1 0 1 1 TF08-Q134E NST-08E-4P
11
J8100125A
CLAMP ARM ASS'Y
0 1 1 0 1 1 RED 2mm Pitch
J8100126A
CLAMP ARM ASS'Y
0 0 0 0 1 1 BLUE 4mm Pitch
12
J8100127A
CLAMP BAR ASS'Y
1 1 1 0 1 1
13
J8100128A
FORMING BRAKET ASS'Y
1 1 1 0 1 1
14
J8100130A
REEL ARM PLATE ASS'Y
0 0 0 0 1 1
J8100131A
REEL ARM PLATE ASS'Y
0 0 0 0 1 1 Non Stop L Type
15
J8100124A
SPRING BRAKET ASS`Y
1 1 1 0 1 1
16
J8100133A
POCKET ASS`Y
0 0 1 0 1 1 2mm Pitch
J8100132A
POCKET ASS`Y
0 0 0 0 0 1 4mm Pitch
18
J7265088B
IDLER GEAR
TF08-Q112R
19
J7265089B
DRAIN GEAR-L
TF08-Q113R
20
J1301152
SPRING PIN
PHI2*8 (SUS)
21
J600430035
FLAT HEAD CAP SCREW
M3*3 (SUS)
TYPE REMARK

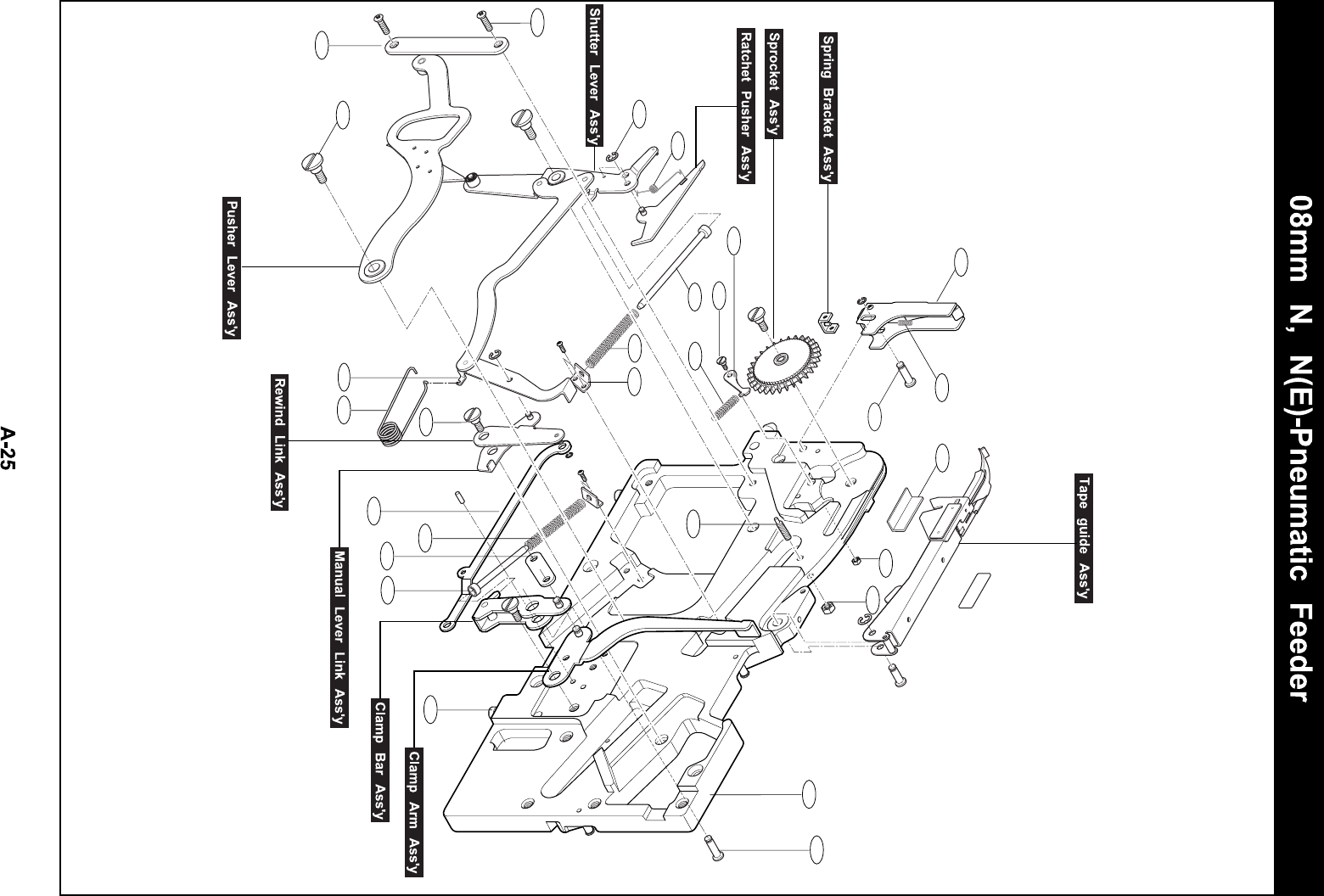

8mm N, N(E)-Pneumatic Feeder
NO. PART NO. PART NAME
Q'TY
A - 27
56
10
80
45
79
44
47
40
46
63
71
57
34
23
58
42
66
41
61
38
59
60
77
37
67
30
33
24
