56mm S-Pneumatic Feeder Q'TY 8mm-S 8mm-P 12mm-S 16mm-S 24mm-S 32mm-S 44mm-S 44mm-L 56mm 1 J7000793 TAPE GUIDE ASS'Y 0 0 0 0 0 0 0 0 1 2 J7000386 SPROCKET 2 ASS'Y 0 0 0 0 0 1 1 1 1 3 J7000799 SPROCKET ASS&a…
42
49
31
48
37
30
64
75
76
39
70
40
32
38
26
35
23
68
33
69
22
25
36
73
63
35
25

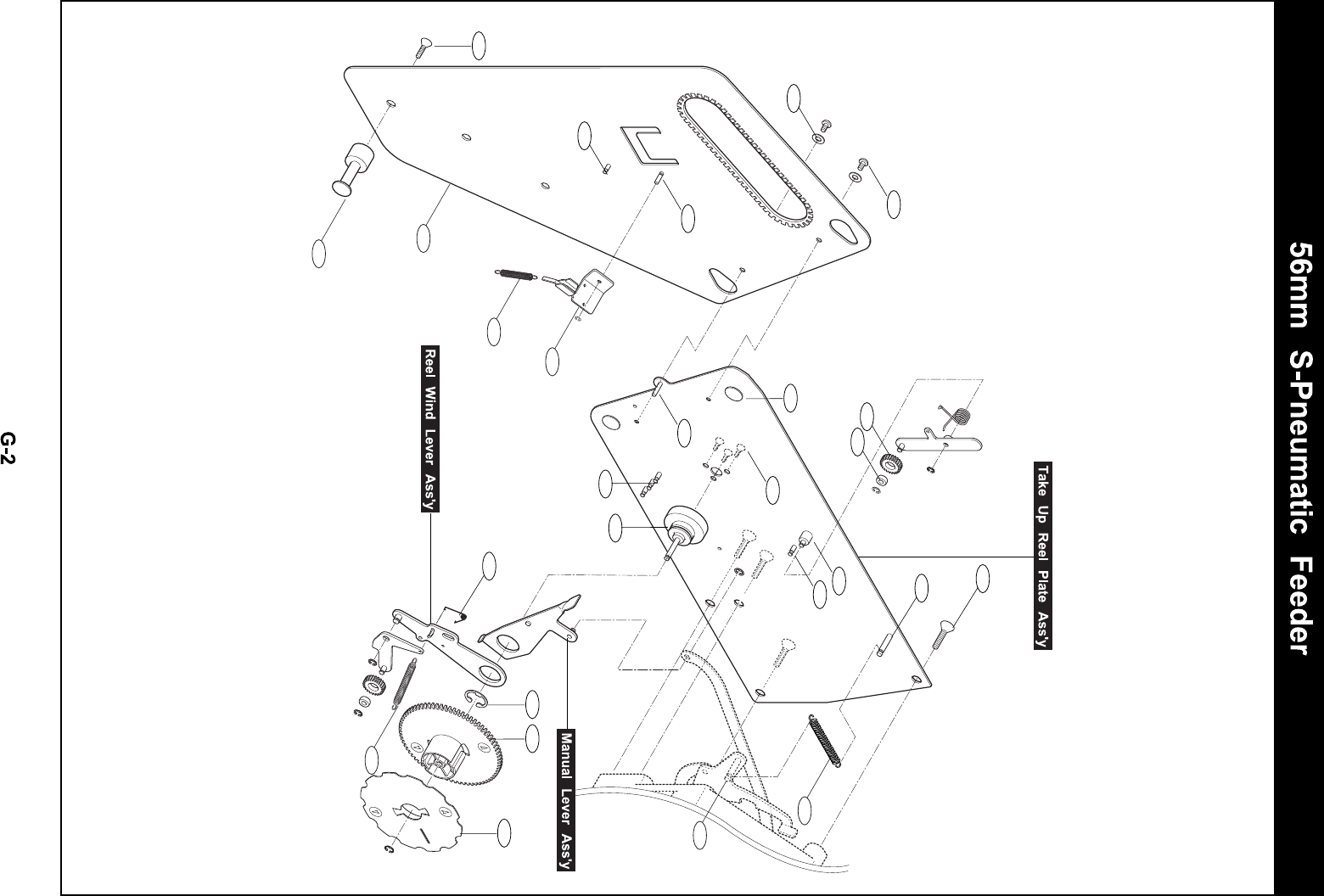

56mm S-Pneumatic Feeder
Q'TY
8mm-S 8mm-P 12mm-S 16mm-S 24mm-S 32mm-S 44mm-S 44mm-L 56mm
1
J7000793 TAPE GUIDE ASS'Y 0 0 0 0 0 0 0 0 1
2
J7000386 SPROCKET 2 ASS'Y 0 0 0 0 0 1 1 1 1
3
J7000799 SPROCKET ASS'Y 0 0 0 0 0 0 0 0 1
4
J7000805
PUSHER LEVER ASS'Y
0 0 0 0 0 0 0 0 1
5
J7000809
REEL WIND LEVER ASS'Y
0 0 1 1 1 1 1 1 1
6
J7000813
PITCH LINK ASS'Y
0 0 0 0 0 1 1 1 1
7
J7000814
MANUAL LEVER ASS'Y
0 0 1 1 1 1 1 1 1
8
J7000816
CLAMP LEVER 1 ASS'Y
0 0 0 0 1 1 1 1 1
9
J7000824 SPROCKET LEVER ASS'Y 0 0 0 0 0 0 0 0 1
10
J7000827
CROSS LEVER ASS'Y
0 0 0 0 1 1 1 1 1
11
J7000829
CROSS LEVER LINK ASS'Y
0 0 0 0 1 1 1 1 1
12
J7000832
REWIND LEVER ASS'Y
0 0 0 0 1 1 1 1 1
13
J7000835
LINK 2 ASS'Y
0 0 0 0 1 1 1 1 1
14
J7000889
TAKE UP REEL PLATE ASS'Y
0 0 0 0 0 0 0 0 1
15
J7000892
REEL ARM PLATE ASS'Y
0 0 0 0 0 0 0 0 1
16
CLAMP LEVER 2 ASS'Y
0 0 0 0 0 0 0 0 1
17
18
19
20
21
J1300870
FLAT WASHER
M4(SUS)
22
J1301025
E-RING
DIA12 (SUS)
23
J1301154
FLAT WASHER
M3 (SUS)
24
J1301155
STEEL BALL
DIA4 (NSK)
25
J1301157
FLAT HEAD CAP SCREW
M4*10 (SUS)
26
J1301222
FLAT HEAD CAP SCREW
M3*4 (SUS)
27
J1301225
SPRING WASHER
M4(SUS)
REMARKNO. PART NO. PART NAME TYPE
- G-3 -
56mm S-Pneumatic Feeder
Q'TY
8mm-S 8mm-P 12mm-S 16mm-S 24mm-S 32mm-S 44mm-S 44mm-L 56mm
28
J1301226
C-RING (SHAFT)
DIA12 (SUS)
29
J1301304
HEX NUT
M4(SUS)
30
J1301308
TENSION SPRING
AWS5-30
31
J1301309
CLAMP SPRING
E658 (ULTRA
32
J1301448
FLAT HEAD CAP SCREW
M3*6 (SUS)
33
J1301606
BEARING
FC-4K (NSK)
34
J2500009
STEEL BALL SPRING
TF08-011
35
J2500024
SPRING HOOK PIN
TF08-029
36
J2500058
REEL PLATE PIN
TF08-065
37
J2500158
TAPE BRAKE
TF12-020
38
J2500159
TAPE BRAKE SHAFT
TF12-021
39
J2500160
SPRING HOOK PIN
TF12-022
40
J2500172
RELEASE PIN
TF12-094
41
J2500175
BACKUP GUIDE SCREW
TF44-017
42
J2500178
CLAMP SPRING PIN 2
TF44-045
43
J2500197
PUSHER LEVER BUSH
TF44-072
44
J2500198
FEEDING SPRING GUIDE
TF44-074
45
J2500199
BACKUP SPRING
TF44-084
46
J2500267
PITCH PAWL
TF44-028
47
J2500268
PUSHER LEVER 2
TF44-031
48
J2500273
CLAMP SPRING PIN 1
TF44-043
49
J2500274
REEL WIND PAWL SPRING
TF44-052R
50
J2500279
FEEDING SPRING
TF44-065R1
51
J2500280
TAPE COVER PLATE
TF44-067
52
J2500283
RATCHET PAWL SPRING
TF44-075
53
J2500285
STOPPER SPRING
TF44-085
54
J2500286
ECCENTRIC SHAFT
TF44-091R
REMARKNO. PART NO. PART NAME TYPE
- G-4 -
