32mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N

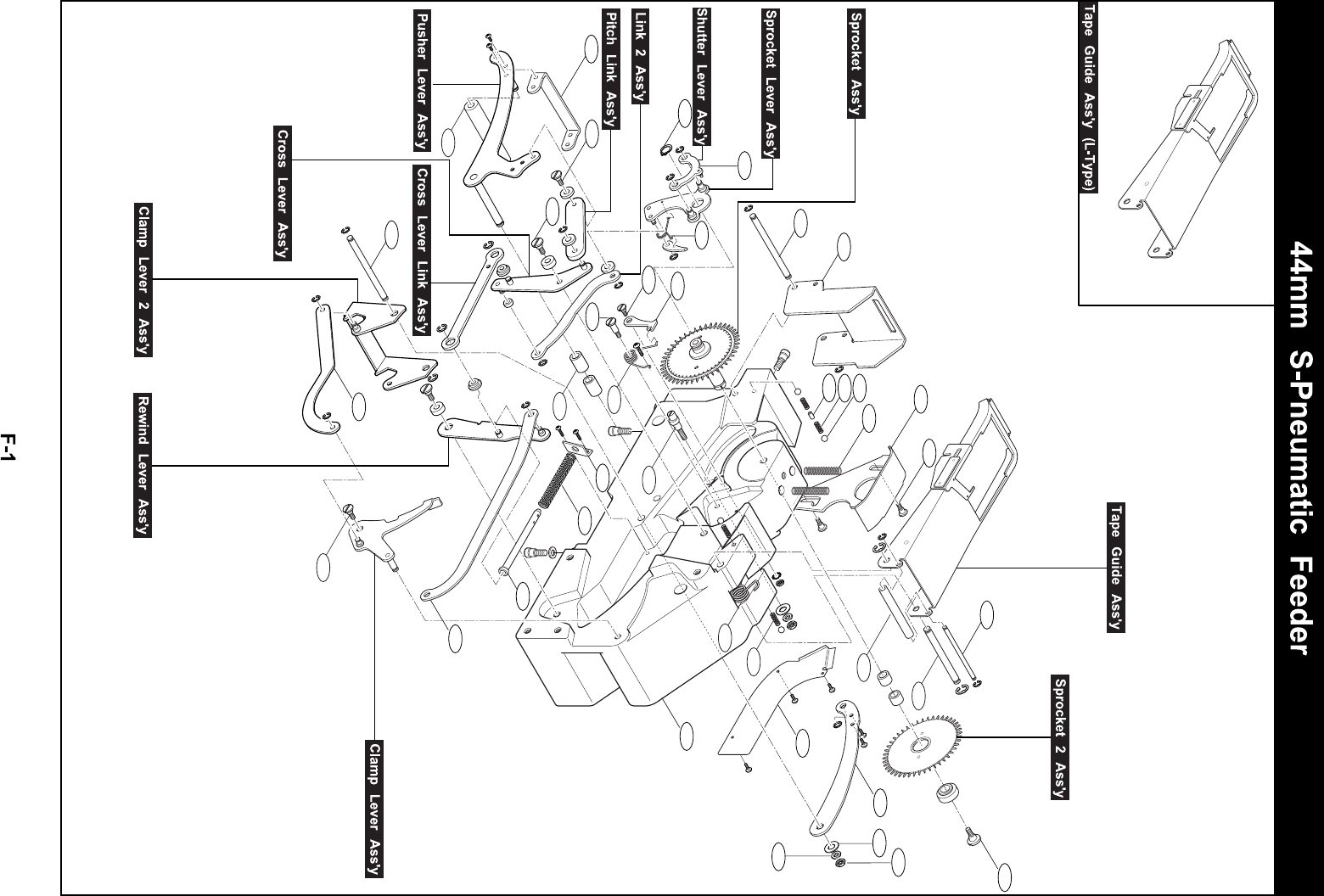

REWIND LEVER ASS'Y (J9065083A)
1 J7065322A REWIND LEVER
1 1 1 1 1 1 1 1
TF44-038
2 J7165106A BUSH 2
1 1 1 1 1 1 1 1
TF44-103R
3 J7065351A PIN 6
1 1 1 1 1 1 1 1
TF44-109R
4 J7065792A LINK PIN
1 1 1 1 1 1 1 1
TF12-N217
SPROCKET LEVER ASS'Y (J9065107A)
1
J7065745A
SPROCKET LEVER
1 1 1 1 1 1 1 1
TF16-030R
2
J7065768A
SHUTER LEVER PIN
1 1 1 1 1 1 1 0
TF16-056
3
J7065354A
PIN 1
1 1 1 1 1 1 1 1 TF16-052
4
J7065312A
RATCHET LEVER PAWL PIN
1 1 1 1 1 1 1 1 TF12-121R1
MANUAL LEVER ASS'Y (J9065112A)
1
J7065845A MANUAL LEVER 0 0 1 1 1 1 1 1
TF24-N233R
2
J7065152A PITCH CAM PIN 1 1 1 1 1 1 1 1
TF12-073
3
J7065792A LINK PIN 1 1 1 1 1 1 1 1
TF12-N217
REEL WIND LEVER ASS'Y (J9065113A)
1
J7065846A REEL WIND LEVER 0 0 1 1 1 1 1 1
TF24-N234R1
2
J7065792A LINK PIN 2 2 1 1 1 1 1 1
TF12-N217
FORMING GEAR ASS'Y (J9065114A)
1
J7265141B FORMING GEAR 0 0 1 1 1 1 1 1
TF24-N238R3
2
J6601125A BEARING 0 0 1 1 1 1 1 1
MR84ZZ
3
J6601105A ONE WAY BEARING 0 0 1 1 1 1 1 1
HF 0406 KF A
PLANET GEAR ASS'Y (J9065099A)
1
J7265048A PLANET GEAR 3 3 1 1 1 1 1 1
TF08-100K
2
J6601105A ONE WAY BEARING 3 3 1 1 1 1 1 1
HF 0406 KF A
REMARKNO. PART NO. PART NAME TYPE
- E-27 -
32mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
TAKE UP REEL PLATE ASS'Y (J9065121A)
1
J7065842A
TAKE UP REEL PLATE
0 0 1 1 1 1 1 1
TF24-N201
2
J7065779A
SPRING HOOK PIN
4 4 3 3 3 3 3 3
TF12-N203
3
J7065806A
CLAMP SPRING PIN 2
1 1 1 1 1 1 1 1
TF12-N232
4
J7065781A
HINGE SHAFT
1 1 1 1 1 1 1 1
TF12-N205
5
J7065799A
STOPPER OUT PIN 2
1 1 1 1 1 1 1 1
TF12-N224
6
J7065871A
TAPE COVER GUIDE 2
0 0 0 1 1 0 0 0
TF32-N242R Deletion
7
J7065790A
TAPE COVER GUIDE PIN
4 4 2 2 2 2 2 2
TF12-N215 Deletion
8
J7065217A
RELEASE PIN
1 1 1 1 1 1 1 1
TF12-094
9
J7065801A
DAMPER SHAFT
1 1 1 1 1 1 1 1
TF12-N227
REEL ARM PLATE ASS'Y (J9065091A)
1
J7065778B REEL ARM PLATE 1 1 1 1 1 1 1 1
TF12-N202R2
2
J7065780A BUSH 1 1 1 1 1 1 1 1 1
TF12-N204
3
J7065183A SPRING HOOK PIN 2 2 2 2 2 2 2 2
TF12-022
4
J7065796A STOPPER IN PIN 2 1 1 1 1 1 1 1 1
TF12-N221
5
J7065812B TAPE BRAKE SHAFT 1 1 1 1 1 1 1 1
TF12-N247R
STOPPER ASS'Y (J9065092A)
1
J7065794B
STOPPER OUTTER
1 1 1 1 1 1 1 1 TF12-N219R1
2
J7065800A
STOPPER OUT RATCHET
1 1 1 1 1 1 1 1 TF12-N225
3
J7065798A
STOPPER OUT PIN 1
1 1 1 1 1 1 1 1 TF12-N223
4
J7065793A
STOPPER INNER
1 1 1 1 1 1 1 1 TF12-N218R
5
J7065795B
STOPPER IN PIN 1
2 2 2 2 2 2 2 2 TF12-N220R
6
J7065797A
STOPPER IN BUSH
1 1 1 1 1 1 1 1 TF12-N222
REMARKNO. PART NO. PART NAME TYPE
- E-28 -
