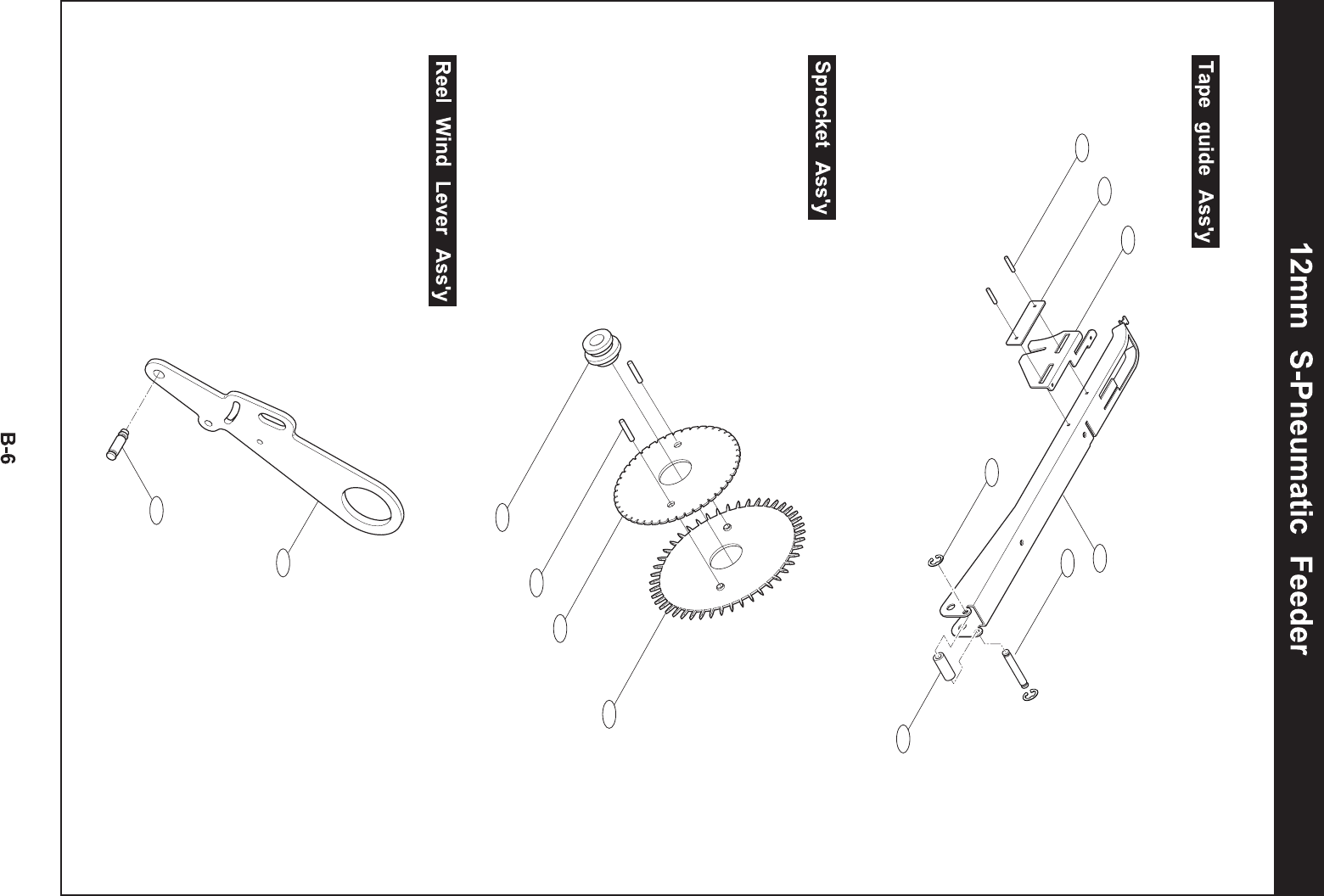

12mm S-Pneumatic Feeder
Q'TY
8mm-S 8mm-P 12mm-S 16mm-S 24mm-S 32mm-S 44mm-S 44mm-L 56mm
55
J2500160
SPRING HOOK PIN
TF12-022
56
J2500172
RELEASE PIN
TF12-094
57
J2500175
BACKUP GUIDE SCREW
TF44-017
58
J2500178
CLAMP SPRING PIN 2
TF44-045
59
J2500180
TAKE UP REEL SHAFT
TF12-049R
60
J7065203B
TAPE GUIDE SHAFT
J7065203B
61
J2500273
CLAMP SPRING PIN 1
TF44-043
62
J2500274
REEL WIND PAWL SPRING
TF44-052R
63
J2500354
FEEDING SPRING
TF12-037R
64
J2500355
PUSHER ROLLER
TF12-055R
65
J2500360
PITCH CHANGE SCREW
TF12-126R
66
J2500362
ECCENTRIC SHAFT 2
TF12-101R
67
J2500382
LEVER SHAFT 2
TF12-128R
68
J2500395
PITCH CHANGE SCREW
TF12-085R
69
J2500396
BACKUP SPRING GUIDE
TF12-083R
70
J2500448
PLANET GEAR
TF08-100K
71
J2500460
FIXED TAKE UP REEL
TF12-077K
72
J2500465
REEL PAWL SHAFT
TF12-044K
73
J2500477
STEEL BALL SPRING 2
TF12-080
74
J2500488
MAIN FRAME
TF12-001R2
75
J2500509
REMOVABLE TAKE UP REEL
TF12-076K
76
J7065176B
CLAMP LINK
J7065176B
77
J7065180B
REEL ARM PLATE
J7065180B
78
J7065188B
PUSHER LEVER 2
J7065188B
79
J7065189B
REWIND SPRING
TF12-032R
80
J7065208B
TAPE COVER
J7065208B
81
