12mm N-Pneumatic Feeder Q'TY 12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N J9065079A MAIN FRAME ASS'Y 1 1 0 0 0 0 0 0 J9065080A SPROCKET ASS'Y 1 1 1 0 0 0 0 0 J9065081A SPROCKET LEVER ASS&apo…
- 2 -
31
22
24
19
18
21
34
44
6
37
25
17
7
8
9

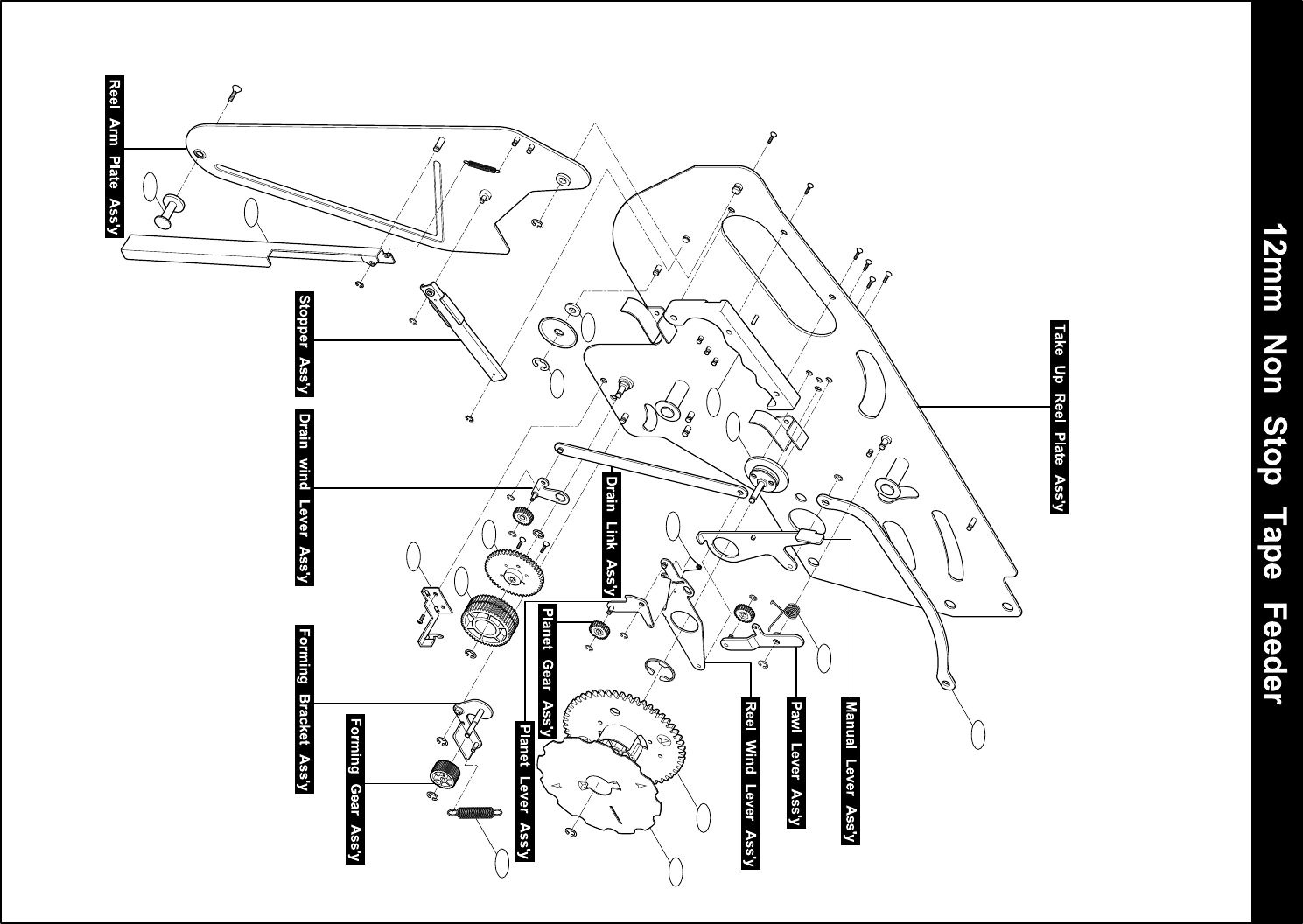

12mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
J9065079A MAIN FRAME ASS'Y 1 1 0 0 0 0 0 0
J9065080A
SPROCKET ASS'Y
1 1 1 0 0 0 0 0
J9065081A
SPROCKET LEVER ASS'Y
1 1 0 0 0 0 0 0
J9065082A
CROSS LEVER ASS'Y
1 1 1 1 1 1 1 1
J9065083A
REWIND LEVER ASS'Y
1 1 1 1 1 1 1 1
J9065084A
LINK 2 ASS'Y
1 1 1 1 1 1 1 1
J9065085A
CLAMP LEVER 1 ASS'Y
1 1 1 1 1 1 1 1
J9065086A
CROSS LEVER LINK ASS'Y
1 1 1 1 1 1 1 1
J9065087A
PITCH LINK ASS'Y
1 1 1 1 1 1 1 1
J9065140A PUSHER LEVER 2 ASS'Y 1 1 0 0 0 0 0 0
J9065089A
CLAMP LEVER 2 ASS'Y
1 1 0 0 0 0 0 0
J9065090A
TAPE GUIDE ASS'Y
1 0 0 0 0 0 0 0
J9065091A
REEL ARM PLATE ASS'Y
1 1 1 1 1 1 1 1
J9065092A
STOPPER ASS'Y
1 1 1 1 1 1 1 1
J9065093A
TAKE UP REEL PLATE ASS'Y
1 0 0 0 0 0 0 0
J9065094A
MANUAL LEVER ASS'Y
1 1 0 0 0 0 0 0
J9065095A
REEL WIND LEVER ASS'Y
1 1 0 0 0 0 0 0
J9065096A
DRAIN LINK ASS'Y
1 1 0 0 0 0 0 0
J9065097A
DRAIN WIND LEVER ASS'Y
1 1 0 0 0 0 0 0
J9065098A
PAWL LEVER ASS'Y
1 1 0 0 0 0 0 0
J9065099A
PLANET GEAR ASS'Y
3 3 1 1 1 1 1 1
J9065100A
PLANET LEVER ASS'Y
1 1 1 1 1 1 1 1
J9065101A
FORMING BRACKET ASS'Y
1 1 0 0 0 0 0 0
J9065102A
FORMING GEAR ASS'Y
1 1 0 0 0 0 0 0
J9065103A
LOCKER ASS'Y
1 1 1 1 1 1 1 1
REMARKNO. PART NO. PART NAME TYPE
- B-15 -
12mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
1
J7265130A VINYL GUIDE ROLLER
TF12-N012
2
J7065748A
VINYL GUIDE ROLLER SHAFT TF12-N011
3
J7065747A
TAPE GUIDE SHAFT TF12-N009
4
J7065750A
LOCKER SHAFT TF12-N014R1
5
J7065767A
LOCKER SPACER TF12-N088
6
J7065809A
TAKE UP REEL SHAFT
TF12-N240
7
J7265135A
FIXED TAKE UP REEL
TF12-N248R
8
J7265070A
REMOVABLE TAKE UP REEL
TF12-076K
9
J7065810A
REEL ARM POST
TF12-N241
10
J7065751A TAPE SUPPORT TF12-N016R2
11
J7065752A
TAPE SUPPORT SCREW
TF12-N017
12
J7065763A
FEEDING SPRING BRACKET
TF12-N073R2
13
J7065764A
PITCH CHANGE SCREW
TF12-N077R2
14
J7065769A
ECCENTRIC SHAFT 2
TF12-N101
15
J7065775B
TAPE GUIDE PLATE
TF12-N139R
16
J7065776B
TAPE COVER PLATE
TF12-N140R3
17
J7065936A
TAPE BRAKE
TF12-N209R1
18
J7265131A
DAMPER
TF12-N226R
19
J7065802A
DAMPER WASHER
TF12-N228R
20
J7065804C
REEL GUIDE
TF12-N230R1
21
J7065805A
HOOK LINK
TF12-N231
22
J7265132A
DRAIN GEAR-L
TF12-N235
23
J7065813A
REWIND SPRING
TF12-N252R2
24
J7065814A
DRAIN BRACKET
TF12-N253
25
J7265136B
HANDLE
TF12-N257R3
26
J7065819B
CLAMP LEVER PIN
TF16-N041R
27
J7065756A
PUSHER LEVER 1
TF12-N030R
REMARKNO. PART NO. PART NAME TYPE
