J9065285A TAPE GUIDE 56 ASSY SM1-MF56-019-03 56mm FEEDER
B
J7066303A TAPE GUIDE 72 SM1-MF72-019 72mm FEEDER
B
J7066277A LOCKER 56[SM1-MF56-025] SM1-MF56-025 56mm FEEDER
B
J7066296A LOCKER 72[SM1-MF72-025] SM1-MF72-025 72mm FEEDER
B
J9065259A SP SHAFT 56 RIVET ASSY SM1-MF56-002 56mm FEEDER
B
J9065263A SP SHAFT 72 RIVET ASSY SM1-MF72-002 72mm FEEDER
B
CS-4
J9065361A PUSHER LEVER SUB ASSY(C/S) J9065361A
C
CS-5
J9065360A SWING LEVER_LINK ASSY(CS) J9065360A
C
CS-6
J9065359A VINYL BOLCK ASSY(CS) J9065359A
C
CS-7
J9065357A CYLINDER 1630 ASSY(CS)
B
CS-7-1
J6702046A SOLENOID VALVE V114A-5MOU
B
CS-8
J9065352A PAWL LEVER GEAR ASS`Y(C/S) J9065352A
C
CS-8-1
J9065099A PLANET GEAR ASS`Y -
C
CS-9
J9065351A PLANET LEVER SUB ASSY
C
CS-10
J9065242A T LINK 2 ASSY SM1-MF32-030
C
J9065261A REEL HANGER 56 ASSY SM1-MF56-015 56mm FEEDER
D
J9065265A REEL HANGER 72 ASSY SM1-MF72-015 72mm FEEDER
D
CS-12
J9065350A REEL PLATE RIVET ASS`Y(C/S)
B
J7066281A REEL BRAKE 56 SM1-MF56-017
56mm FEEDER D
J7066300A REEL BRAKE 72 SM1-MF72-017
72mm FEEDER D
CS-14
J7265173A Remo Take up Reel-24 SM1-MF24-041-01
B
J9065260A REMO VINYL RING 56 SM1-MF56-041-02
56mm FEEDER C
J9065264A REMO VINYL RING 72 SM1-MF72-041-02
72mm FEEDER C
J7265151A FIXED TAKE UP REEL[TF56-N248R] TF56-N248R
56mm FEEDER C
J7265172A FIXED TAKE UP REEL 72[SM1-MF72-041] SM1-MF72-041
72mm FEEDER C
J7066289A GRIP ROLLOR 56 SM1-MF56-038-01
56mm FEEDER C
J7066308A GRIP ROLLOR 72 SM1-MF72-038-01
72mm FEEDER C
J7066287A ROLLOR SHAFT 56 SM1-MF56-037
56mm FEEDER C
J7066306A ROLLOR SHAFT 72 SM1-MF72-037
72mm FEEDER C
J7066288A VINYL ROLLOR 56 SM1-MF56-038
56mm FEEDER C
J7066307A VINYL ROLLOR 72 SM1-MF72-038
72mm FEEDER C
CS-17
CS-18
CS-19

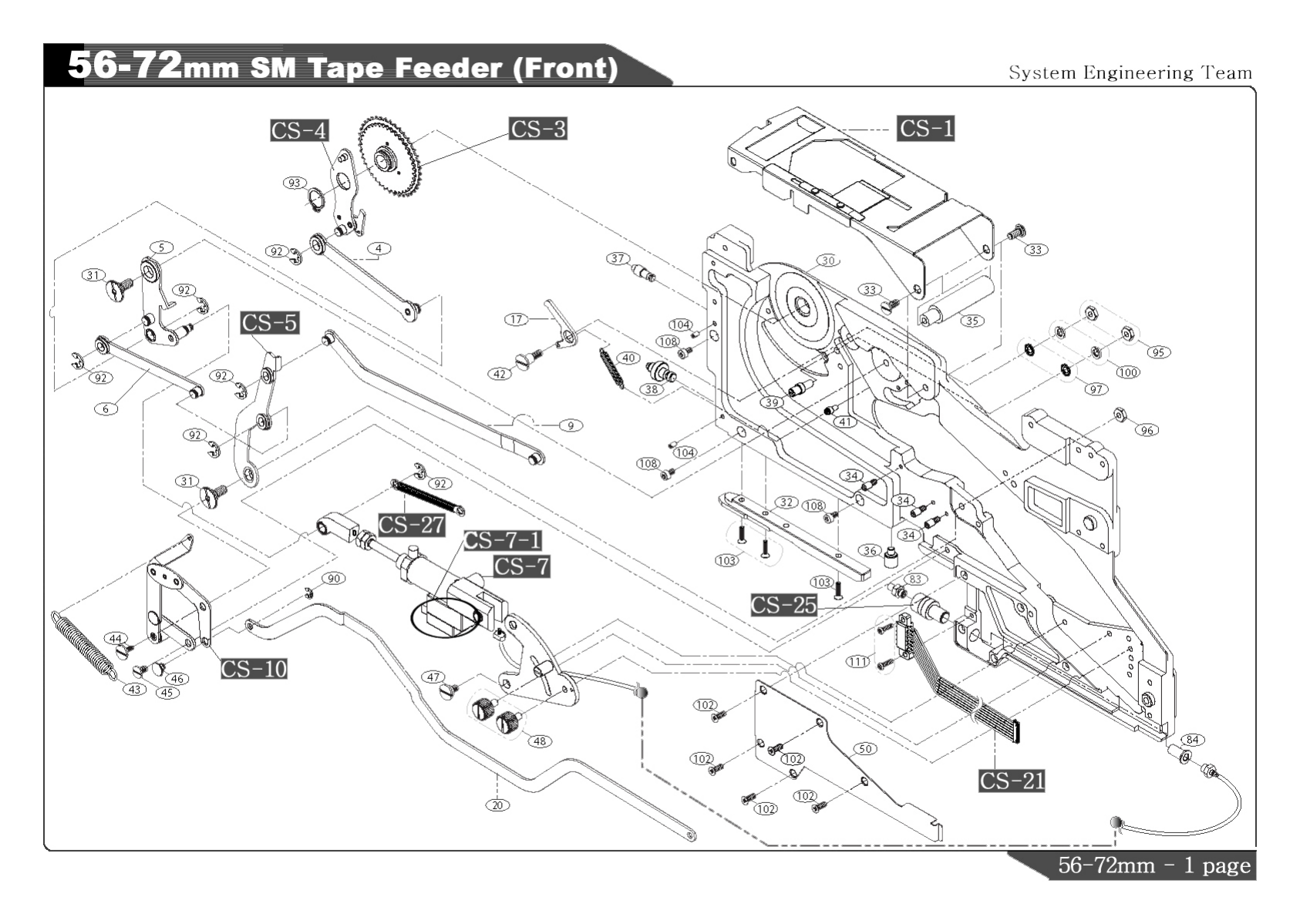

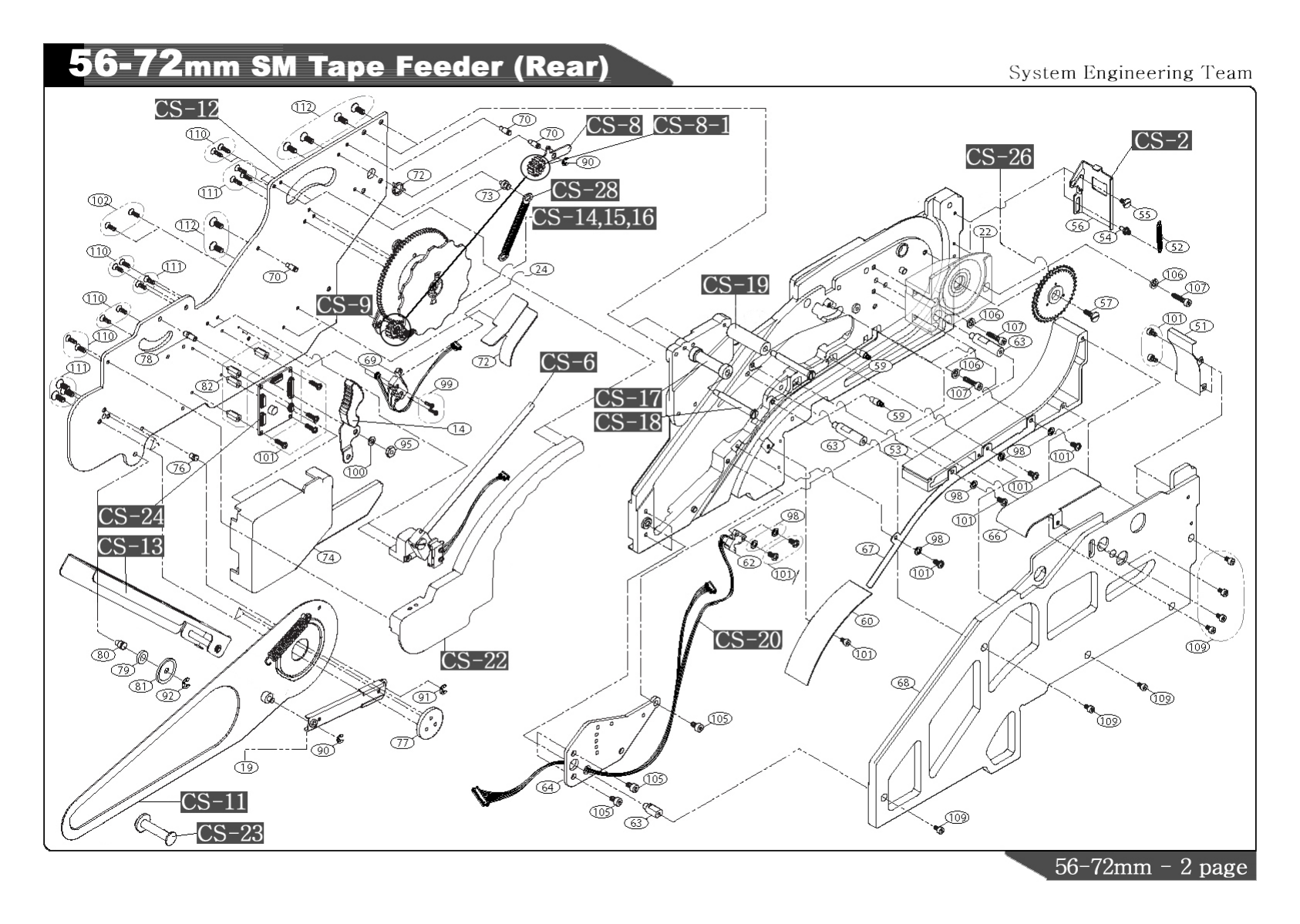

56-72mm SM Tape Feeder (Front, Rear) - CS PART
NO. PART NO. PART NAME TYPE REMARK
