44mm N-Pneumatic Feeder Q'TY 12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N 49 J9065106A SUB FRAME ASS'Y J9065106A 49-1 J7165259A SUB FRAME TF24-N002R2 49-2 J7165266A PUSHER LEVER BUSH 2 TF24-N072 …
44mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
28
J7265147B DRAIN GEAR
TF44-N236R3
29
J7065892A TAKE UP REEL SHAFT
TF44-N240
30
J7065893A
REEL ARM POST TF44-N241
31
J7065895B
COVER TAPE CHUTE TF44-N245R
32
J7265148A
FIXED TAKE UP REEL TF44-N248R
33
J7165278B
PAWL LEVER BLOCK TF44-N255R4
34
J7065888A
STAY BAR
TF44-N139
35
J7065926A
FEEDING SPRING
TF24-N065R2
36
J7065118A
LEVER CENTER SCREW
TF08-033
37
J7065176A
CLAMP LINK
TF12-014R
38
J7065234B RATCHET PAWL TF16-009R
39
J7065929A
PITCH PAWL
TF12-N028
40
J7065323A
HOOK LINK
TF44-039
41
J7065331A
REEL WIND PAWL SPRING
TF44-052R
42
J7065127A
FEEDING SPRING GUIDE
TF44-074
43
J7065340A
RATCHET PAWL SPRING
TF44-075
44
J7065530A
PITCH PAWL SPRING
TF08-020R1
45
J7065347A
ECCENTRIC SHAFT
TF44-091R
46
J7065350A
LEVER SHAFT 1
TF44-107R
47
J7065310A
SPROCKET FIXING SCREW
TF44-024
48
J9065122A MAIN FRAME ASS'Y J9065122A
48-1
J7165271A MAIN FRAME
TF32-N001R2
48-2
J7165277A SPROCKET SHAFT BLOCK
TF44-N141
48-3
J7165103A SPROCKET SHAFT BUSH
TF44-020
48-4
J7165260A PUSHER LEVER BUSH 1
TF12-N072
48-5
J7065151A LOCATION PIN
TF08-075R
48-6
J7065423A
LOCATION PIN TF08-075R1
48-7 J7065158A
PIN SPACER 2 TF08-093
REMARKNO. PART NO. PART NAME TYPE
- F-19 -

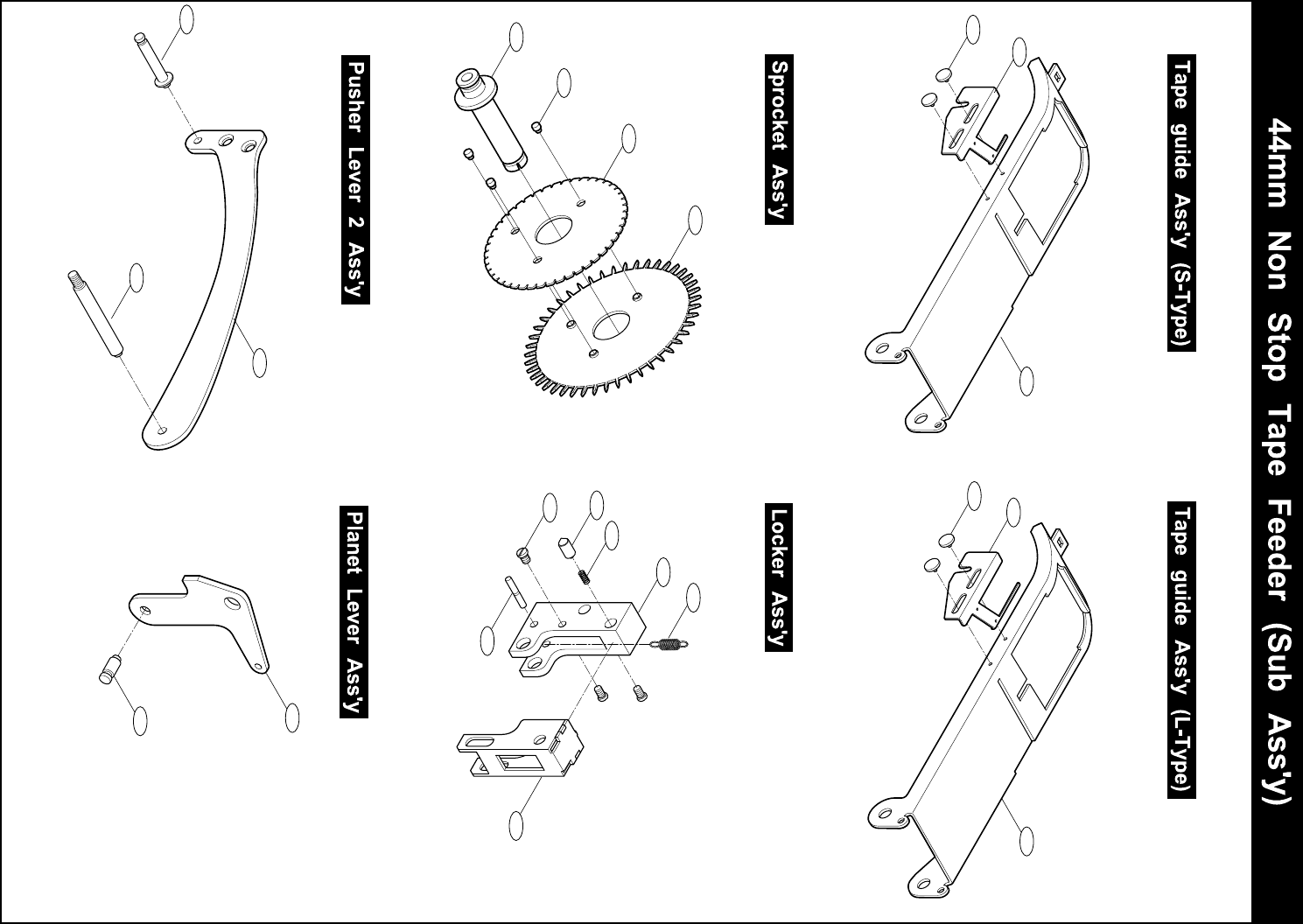

44mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
49
J9065106A
SUB FRAME ASS'Y J9065106A
49-1
J7165259A
SUB FRAME
TF24-N002R2
49-2
J7165266A
PUSHER LEVER BUSH 2
TF24-N072
50
J7065935A CHUTE BLADE
TF24-N254
J6107013A TENSION SPRING
AWS5-30
J6107014A CLAMP SPRING
E658
J6071200050
E-RING DIA2 (SUS)
J6071300050
E-RING DIA3 (SUS)
J6071400050
E-RING DIA4 (SUS)
J6071500050
E-RING DIA5 (SUS)
J607020050
E-RING
DIA12 (SUS)
J6073020050
C-RING(SHAFT)
DIA12 (SUS)
J6025300050
HEX NUT
M3 (SUS)
J6025400050
HEX NUT
M4 (SUS)
J6025500050 HEX NUT M5 (SUS)
J6042400050
FLAT WASHER
M4 (SUS)
J6042500050
FLAT WASHER
M5 (SUS)
J6043400050
SPRING WASHER
M4 (SUS)
J6043500050
SPRING WASHER
M5 (SUS)
J6044300050
STAR WASHER
M3 (SUS)
J6006300650
FLAT HEAD CAP SCREW
M3*6 (SUS)
J6006401050
FLAT HEAD CAP SCREW
M4*10 (SUS)
J6004300350
BUTTON HEAD CAP SCREW
M3*3 (SUS)
J6004303250
BUTTON HEAD CAP SCREW
M3*32 (SUS)
J6005402050
BUTTON HEAD CAP SCREW
M4*20 (SUS)
J6007300850
FLAT HEAD SOCKET SCREW
M3*8 (SUS)
J1301161
FLAT HEAD CAP SCREW
M2*3 (SUS)
REMARKNO. PART NO. PART NAME TYPE
- F-20 -
