12mm N-Pneumatic Feeder Q'TY 12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N TAPE GUIDE ASS'Y (J9065090A) 1 J7065746B TAPE GUIDE 1 0 0 0 0 0 0 0 TF12-N008R 2 J7065765A SHUTTER 1 0 0 0 0 0 0 0 TF12-N…
- 11 -

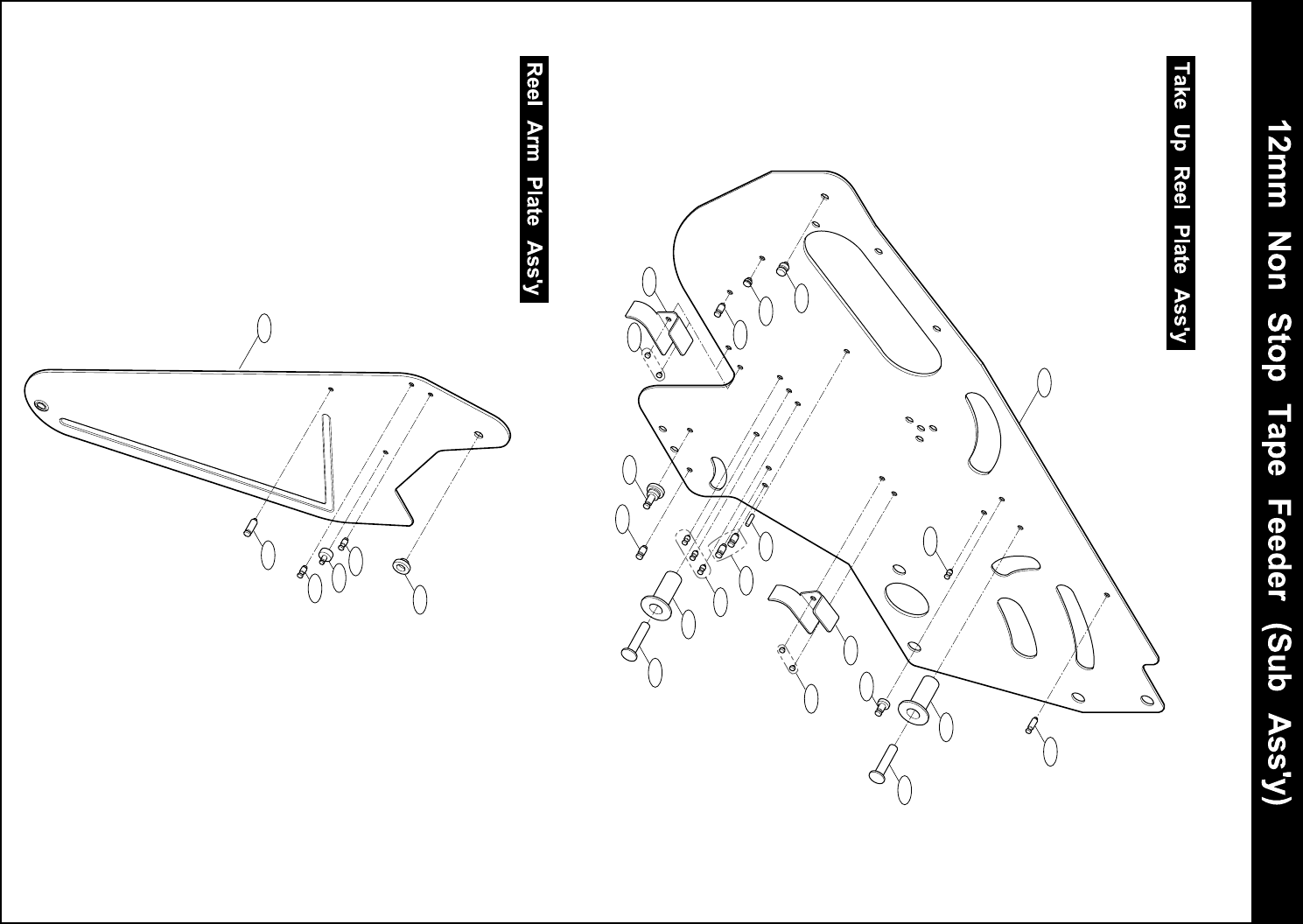

1
1
2
4
5
3
10
3
9
3
10
9
7
8
11
2
15
5
6
14
13
12
7
29
4
2
12mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
TAPE GUIDE ASS'Y (J9065090A)
1 J7065746B TAPE GUIDE
1 0 0 0 0 0 0 0
TF12-N008R
2 J7065765A SHUTTER
1 0 0 0 0 0 0 0
TF12-N085
3 J7065766A SHUTTER RIVET PIN
2 2 2 2 2 2 2 0
TF12-N086
SPROCKET ASS'Y (J9065080A)
1
J7065753A
SPROCKET
1 1 1 1 1 1 1 1 TF12-N021
2
J7065754A
RATCHET
1 1 1 1 1 1 1 1 TF12-N022R2
3
J7065091A
RATCHET RIVET PIN
3 3 3 3 3 3 3 3 TF08-018
4
J7165093A
SPROCKET SHAFT BUSH
1 1 1 0 0 0 0 0 TF12-060R
LOCKER ASS'Y (J9065103A)
1
J7065749C LOCKER 1 1 1 1 1 1 1 1
TF12-N013R1
2
J7165263B LOCKER BLOCK 1 1 1 1 1 1 1 1
TF12-N135R
3
J7065772A LOCKER SCREW 3 3 3 3 3 3 3 3 TF12-N136
4
J7065774A LOCKER SPRING 1 1 1 1 1 1 1 1 TF12-N138
5
J7065773A LOCKER SPRING PIN 1 1 1 1 1 1 1 1 TF12-N137
6
J7065942A LOCKER STOPPER 1 1 1 1 1 1 1 1 TF12-N150
7
J7065943A LOCKER STOP SPRING 1 1 1 1 1 1 1 1 TF12-N151
PUSHER LEVER 2 ASS'Y (J9065140A)
1 J7065835A PUSHER LEVER 2
1 1 1 1 1 1 1 1
TF24-N031
2 J7065755A PUSHER LEVER SHAFT
1 1 0 0 0 0 0 0
TF12-N029R
3 J7065924A PUSHER ROLLER SHAFT
1 1 0 0 0 0 0 0
TF12-N032
PLANET LEVER ASS'Y (J9065100A)
1
J7065228A PLANET LEVER 1 1 1 1 1 1 1 1
TF12-151K
2
J7065788A GEAR SHAFT 1 1 1 1 1 1 1 1 1
TF12-N213
REMARKNO. PART NO. PART NAME TYPE
- B-24 -
12mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
LINK 2 ASS'Y (J9065084A)
1
J7065758A LINK 2 1 1 1 1 1 1 1 1
TF12-N036R
2
J7165262A BUSH 11 1 1 1 1 1 1 1 1
TF12-N134R
3
J7165107A BUSH 4 1 1 1 1 1 1 1 1
TF44-104R
PITCH LINK ASS'Y (J9065087A)
1 J7065757A PITCH LINK
1 1 1 1 1 1 1 1
TF12-N035
2 J7165261A BUSH 10
2 2 2 2 2 2 2 2
TF12-N131R
CLAMP LEVER 1 ASS'Y (J9065085A)
1
J7065760A
CLAMP LEVER 1
1 1 1 1 1 1 1 1 TF12-N067
2
J7065325A
CLAMP SPRING PIN 1
1 1 1 1 1 1 1 1 TF44-043
3
J7065186A
PIN 7
1 1 1 1 1 1 1 1 TF12-028R
CLAMP LEVER 2 ASS'Y (J9065089A)
1 J7065820B CLAMP LEVER 2
1 1 0 0 0 0 0 0
TF16-N068R
2 J7065186A PIN 7
1 1 1 1 1 1 1 1
TF12-028R
CROSS LEVER ASS'Y (J9065082A)
1 J7065762B CROSS LEVER
1 1 1 1 1 1 1 1
TF12-N069R
2 J7065351A PIN 6
1 1 1 1 1 1 1 1
TF44-109R
3 J7065771A PIN 11
1 1 1 1 1 1 1 1
TF12-N133
4 J7065770A PIN 12
1 1 1 1 1 1 1 1
TF12-N132
5 J7165106A BUSH 2
1 1 1 1 1 1 1 1
TF44-103R
CROSS LEVER LINK ASS'Y (J9065086A)
1
J7065321B
CROSS LEVER LINK
1 1 1 1 1 1 1 1
TF44-037R2
2
J7165110A
BUSH 7
2 2 2 2 2 2 2 2
TF44-108R
REMARKNO. PART NO. PART NAME TYPE
- B-25 -
