CP,SM Tape Feeder Total CS Manual(V200603).pdf - 第119页
- 4 2 - 2 3 1 5 6 4 1 2 4 5 3 3 1 3 2 8 4 5 9

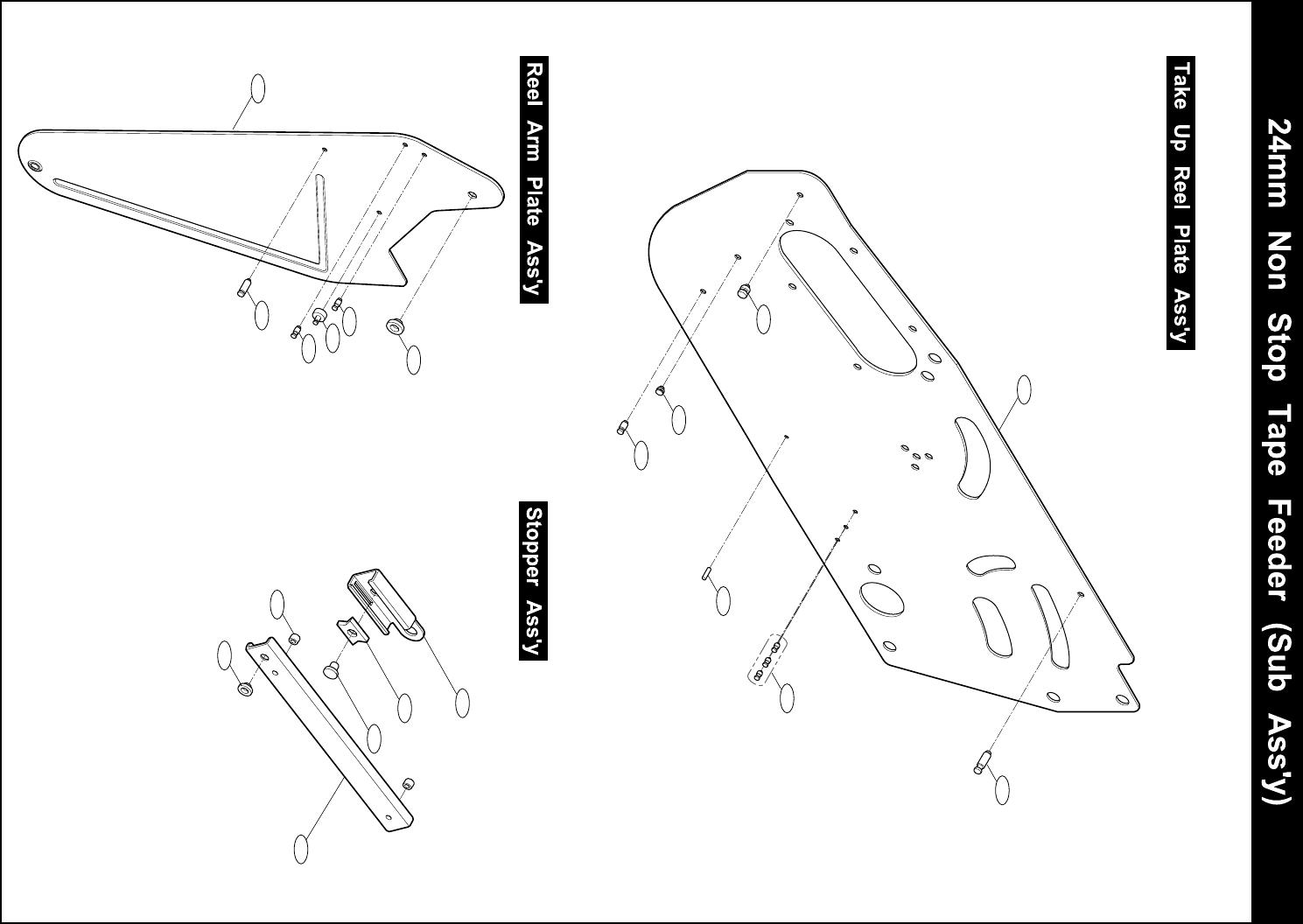

- 41 -
4
3
2
1
1
2
3
1
4
2
3
1
2
1
2
1
2
3

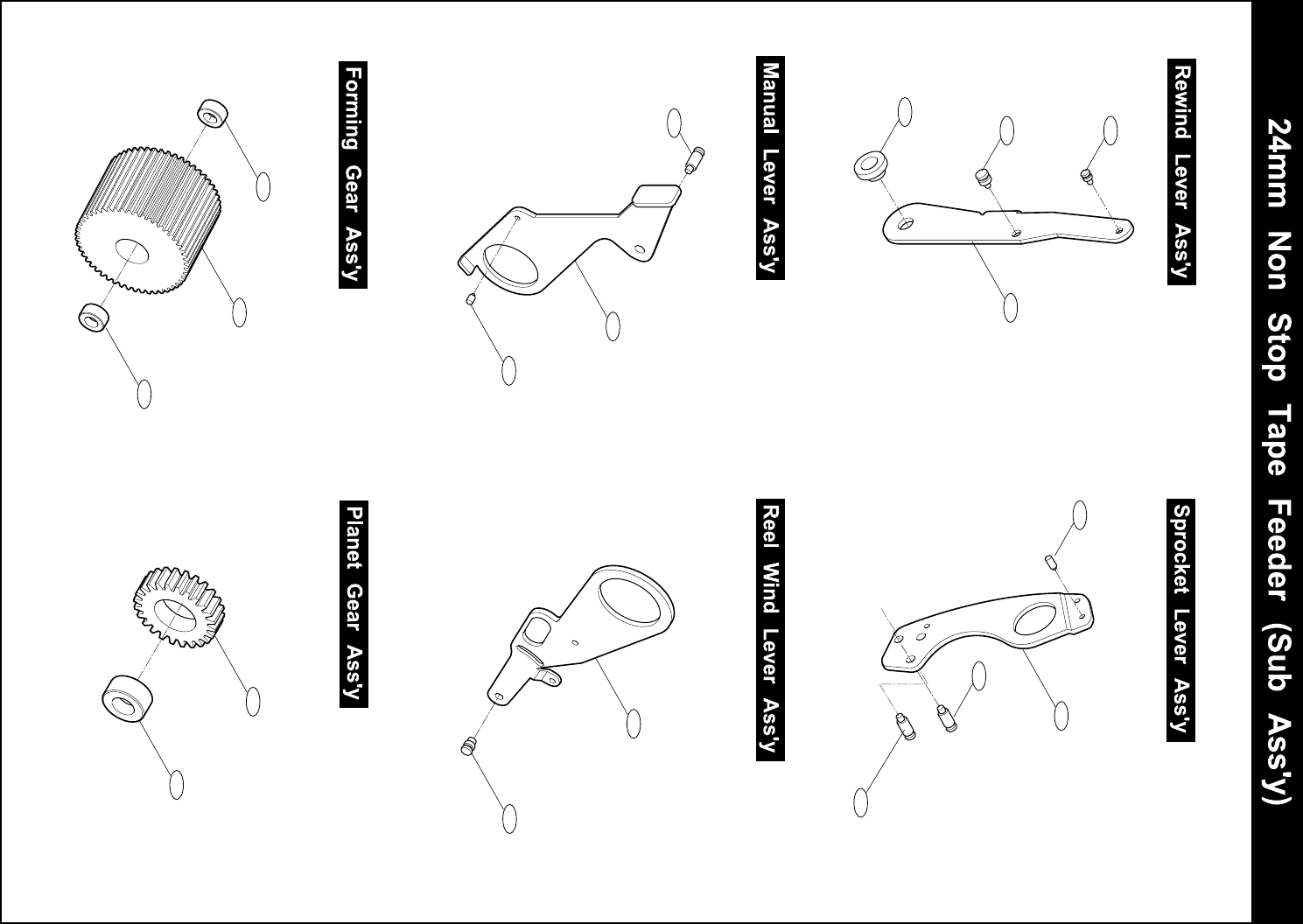

- 42 -
2
3
1
5
6
4
1
2
4
5
3
3
1
3
2
8
4
5
9
24mm N-Pneumatic Feeder
Q'TY
12mm-N 16mm-N 24mm-N 32mmN-S 32mmN-L 44mmN-S 44mmN-L 56mm-N
TAPE GUIDE ASS'Y (J9065110A)
1 J7065828B TAPE GUIDE
0 1 0 0 0 0 0 0
TF24-N008R1
2 J7065840A SHUTTER
0 1 0 0 0 0 0 0
TF24-N085
3 J7065766A SHUTTER RIVET PIN
2 2 2 2 2 2 2 0
TF12-N086
SPROCKET ASS'Y (J9065080A)
1
J7065753A
SPROCKET
1 1 1 1 1 1 1 1 TF12-N021
2
J7065754A
RATCHET
1 1 1 1 1 1 1 1 TF12-N022R2
3
J7065091A
RATCHET RIVET PIN
3 3 3 3 3 3 3 3 TF08-018
4
J7165093A
SPROCKET SHAFT BUSH
1 1 1 0 0 0 0 0 TF12-060R
LOCKER ASS'Y (J9065103A)
1
J7065749C LOCKER 1 1 1 1 1 1 1 1
TF12-N013R1
2
J7165263B LOCKER BLOCK 1 1 1 1 1 1 1 1
TF12-N135R
3
J7065772A LOCKER SCREW 3 3 3 3 3 3 3 3 TF12-N136
4
J7065774A LOCKER SPRING 1 1 1 1 1 1 1 1 TF12-N138
5
J7065773A LOCKER SPRING PIN 1 1 1 1 1 1 1 1 TF12-N137
6
J7065942A LOCKER STOPPER 1 1 1 1 1 1 1 1 TF12-N150
7
J7065943A LOCKER STOP SPRING 1 1 1 1 1 1 1 1 TF12-N151
PUSHER LEVER 2 ASS'Y (J9065108A)
1 J7065835A PUSHER LEVER 2
1 1 1 1 1 1 1 1
TF24-N031
2 J7065833A PUSHER LEVER SHAFT
0 0 1 0 0 0 0 0
TF24-N029R
3 J7065836A PUSHER ROLLER SHAFT
0 0 1 0 0 0 0 0
TF24-N032R
PLANET LEVER ASS'Y (J9065100A)
1
J7065228A PLANET LEVER 1 1 1 1 1 1 1 1
TF12-151K
2
J7065788A GEAR SHAFT 1 1 1 1 1 1 1 1 1
TF12-N213
REMARKNO. PART NO. PART NAME TYPE
- D-23 -
