0603P 1005P 1005N 8mm-P 8mm-N 8mm-N(E) 74 J7265076B PLANET LEVER TF08-102KA1 75 J7065423A LOCATION PIN J7065423A 76 J7265087A FPRMING GEAR2 TF08-P120 77 J7065499A LOCKER SPRING TF08-Q148 J7065563A LOCKER SPRING TF08-Q163…
0603P 1005P 1005N 8mm-P 8mm-N 8mm-N(E)
49
50 J2500061 VINYL GUIDE ROLLER SHAFT 2
TF08-068R
51 J7265091B VINYL GUIDE ROLLER 2
TF08-Q115R
52 J7065147C
TAPE COVER
TF08-070R1
53 J2500064
REWIND LINK SCREW
TF08-071
54 J1301448
FLAT HEAD CAP SCREW
M3*6(SUS)
55 J2500067
REWIND SPRING
TF08-074
56 J2500068
LOCATION PIN
TF08-075R
57 J7065153B
PUSHER LEVER GUIDE
TF08-077R
58 J2500078
RACHET PUSHER SPRING
TF08-030R
59 J2500457
PITCH PAWL SPRING
TF08-020J
S1005
J2500434
PITCH PAWL SPRING
TF08-020R2
S1608
60 J2500212
STOPPER PIN
TF08-028R1
61 J2500392
ECCENTRIC SHAFT
TF08-021R1
62
63 J2500415
MANUAL LEVER SPRING
TF08-051R2
64 J2500416
PIN SPACER 2
TF08-093
65
66 J2500418
LEVER RETURN SPRING
TF08-041R1
67 J7065488C LOCKER TF08-Q137R1
68 J7265078B
FIXED TAKE UP REEL
TF08-062KA1
69 J7265046B
REMOVABLE TAKE UP REEL
TF08-063K1
70 J7065432A
DRAIN WIND PAWL SPRING
TF08-P55K
71
J2500407
LEVER CENTER SCREW
TF08-033R2
72 J7265075B PLANET GEAR B TF08-100KA1
73 J2500525
PLANET SPRING
TF08-104KA
TYPE REMARK

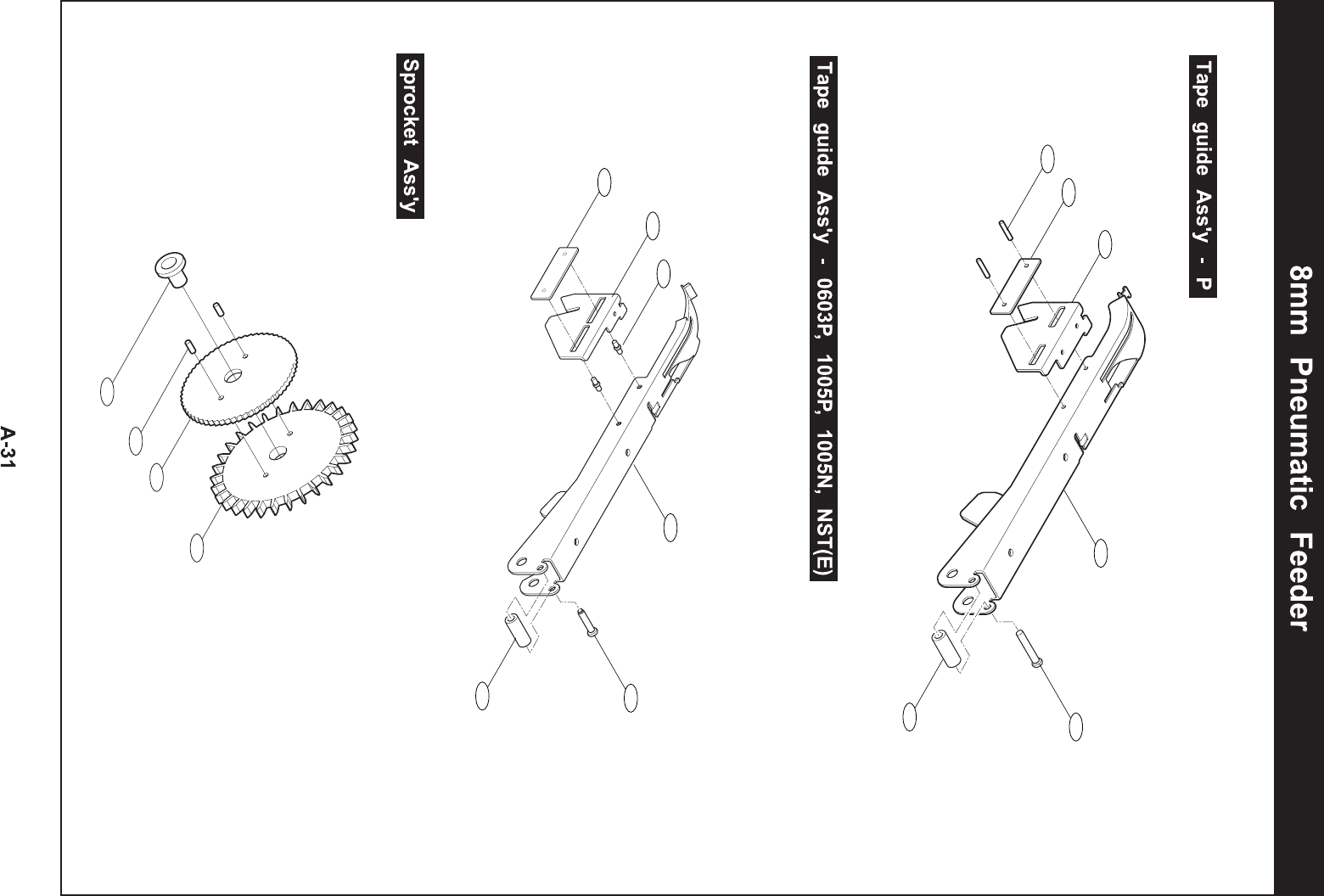

8mm N, N(E)-Pneumatic Feeder
NO. PART NO. PART NAME
Q'TY
A - 29
0603P 1005P 1005N 8mm-P 8mm-N 8mm-N(E)
74 J7265076B
PLANET LEVER
TF08-102KA1
75 J7065423A
LOCATION PIN
J7065423A
76 J7265087A
FPRMING GEAR2
TF08-P120
77 J7065499A
LOCKER SPRING
TF08-Q148
J7065563A
LOCKER SPRING
TF08-Q163
NST-08E-2P
J7065566A
LOCKER SPRING
TF08-Q164
NST-08E-4P
78
79 J7065497A
CLAMP LINK
TF08-Q146
80 J7065501A
CLAMP SHAFT
TF08-Q150
81
82 J7065502A
DRAIN PAWL SPRING
TF08-Q151
NST1005
J7065504A
DRAIN PAWL SPRING
TF08-Q153
NST08
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
TYPE REMARK
8mm N, N(E)-Pneumatic Feeder
NO. PART NO. PART NAME
Q'TY
A - 30
