44mm S-Pneumatic Feeder
Q'TY
8mm-S 8mm-P 12mm-S 16mm-S 24mm-S 32mm-S 44mm-S 44mm-L 56mm
REWIND LEVER ASS'Y (J7000832)
1 J2500271 REWIND LEVER
0 0 0 0 1 1 1 1 1
TF16-007R
2 J2500295 PIN 6
0 0 0 0 1 1 1 1 1
TF16-104
3 J2500231 PIN 7
0 0 0 0 1 1 1 1 1
TF16-102
4 J2500384 BUSH 2
0 0 0 0 1 1 1 1 1
TF44-026
CROSS LEVER LINK ASS'Y (J7000829)
1 J2500270 CROSS LEVER LINK
0 0 0 0 1 1 1 1 1
TF44-037R1
2 J2500389 BUSH 7
0 0 0 0 2 2 2 2 2
TF44-108R
SPROCKET LEVER ASS'Y (J7000824)
1 J2500235 SPROCKET LEVER
0 0 0 1 1 1 1 1 1
TF16-007R
2 J2500298 PIN 1
0 0 1 0 1 1 1 1 1
TF44-112R
3 J2500411 PIN 9
0 0 0 2 2 2 2 2 2
TF16-102
4 J2500176 RATCHET LEVER PAWL PIN
0 0 1 1 1 1 1 1 1
TF44-026
REEL WIND LEVER ASS'Y (J7000809)
1 J7065330B REEL WIND LEVER
0 0 1 1 1 1 1 1 1 J7065330B
2 J2500228 LINK PIN
0 0 1 1 1 1 1 1 1
TF08-049
SHUTTER LEVER ASS'Y (J7000885)
1 J2500237 SHUTTER LEVER
0 0 0 0 1 1 1 1 0
TF16-091R
2 J2500234 SHUTTER LEVER PIN
0 0 0 0 1 1 1 1 0
TF16-089
MANUAL LEVER ASS'Y (J7000814)
1 J7065329B MANUAL LEVER
0 0 1 1 1 1 1 1 1
J7065329B
2 J2500411 PIN9
0 0 1 1 1 1 1 1 1
TF16-102
3 J2500069 PITCH CAM PIN
0 0 1 1 1 1 1 1 1
TF08-076
REMARKNO. PART NO. PART NAME TYPE
- F-13 -
44mm S-Pneumatic Feeder
Q'TY
8mm-S 8mm-P 12mm-S 16mm-S 24mm-S 32mm-S 44mm-S 44mm-L 56mm
LINK 2 ASS'Y (J7000835)
1 J2500269 LINK 2
0 0 0 1 1 1 1 1 1
TF44-036R
2 J2500387 BUSH 5
0 0 0 1 1 1 1 1 1
TF44-105R
3 J2500386 BUSH 4
0 0 0 0 1 1 1 1 1
TF16-103
TAKE UP REEL PLATE ASS'Y (J7000888)
1 J7065327B
TAKE UP REEL PLATE
0 0 0 0 1 1 1 1 0 TF44-047R4
2 J2500024
SPRING HOOK PIN
0 0 3 4 5 5 5 5 0 TF08-029
3 J2500058
REEL PLATE PIN
0 0 2 2 2 2 2 2 0 TF08-065
4 J2500465
REEL PAWL SHAFT
0 0 1 1 1 1 1 1 0 TF12-044K
5 J2500178
CLAMP SPRING PIN 2
0 0 1 1 1 1 1 1 0 TF44-045
6 J2500172
RELEASE PIN
0 0 1 1 1 1 1 1 0 TF12-094
REMARKNO. PART NO. PART NAME TYPE
- F-14 -

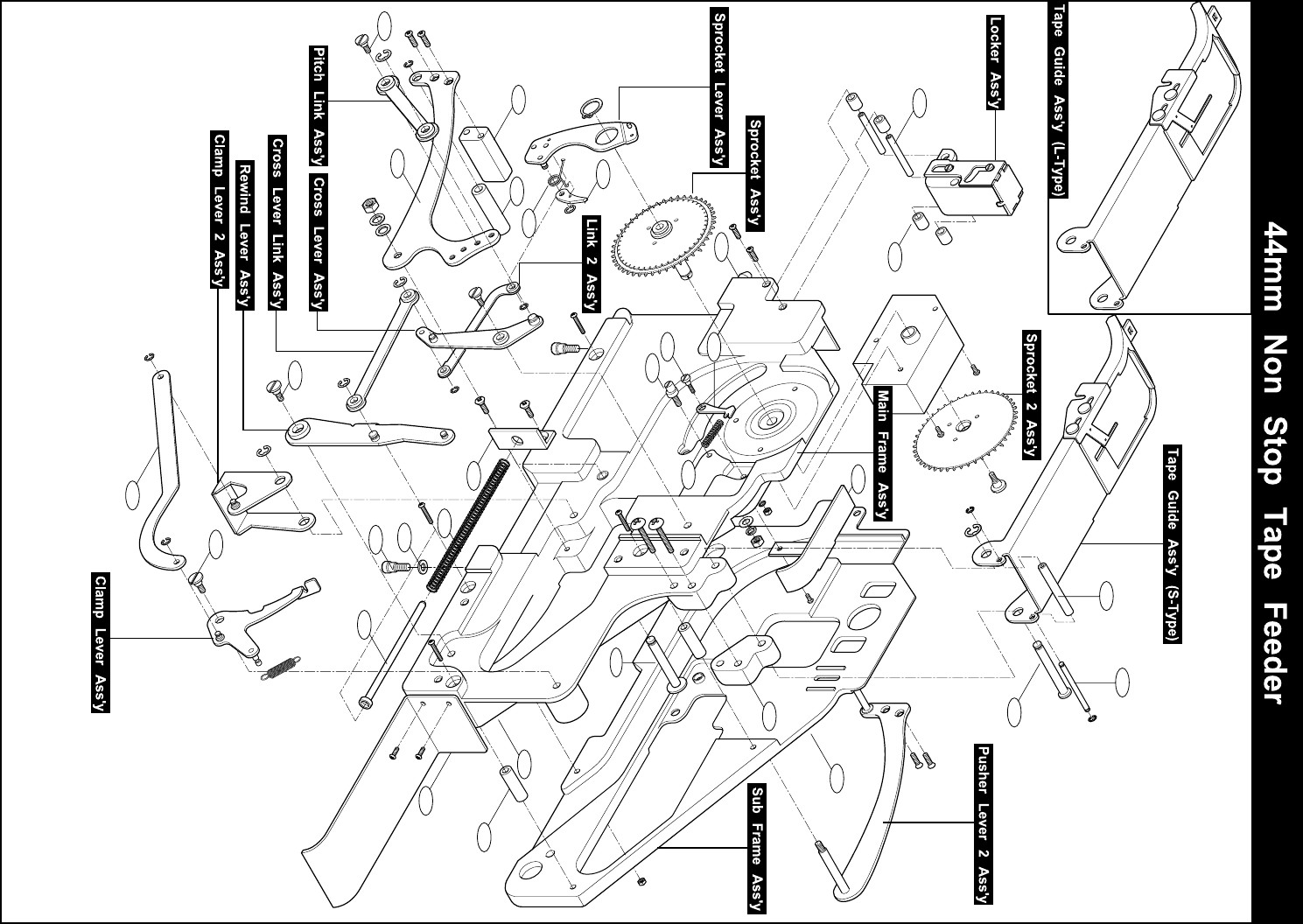

21
- 61 -
10
35
17
34
19
18
3
27
23
26
42
48-5
48-3
48-1
491
36
46
37
38
4
22
43
24
45
5
20
25
48-4
39
44
