CP,SM Tape Feeder Total CS Manual(V200603).pdf - 第27页
5 4 4 8 2 1 4 7 2 7 5 2 5 5 8 2 7 6 2 9 3 2 6 8 6 9 7 4 7 0 7 2 2 2 2 5 1 8 1 9
56
10
80
45
79
44
47
40
46
63
71
57
34
23
58
42
66
41
61
38
59
60
77
37
67
30
33
24
54
48
21
47
27
52
55
82
76
29
32
68 69
74
70
72
22
25
18
19
0603P 1005P 1005N 8mm-P 8mm-N 8mm-N(E)
1
J7000773 SPROCKET ASS'Y 1 1 1 1 1 1
4mm Pitch
J8100120A SPROCKET ASS'Y 1 1 1 1 1 1
2mm Pitch
2
J8100123A TAPE GUIDE ASS'Y 0 0 0 0 1 1
3
J7000775
PUSHER LEVER ASS'Y
1 1 1 1 1 1
4
J7000776
SHUTTER LEVER ASS'Y
1 1 1 1 1 1
5
J7000777
RACHET PUSHER ASS'Y
0 0 0 1 1 1
6
J7000778
REEL WIND CLANK ASS'Y
1 1 1 1 1 1
7
J7000779
MANUAL LEVER LINK ASS'Y
1 1 1 1 1 1
8
J7000776
REWIND LINK ASS'Y
1 1 1 1 1 1
9
J8100129A
TAKE UP REEL PLATE ASS'Y
1 0 0 0 1 1
10
J7165144B
MAIN FRAME
1 1 1 0 1 1
J7165190C
MAIN FRAME
1 1 1 0 1 1 TF08-Q167 NST-08E-2P
J7165191C
MAIN FRAME
1 1 1 0 1 1 TF08-Q134E NST-08E-4P
11
J8100125A
CLAMP ARM ASS'Y
0 1 1 0 1 1 RED 2mm Pitch
J8100126A
CLAMP ARM ASS'Y
0 0 0 0 1 1 BLUE 4mm Pitch
12
J8100127A
CLAMP BAR ASS'Y
1 1 1 0 1 1
13
J8100128A
FORMING BRAKET ASS'Y
1 1 1 0 1 1
14
J8100130A
REEL ARM PLATE ASS'Y
0 0 0 0 1 1
J8100131A
REEL ARM PLATE ASS'Y
0 0 0 0 1 1 Non Stop L Type
15
J8100124A
SPRING BRAKET ASS`Y
1 1 1 0 1 1
16
J8100133A
POCKET ASS`Y
0 0 1 0 1 1 2mm Pitch
J8100132A
POCKET ASS`Y
0 0 0 0 0 1 4mm Pitch
18
J7265088B
IDLER GEAR
TF08-Q112R
19
J7265089B
DRAIN GEAR-L
TF08-Q113R
20
J1301152
SPRING PIN
PHI2*8 (SUS)
21
J600430035
FLAT HEAD CAP SCREW
M3*3 (SUS)
TYPE REMARK

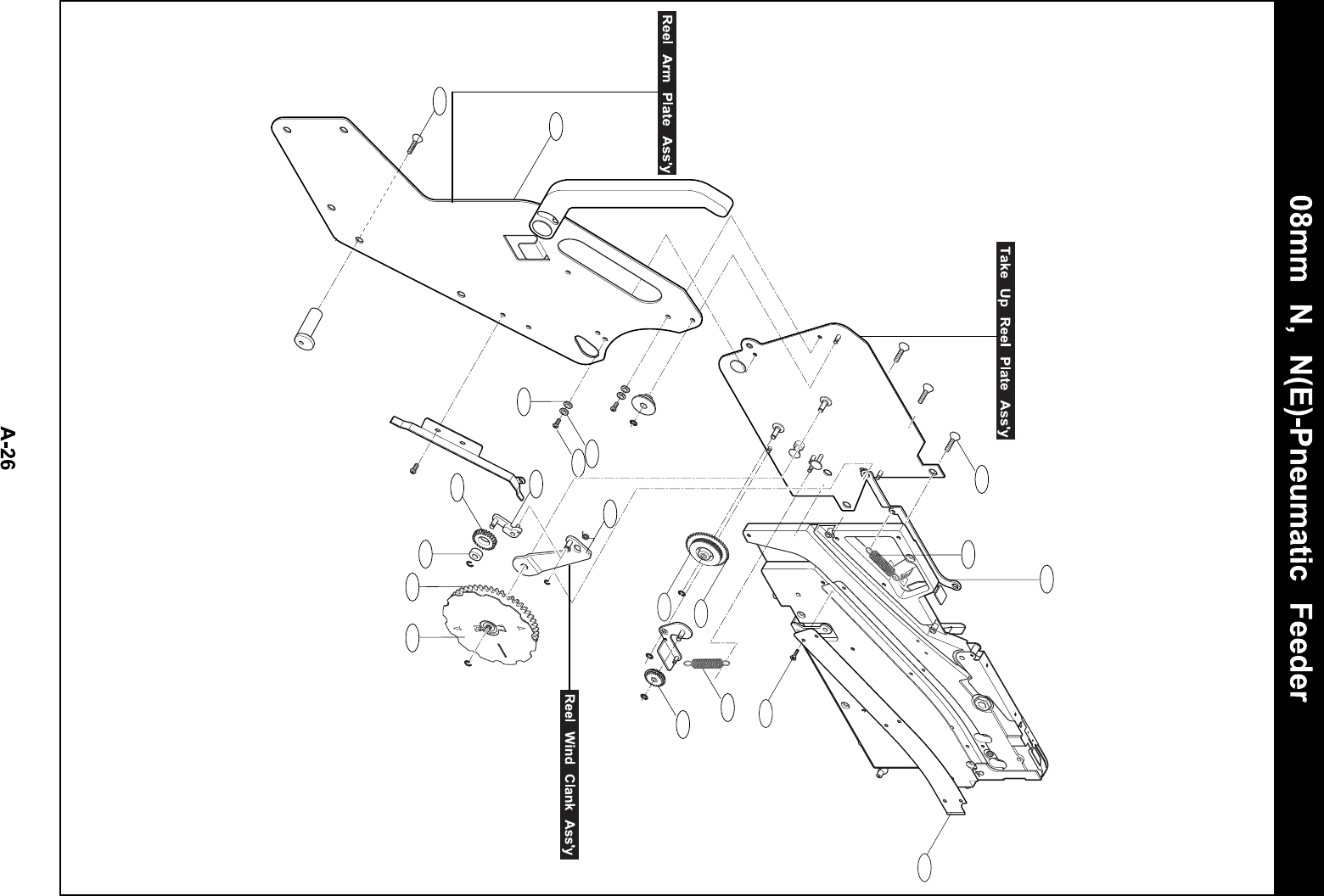

8mm N, N(E)-Pneumatic Feeder
NO. PART NO. PART NAME
Q'TY
A - 27
