3 Technical data and assemblie s Instruction manual SIPLACE TX 3.4 Overview of the modules From software version 714.0 12/2020 116 3.4 Overview of the modules 3 3 Fig. 3.4 - 1 Component overview - example of SIPLACE TX2i…
Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.3 Dimensions and weight
115
3.3.3 Center of gravity
3

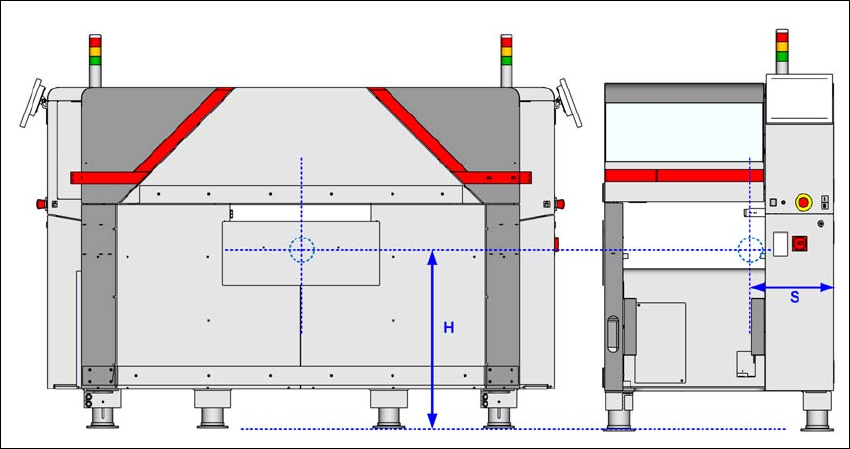

Fig. 3.3 - 4 Center of gravity in millimeters
Center of gravity S = 420 mm / H = 750 mm
3 Technical data and assemblies Instruction manual SIPLACE TX
3.4 Overview of the modules From software version 714.0 12/2020
116
3.4 Overview of the modules
3
3

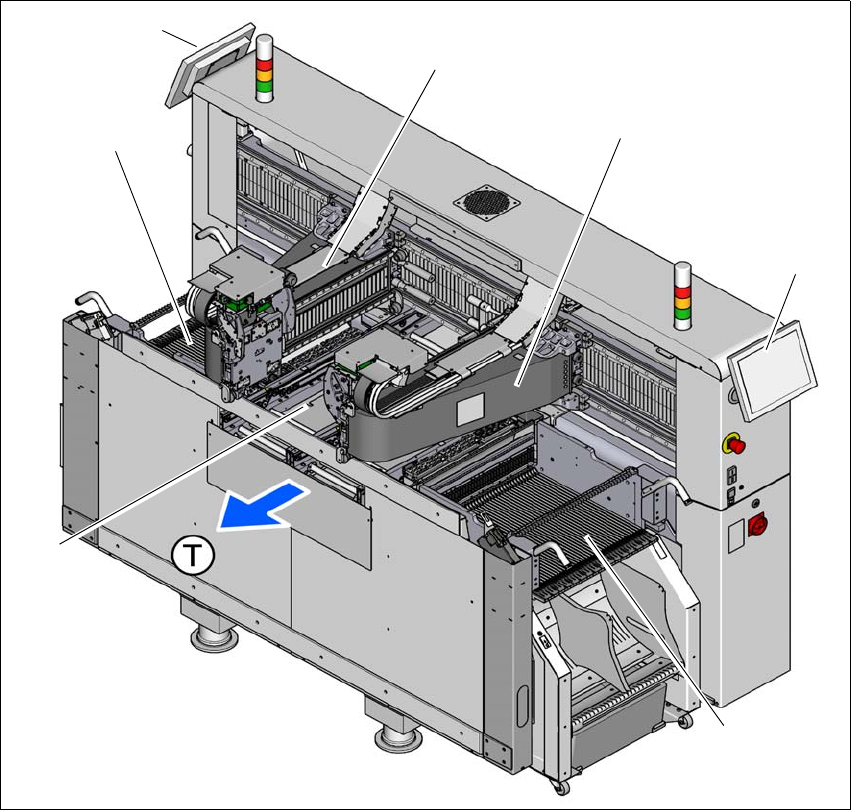

Fig. 3.4 - 1 Component overview - example of SIPLACE TX2i
(1) Location 1 with component trolley, tape cutter, empty tape duct
(2) Monitor at location 1
(3) Gantry at location 1 (placement head, depending on configuration)
(4) Gantry at location 2 (placement head, depending on configuration)
(5) Monitor at location 2
(6) Location 2 with component trolley, tape cutter, empty tape duct
(7) Board conveyor
(T) Direction of PCB transport
(1)
(3)
(4)
(6)
(2)
(7)
(5)
Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.5 Placement head
117
3.5 Placement head
3.5.1 SIPLACE SpeedStar C&P20 P2 on the SIPLACE TX
The SIPLACE TX uses the SIPLACE SpeedStar C&P20 P2 for top placement performance.
3
CAUTION
Always take hold of the handle to push the placement head
The placement head may only be moved by pushing manually against the handle provid-
ed.
