Instruction manual SIPLACE TX 2 Operational safety
From software version 714.0 12/2020 2.2 Warning labels
67
2.2.11.2 Warning labels W 220
2
W 220 in fig. 2.2 - 14, page 65 and 2.2 - 15, page 66, item no. 03114591-01
(Quantity per power supply: 3).
2.2.11.3 High temperatures on the Gantry Control Unit (MGCU)
1 in fig. 2.2 - 14, page 65, temperature label, item no. 03031926-01
(Quantity per power supply: 2).
2
2
Dangerous mains voltage
Switch off the main power switch and wait 5 minutes until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
Risk of burns from high temperatures
The housing of the Gantry Control Unit (MGCU) can become hot during con-
tinuous operation.
Take care when touching the Gantry Control Unit (MGCU).
2 Operational safety Instruction manual SIPLACE TX
2.2 Warning labels From software version 714.0 12/2020
68
2.2.12 High temperatures on the Modular Head Control Unit (MHCU)
1 in fig. 2.2 - 16, temperature label, item no. 03031926-01
(Quantity per placement machine: 2).
2

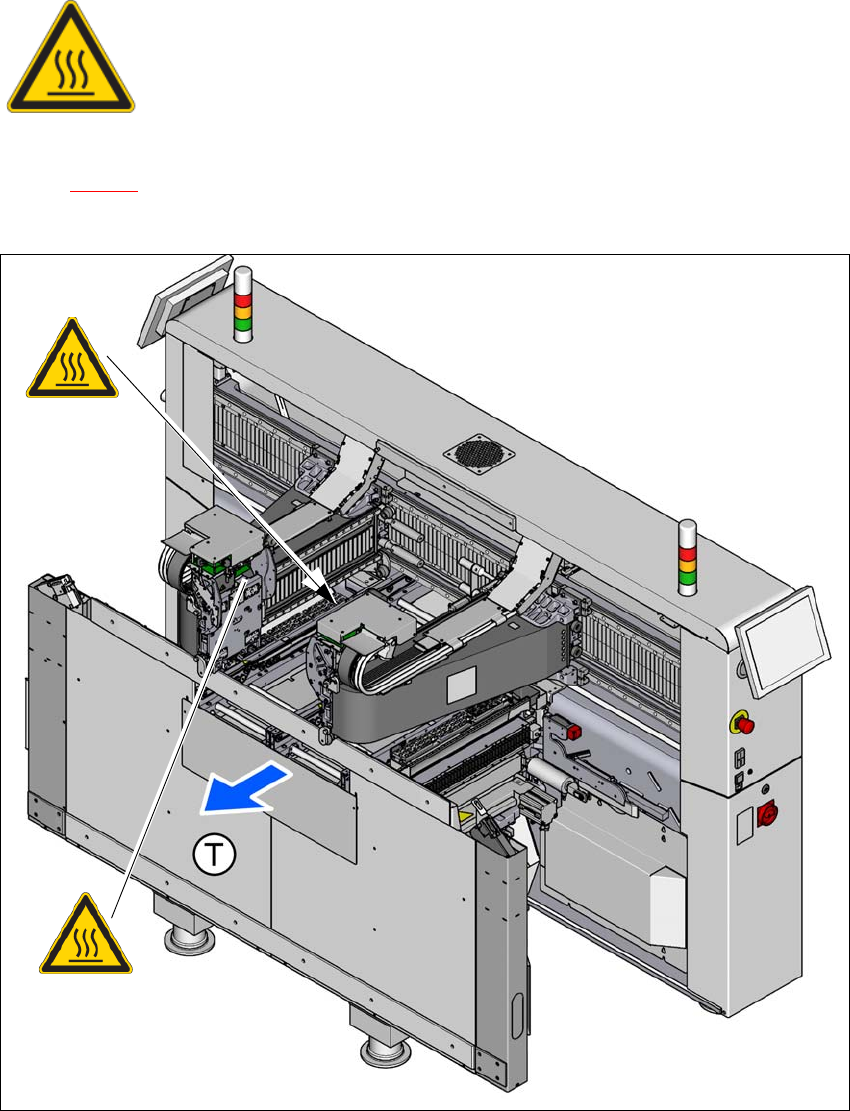

Fig. 2.2 - 16 Temperature label on the Modular Head Control Unit (MHCU) - (example of SIPLACE TX2 shown)
2
Risk of burns from high temperatures
The housing of the Modular Head Control Unit (MHCU) can become hot
during continuous operation.
Take care when touching the Modular Head Control Unit (MHCU).
(1)
(1)
Instruction manual SIPLACE TX 2 Operational safety
From software version 714.0 12/2020 2.2 Warning labels
69
2.2.13 "Head crash" label on the IC camera of the TwinStar
"Head crash" label in fig. 2.2 - 17, item no. 03015392-02
(Quantity per placement machine: maximum 2)
2

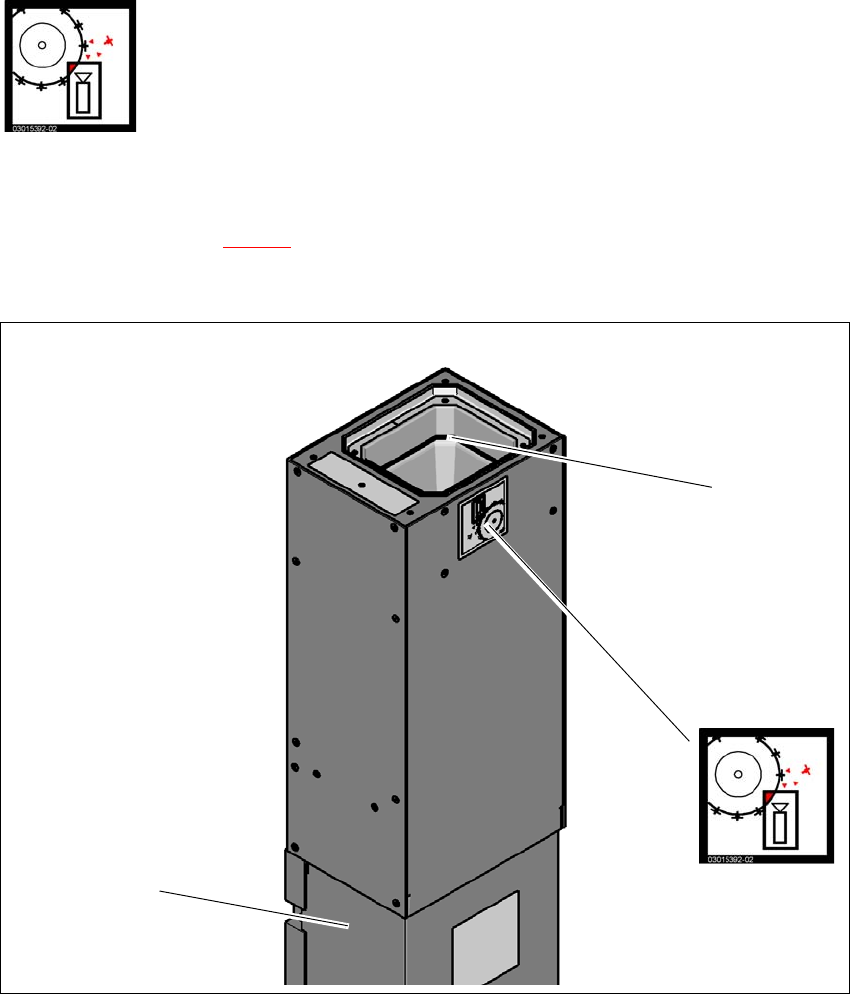

Fig. 2.2 - 17 "Head crash" label on the IC camera of the TwinStar
(1) Camera housing
(2) Glass plate
(3) "Head crash" label on the IC camera of the TwinStar
2
Risk of head crash
When changing the placement head from a TwinStar/VHF to a SpeedStar,
the SpeedStar collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45, and
type 25, 16 x 16 for the TwinStar.
(3)
(1)
(2)
