Instruction manual SIPLACE TX 6 Station extensions
From software version 714.0 12/2020 6.1 Nozzle changer
271
6.1.1.2 Narrow nozzle changer for C&P20 P2 P / C&P20 M3 with 3 magazines
The narrow nozzle changer with 3 magazines is used with the SIPLACE TX2i / TX2i m /
TX2i m 4 mm.
Item no. 03129201-xx Nozzle changer for TX2 i/ TX2i m
Item no. 03101503-xx Nozzle magazine 40xx/60xx with 20 garages
Item no. 03218226-xx Nozzle magazine 40xx
6

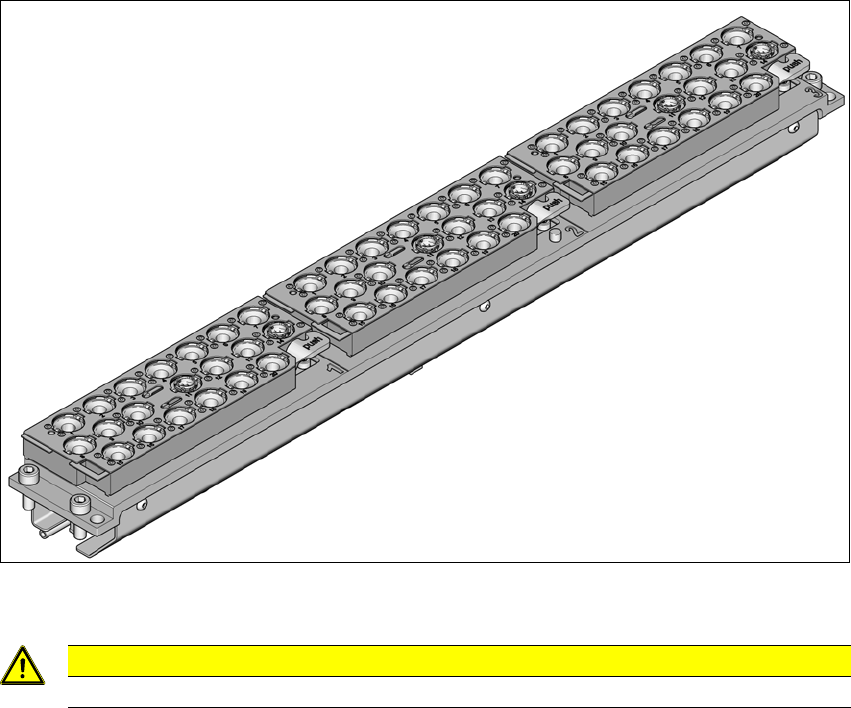

Fig. 6.1 - 2 Nozzle changer for the SIPLACE SpeedStar with 3 magazines
6
CAUTION
Only use this nozzle magazine together with the SpeedStar.
6 Station extensions Instruction manual SIPLACE TX
6.1 Nozzle changer From software version 714.0 12/2020
272
6.1.1.3 Technical data
6
Nozzle changer for the SIPLACE SpeedStar (C&P20 P2 P / C&P20 M3)
Number of magazines per location
*a
SIPLACE TX1/TX2
SIPLACE TX2i / TX2i m
SIPLACE TX2i m 4 mm
*)a All magazines in the nozzle changer must be configured.
4
3
3
Number of nozzle garages per location
SIPLACE TX1/TX2
SIPLACE TX2i / TX2i m
SIPLACE TX2i m 4 mm
80
60
60
Standard configuration
SIPLACE TX1/TX2 per location
SIPLACE TX2i / TX2i m
SIPLACE TX2i m 4 mm
4 magazines with 80 nozzle garages
3 magazines with 60 nozzle garages
3 magazines with 60 nozzle garages
Nozzle types 40xx/60xx
Instruction manual SIPLACE TX 6 Station extensions
From software version 714.0 12/2020 6.1 Nozzle changer
273
6.1.1.4 Configuration example with SIPLACE TX2i
A narrow nozzle changer with three magazines each for the SpeedStar can be installed at both
locations 1 and 2 (item 1 in fig. 6.1 - 3
, page 273).
6
Fig. 6.1 - 3 Position of nozzle changer for the SIPLACE SpeedStar - configuration example SIPLACE TX2i
6
6
NC CP20
Nozzle changer for C&P20 P2 with 3 magazines
COT 40 In
Component trolley in the innermost position (further inside)
PLEASE NOTE
The placement machine stops if magazines are missing
The placement machine will stop if there are magazines missing or incorrectly fitted.
Use all magazine places.
