Instruction manual SIPLACE TX 6 Station exte nsions From software version 714.0 12/2020 6.1 Nozzle changer 287 6.1.5 Reject bin and nozzle st ation 6 Fig. 6.1 - 14 Reject bin and nozzle station (example with nozzle chang…
6 Station extensions Instruction manual SIPLACE TX
6.1 Nozzle changer From software version 714.0 12/2020
286
6.1.4.4 Assembly
The nozzle changer is fixed to the COT insert.
6
Fig. 6.1 - 13 Assembly position
(1) Marking hole
(2) Operator side
(3) Arrow pointing toward the PCB conveyor
Align the nozzle changer so that the marking hole (item 1) is on the left, as viewed by the op-
erator.
6.1.4.5 Special nozzles
The SIPLACE placement machines process components in accordance with the standard SMT
spectrum.
ASM is continually developing special nozzles.
Special nozzles are available for all placement heads in order to process placement jobs with max-
imum speed, precision and flexibility. The use of automatic nozzle changers also reduces the
setup times that occur at a product change.
For the production of special magazines and grippers, again contact ASM.
(1)
(2)
(3)
Instruction manual SIPLACE TX 6 Station extensions
From software version 714.0 12/2020 6.1 Nozzle changer
287
6.1.5 Reject bin and nozzle station
6

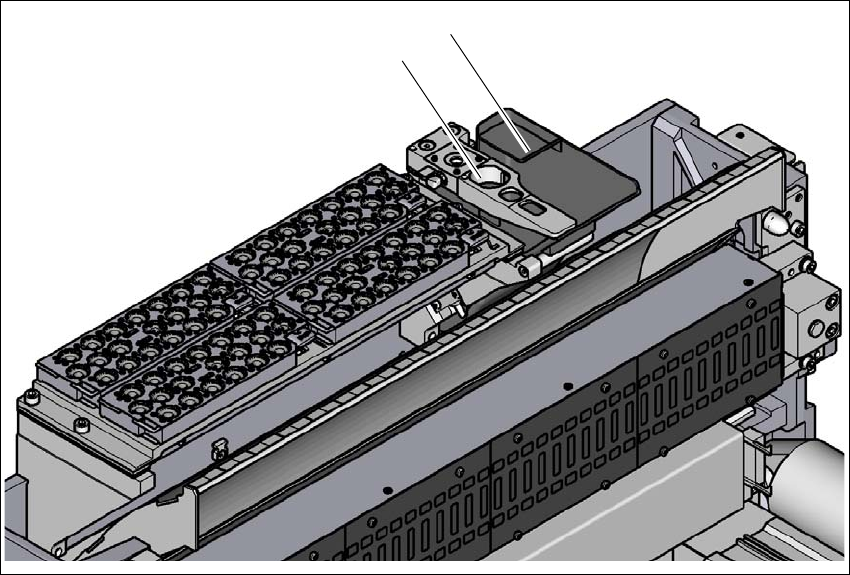

Fig. 6.1 - 14 Reject bin and nozzle station (example with nozzle changer for SIPLACE SpeedStar C&P20 P2)
(1) Reject bin
(2) Nozzle station
(1)
(2)
6 Station extensions Instruction manual SIPLACE TX
6.1 Nozzle changer From software version 714.0 12/2020
288
6.1.5.1 Reject bin and nozzle station, TH/CPP (optional)
Item no. 03112806-xx Reject bin and nozzle station, TH/CPP
A component reject bin can be installed for the SIPLACE TwinStar and SIPLACE CPP with sta-
tionary camera. This is positioned next to the stationary camera.
6
Fig. 6.1 - 15 Reject bin and nozzle station TH/CPP
(1) Reject bin
(2) Nozzle station
(1)
(2)
