Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.5 Placement head
123
3.5.3 Sensor for the component reject bin
The sensor for the component reject bin monitors whether the reject bin is seated correctly in its
mount.
– If the reject bin was not inserted correctly, the placement machine cannot be started.
– If the reject bin jumps out of its mount during the placement process, the placement machine
will be stopped immediately to avoid a head crash.
3.5.4 Vacuum pump
The vacuum pump for the SIPLACE SpeedStar is fitted behind the cover at location 1, in the ma-
chine frame. There are two types available:
– Vacuum pump VX4.25
– Vacuum pump VX4.25/0-47 IE3
3.5.4.1 Overview - type VX4.25
Item no. 03128463-xx Vacuum pump VX4.25
3

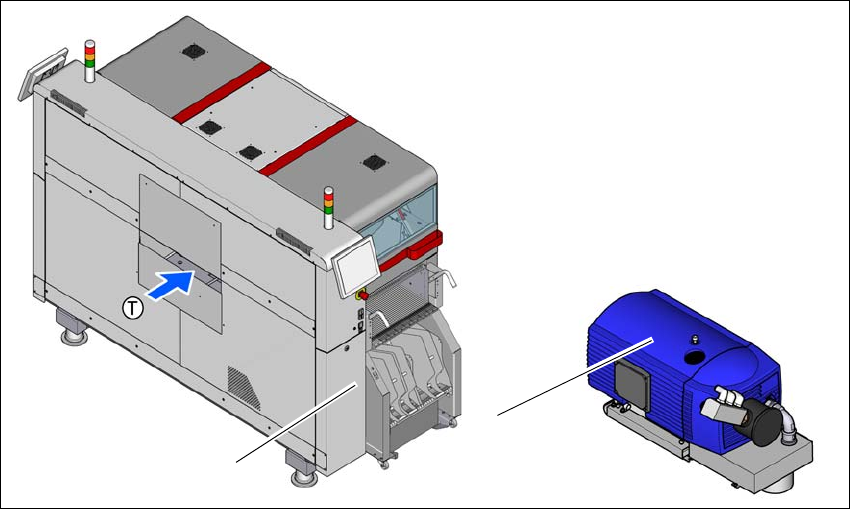

Fig. 3.5 - 3 Overview - vacuum pump
(1) Installation location for vacuum pump
(2) Vacuum pump VX 4.25
(2)
(1)
3 Technical data and assemblies Instruction manual SIPLACE TX
3.5 Placement head From software version 714.0 12/2020
124
3.5.4.2 Overview - type VX4.25/0-47 IE3
Item no. 03224400-xx Vacuum pump VX4.25/0-47 IE3
3

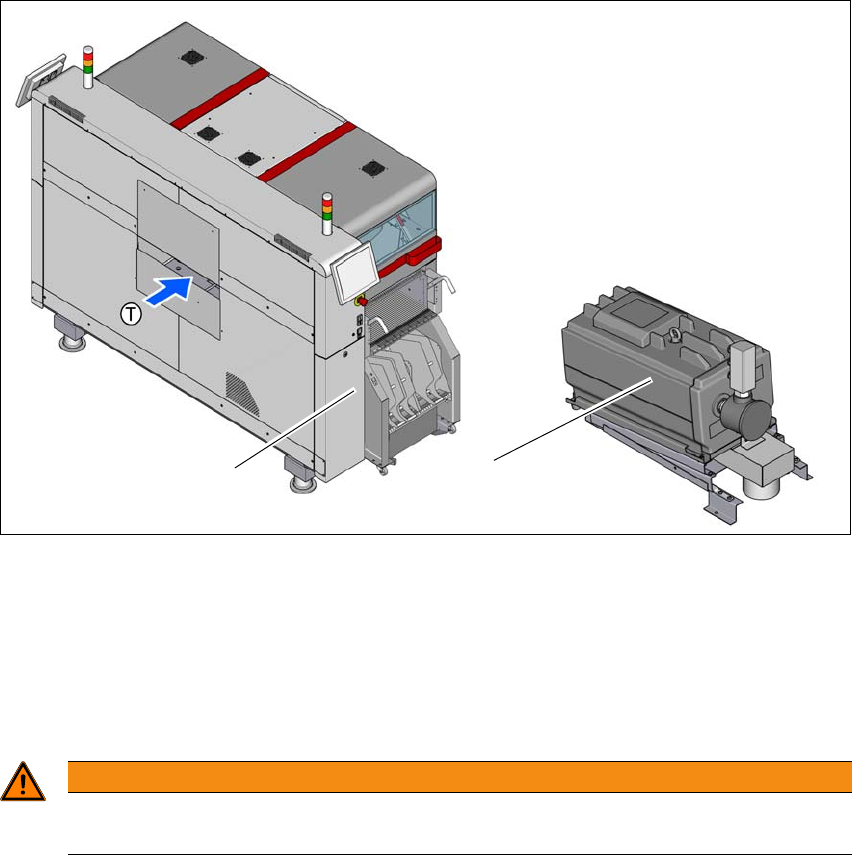

Fig. 3.5 - 4 Overview - vacuum pump
(1) Installation location for vacuum pump
(2) Vacuum pump VX 4.25 IE3
3.5.4.3 Safety instructions for vacuum pumps
3
(2)
(1)
WARNING
Please observe the safety instructions in the vacuum pump instruction manual sup-
plied.
Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.5 Placement head
125
3.5.4.4 Description
Only the SIPLACE SpeedStar can be operated with the vacuum pump. The SIPLACE SpeedStar
with vacuum pump is the default for the SIPLACE TX V2.
When operated together with a vacuum pump, the compressed air consumption for the SpeedStar
(C&P20 P2 / C&P20 M3) head can be reduced considerably. A vacuum pump can supply up to
two SpeedStar (C&P20 P2 / C&P20 M3) heads. The running costs will fall according to the energy
costs incurred.
The vacuum pump is switched on and off with the placement machine. The station software auto-
matically takes into account an overrun time of 6 minutes, to prevent the motor overheating.
3
3.5.4.5 Maintenance instructions
Observe the additional maintenance instructions for the vacuum pump.
Read the relevant section in the maintenance manual for your placement machine.
PLEASE NOTE
The compressed air consumption values can be found in section 3.2.3
, page 109.
