5 Tasks at the placement machine Instruction manual SIPLACE TX 5.7 Indicator lamps with horn From software ver sion 714.0 12/2020 244 5.7.2.3 Configuration of two-color indicator lamp and audio sign al (o ptional) Fig. 5…
Instruction manual SIPLACE TX 5 Tasks at the placement machine
From software version 714.0 12/2020 5.7 Indicator lamps with horn
243

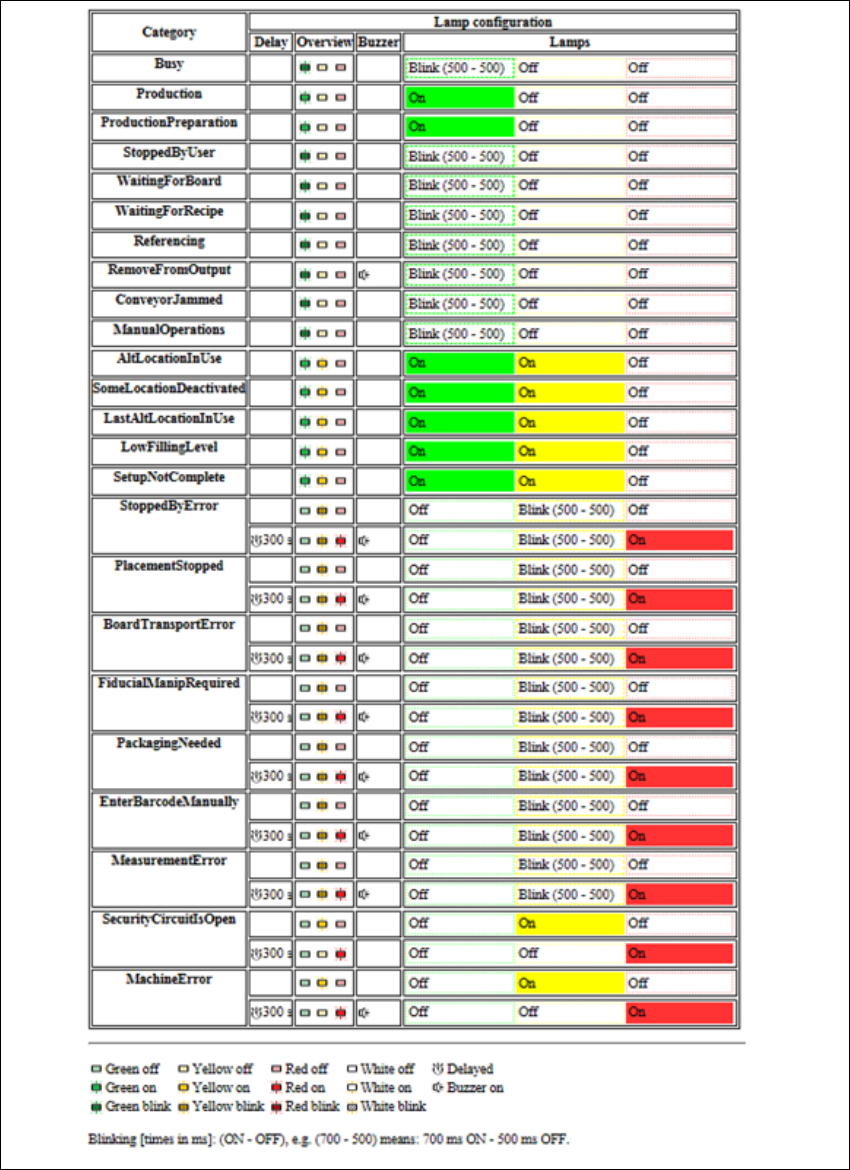

5.7.2.2 Configuration of three-color indicator lamp with delay and audio signal
Fig. 5.7 - 4 Configuration of three-color indicator lamp and audio signal
5 Tasks at the placement machine Instruction manual SIPLACE TX
5.7 Indicator lamps with horn From software version 714.0 12/2020
244

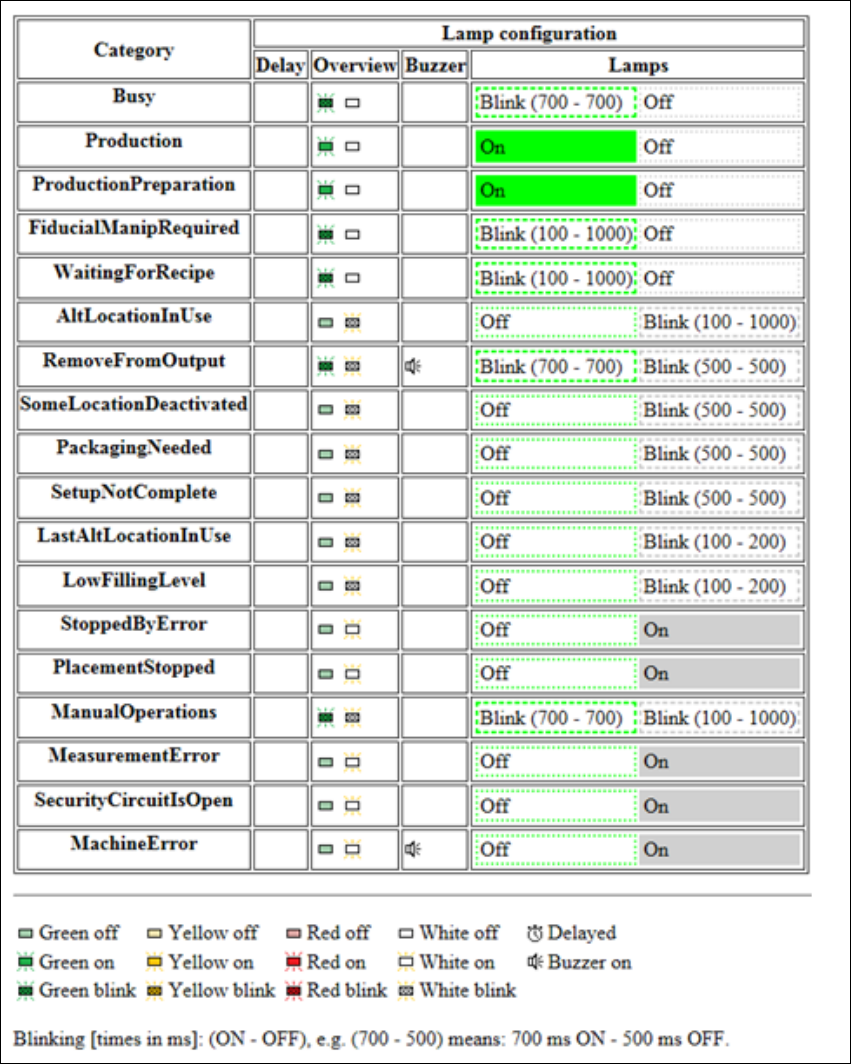

5.7.2.3 Configuration of two-color indicator lamp and audio signal (optional)
Fig. 5.7 - 5 Configuration of two-color indicator lamp and audio signal
Instruction manual SIPLACE TX 5 Tasks at the placement machine
From software version 714.0 12/2020 5.8 Shift changeover
245
5.8 Shift changeover
5.8.1 Shift changeover tasks
Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift
starts. This minimizes the downtime.
At the shift change, pass important information on to the next operator. This includes, for in-
stance, changes to the placement program. Also read through the list of the descriptions of
the steps to take in section 5
, page 261.
Carry out a setup check.
Make sure that the feeder modules are equipped with the correct components, that they are
at the correct locations in the component trolley and that the conveyor increment is set cor-
rectly.
Clean the following line assemblies:
Empty the reject bin and carefully vacuum the area around the reject bin.
Carefully vacuum the nozzle changer, feeder modules and the component trolley.
Empty the waste tape container. Follow the safety instructions given in section 5.8.2, page
246
.
