2 Operational safety Instruction manual SIPLACE TX
2.2 Warning labels From software version 714.0 12/2020
54
2.2.5 Hand guard on the board conveyor
The hand guard on the PCB conveyor prevents you from reaching into the placement machine, in
the event that there is no input/output conveyor extension fitted.
The hand guard is fitted to the input and output conveyors, as a default.
2

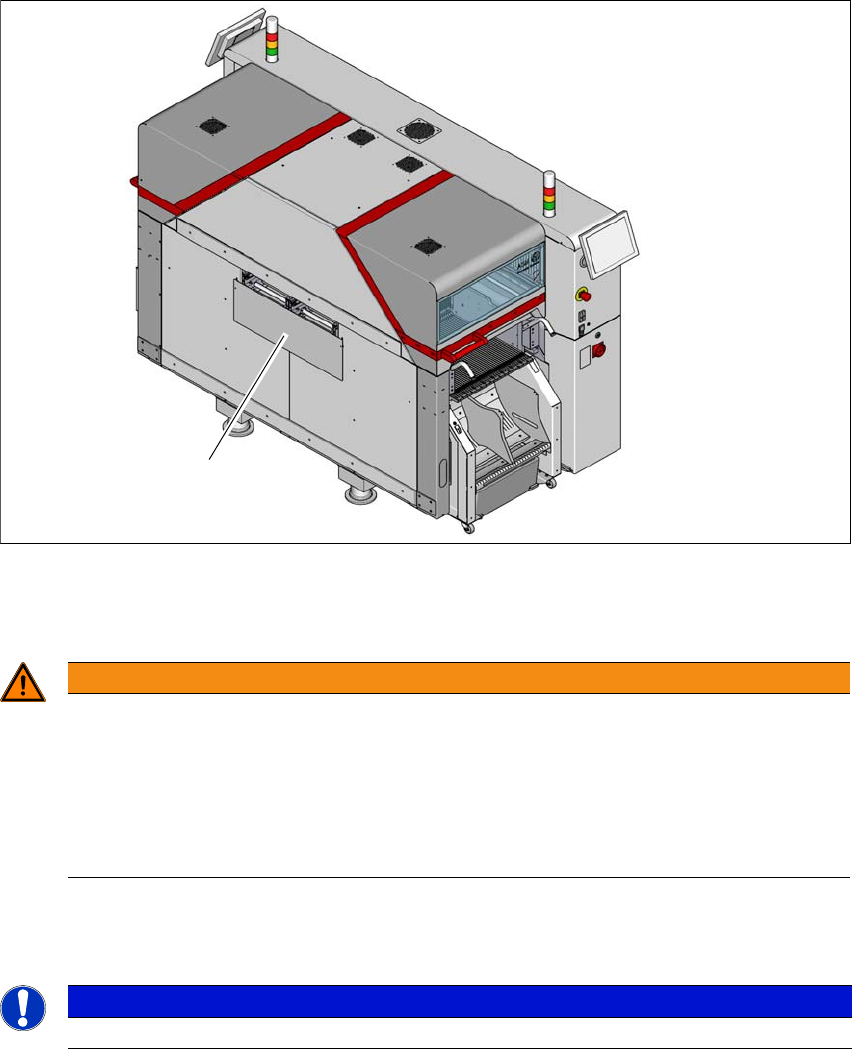

Fig. 2.2 - 7 Hand guard on the SIPLACE TX placement machine (location 2)
(1) Hand guard
2
Adjust the height of the hand guard (metal sheet inside and outside) so that the board with
the components can be transported safely through the conveyor system.
2
WARNING
Danger of crushing
If the hand guard is not fitted, reaching into the board conveyor could lead to injuries to
the arms and hands.
The operating company is responsible for ensuring that the hand guard is fitted.
Only operate the SIPLACE TX placement machine if the hand guard has been fitted
to the input and output conveyor.
PLEASE NOTE
Observe the maximum height of the board with the highest component.
(1)
Instruction manual SIPLACE TX 2 Operational safety
From software version 714.0 12/2020 2.2 Warning labels
55
2.2.6 Warning labels on the gantries

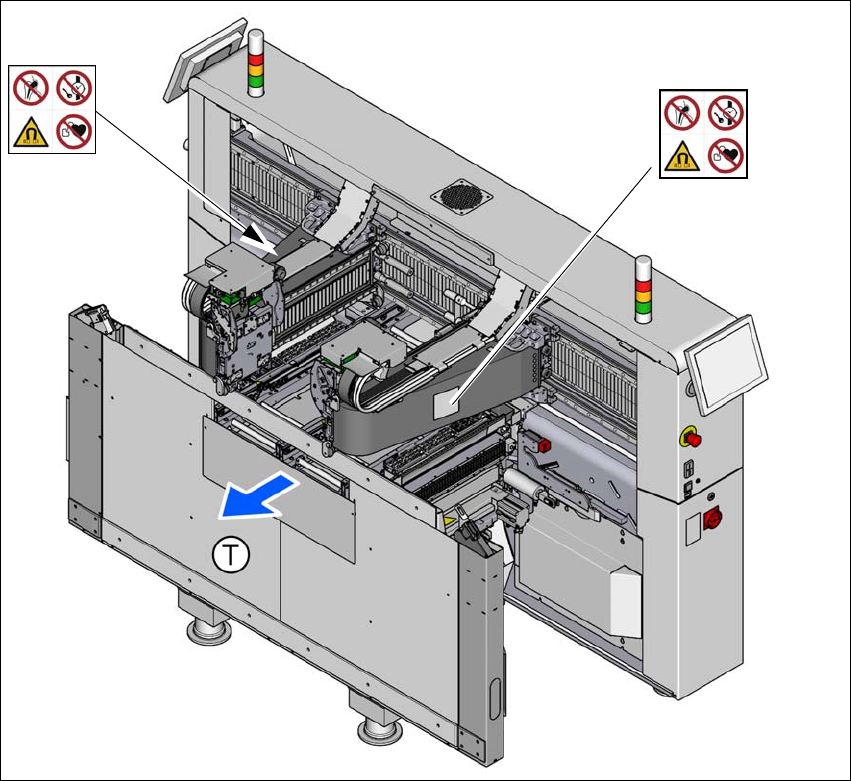

Fig. 2.2 - 8 Warning labels on the gantries (example SIPLACE TX2i )
2
Item W 006, item no. 03155812-01
W 006
W 006
2 Operational safety Instruction manual SIPLACE TX
2.2 Warning labels From software version 714.0 12/2020
56

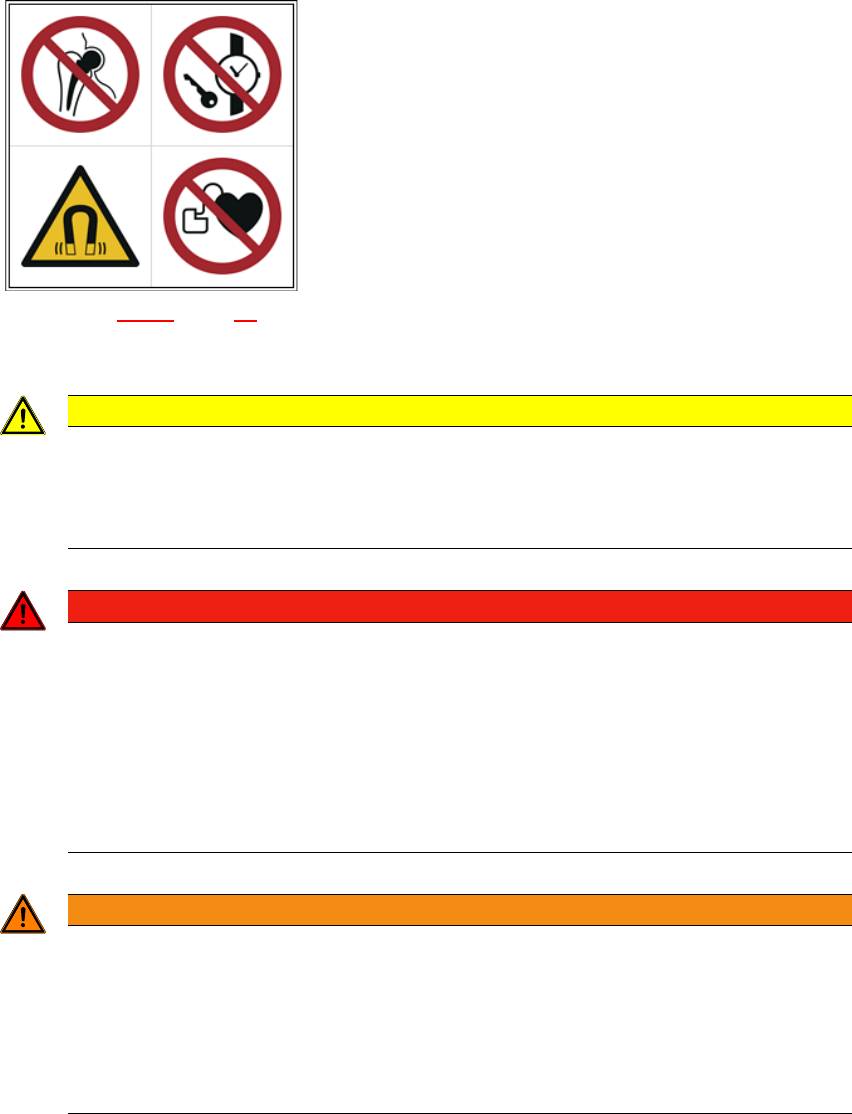

2.2.6.1 Warning label W 006
2
W 006 in fig. 2.2 - 8, page 55, item no. 03155812-01
(Quantity per placement machine: 2)
2
2
2
CAUTION
Data loss due to powerful magnetic fields
There is a risk that the powerful magnetic fields could corrupt data on data media or credit
cards and check cards.
Keep data carriers and check cards away from the placement machine.
DANGER
Danger to life from powerful permanent magnetic fields inside the placement machine!
When protective covers are opened inside the placement machine, the life of persons
with the following passive or active implants is put at risk:
– Pacemakers
– Defibrillators
– Insulin pumps etc.
At-risk people may not stand in the immediate vicinity of the placement machine.
WARNING
Danger of crushing
There is a danger of crushing for persons with passive metal implants (e.g. plates,
screws).
Never reach into the placement machine when the protective covers are open and
do not bend over the open placement machine.
Do not bring any metal objects into the danger area.
