2.2.10.3 Warning strips on the used tape chute
2
A black-yellow warning strip is attached to the used tape chute. Item 1 in the fig. 2.2 - 13, page 64
(quantity per placement machine: 1)
2.2.11 Warning labels on the power supply unit
The power supply unit is located under the cover at location 2 (see item 3 in fig. 4.4 - 3, page 186 ).
Fig. 2.2 - 14 Warning labels on the power supply unit (view from front)
– Item W 220, on the cover of the safety cutoff (CSB)
– Item W 012, on the Gantry Control Unit (MGCU 1 and MGCU 2)
(1) Temperature caution label on the Gantry Control Unit (MGCU 1 and MGCU 2)
2
2
2
Risk of hand injuries (cuts) over an extensive area
Reaching in here can lead to injuries to the arms and hands.
W 220W 012
(1)
2 Operational safety Instruction manual SIPLACE TX
2.2 Warning labels From software version 714.0 12/2020
66

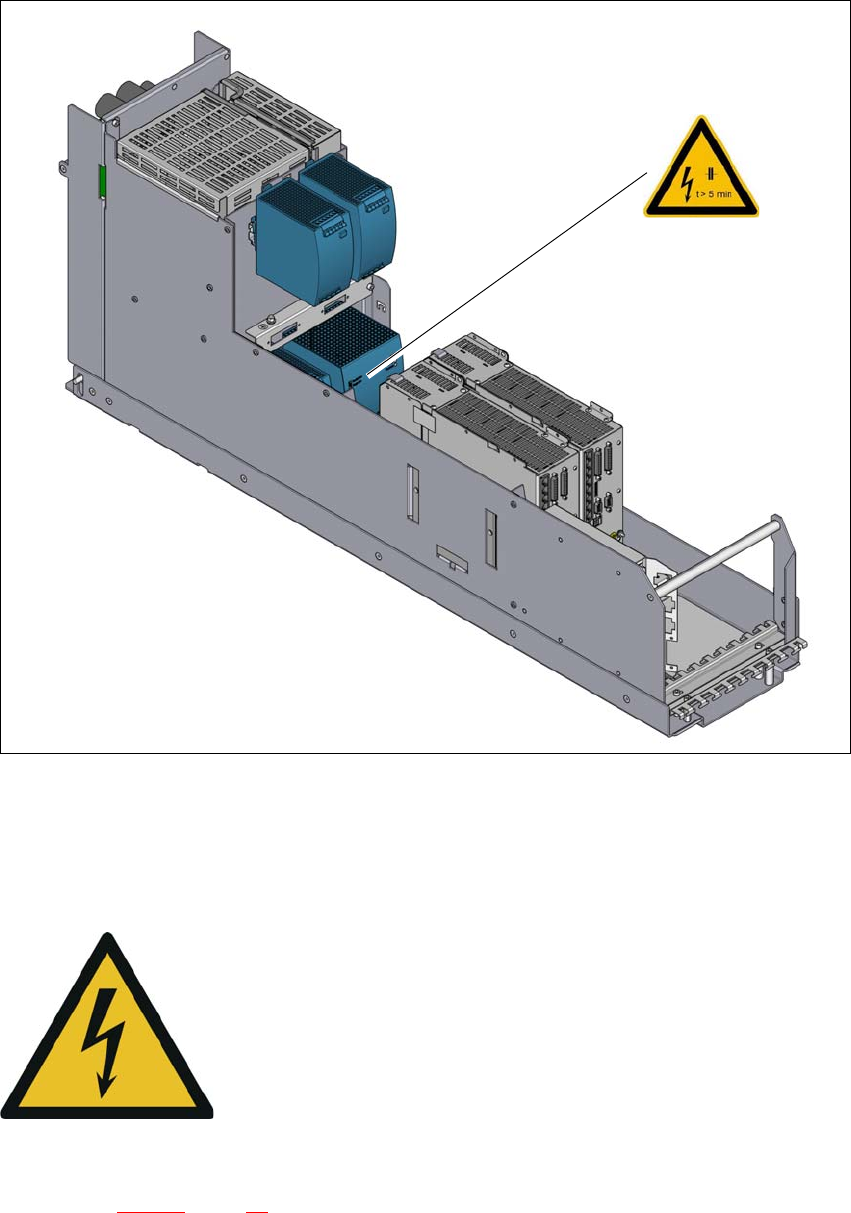

Fig. 2.2 - 15 Warning labels on the power supply unit (view from back)
– W 220 on the power supply AC/DC converters (160 V DC /300 V DC).
2.2.11.1 Warning label W 012
2
W 012 in fig. 2.2 - 14, page 65, item no. 03009345-01
(Quantity per power supply: 3).
W 220
Dangerous voltages
The labeled parts are still live when the main power switch is off
and the mains plug has been disconnected.
Disconnect the placement machine from the mains before
opening the cover.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
Instruction manual SIPLACE TX 2 Operational safety
From software version 714.0 12/2020 2.2 Warning labels
67
2.2.11.2 Warning labels W 220
2
W 220 in fig. 2.2 - 14, page 65 and 2.2 - 15, page 66, item no. 03114591-01
(Quantity per power supply: 3).
2.2.11.3 High temperatures on the Gantry Control Unit (MGCU)
1 in fig. 2.2 - 14, page 65, temperature label, item no. 03031926-01
(Quantity per power supply: 2).
2
2
Dangerous mains voltage
Switch off the main power switch and wait 5 minutes until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2
Risk of burns from high temperatures
The housing of the Gantry Control Unit (MGCU) can become hot during con-
tinuous operation.
Take care when touching the Gantry Control Unit (MGCU).
