Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.5 Placement head
135

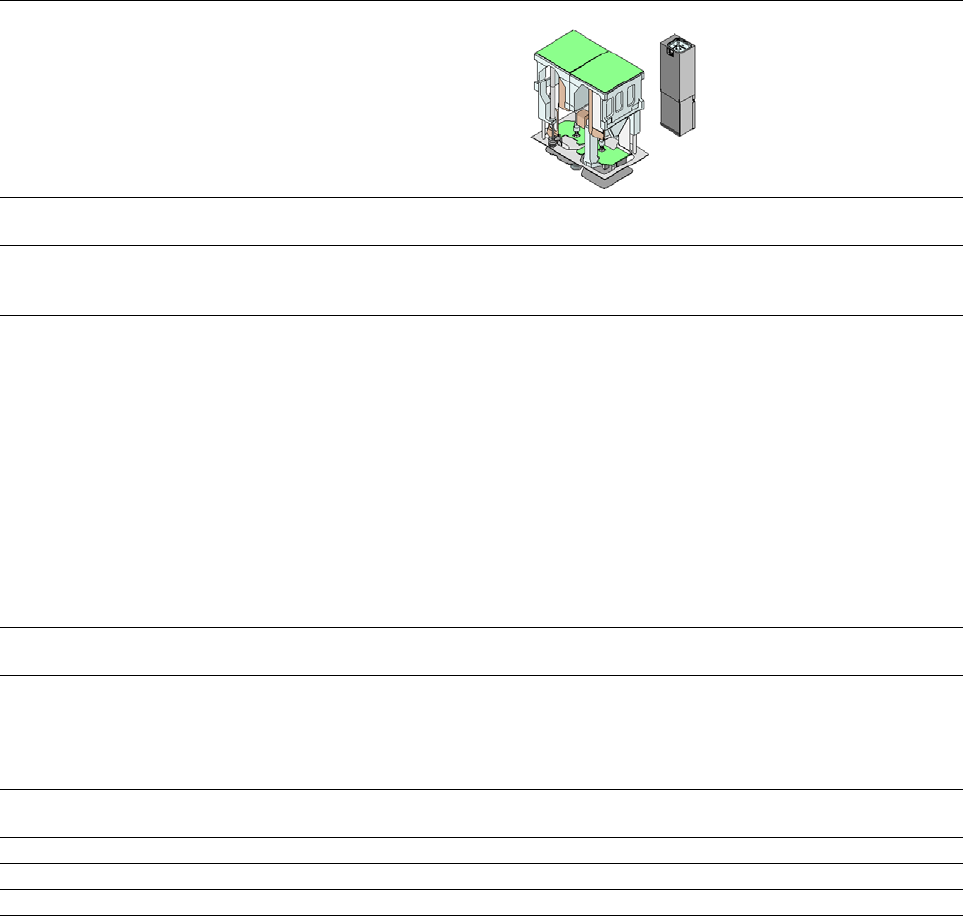

3.5.5.9 Technical data for SIPLACE MultiStar (CPP M) in SIPLACE TX2 m
SIPLACE MultiStar (CPP M)
With component camera
type 45 (Standard)
With component camera
type 30 (Optional)
Component range
*a
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-specific
standards, the component packaging tolerances and the component tolerances.
01005 to 15 mm x 15 mm 01005 to 27 mm x 27 mm
Component specifications
Max. height
*b
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
*)b CPP M head: in low installation position
6.0 mm
250 µm / 120 µm
*c
50 µm
140 µm
70 µm
0.11 mm x 0.11 mm
15 mm x 15 mm
4 g
*)c Only possible for components which are within the camera focal area of ± 1.3 mm.
6.0 mm
250 µm
100 µm
*d
/ 200 µm
*e
250 µm
e
/ 350 µm
f
140 µm
e
/ 200 µm
f
0.4 mm x 0.2 mm
27 mm x 27 mm
4 g
*)d For components < 18 mm x 18 mm.
*)e For components ≥ 18 mm x18 mm
Programmable set-down force 1.0 - 15 N
Nozzle types 20xx, 28xx
X/Y accuracy
*f
With "accuracy class"
*g
Without "accuracy class"
*)f The benchmark and accuracy values are measured during the machine acceptance tests and correspond
to the conditions set out in the ASM scope of service and supply.
*)g Setting the accuracy class in the SIPLACE Pro Component Shape Editor or Placement Position Editor.
± 20 µm/3σ
± 25 µm/3σ
± 20 µm/3σ
± 25 µm/3σ
Angular accuracy ± 0.18° / 3σ ± 0.18° / 3σ
Illumination level 5 5
Standard functions High-resolution camera, vacuum sensor, force measurement,
component sensor, integrated turning station per segment, PCB
warpage check, individual image of each component
3 Technical data and assemblies Instruction manual SIPLACE TX
3.5 Placement head From software version 714.0 12/2020
136
3.5.6 SIPLACE TwinStar for high precision IC placement
3
Fig. 3.5 - 11 SIPLACE TwinStar for high precision IC placement
3
(1) Pick&Place module 1 (P&P1)
(2) Pick&Place module 2 (P&P2)
(3) DP axis
(4) Z axis drive
(5) Incremental distance measuring system for the Z axis
Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.5 Placement head
137
3.5.6.1 Technical data Twin Star
SIPLACE TwinStar
With component camera type 33
(fine pitch camera)
With component camera type 25
(flip chip camera)
Component range
*a
0402 to SO, PLCC, QFP, BGA, special
components, bare dies, flip-chips
0201 to SO, PLCC, QFP, sockets,
plugs, BGA, special components, bare
dies, flip-chips, shields
Component specs
*b
Max. height
Min. lead pitch
Min. lead width
Min. ball pitch
Min. ball diameter
Min. dimensions
Max. dimensions
Max. weight
*c
25 mm (higher available on request)
300 µm
150 µm
350 µm
200 µm
1.0 mm x 0.5 mm
55 mm x 45 mm (single measurement)
Up to
200 mm x 125 mm (multiple measurement)
*d
160 g
*e
25 mm (higher available on request)
250 µm
100 µm
140 µm
80 µm
0.6mm x 0.3mm
16 mm x 16 mm (single measurement)
160 g
e
Set-down force 1.0 N - 15 N
2.0 N - 30 N with OSC package
1.0 N - 15 N
2.0 N - 30 N with OSC package
Nozzle types
*f
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
Gripper
5xx (standard)
20xx/28xx + adapter
4xx + adapter
9xx + adapter
Gripper
Nozzle spacing for P&P
heads
70.8 mm 70.8 mm
X/Y accuracy
*g
± 28 µm/3σ ± 22 µm/3σ
Angular accuracy ± 0.05° / 3σ, ± 0.05° / 3σ
Illumination level 6 6
*)a Please note that the placeable component range is also affected by the pad geometry, the customer-specific standards, the
component packaging tolerances and the component tolerances.
*)b If the MultiStar and TwinStar are combined in the same placement area, the maximum component height may be restricted.
*)c If standard nozzles are used
*)d Depending on the component dimensions and component infeed, other restrictions may also apply, which SIPLACE Pro will
automatically take into account.
*)e Up to 100 g is standard. Over 100 g available with reduced acceleration.
*)f Over 300 different nozzles and 100 gripper types are available, with an extensive nozzle database available online.
*)g The accuracy values fulfill the conditions in the SIPLACE scope of supply and services.
