3.8.4.1 Description
The energy and data interface allows X feeder modules to be used outside the placement machine
and presetup area. The interface consists of an aluminum frame with omega profile for holding
and guiding the feeder modules. As with the component trolley, the feeder module is placed on
the omega profile, with the slider guides, and is pushed forwards until the front centering pin of the
feeder module is fully inserted into the locating hole. The locking latch locks the feeder module in
this position. To remove the feeder module, simply press the release button. The locking latch is
pressed downwards and releases the feeder module. Fold-out feet stabilize the position of the en-
ergy and data interface, particularly for wider feeder modules.
The electronics housing holds the electronic control unit for the energy and data interface. The
operating panel consists of start and stop buttons and two status LEDs. Communication with a PC
takes place via the data cable. The power supply cable is connected to the power supply unit pro-
vided.
3.8.4.2 Usage
The energy and data interface is used to check, maintain and repair X feeder modules. It can also
be used for setting up in advance for PCB production. In this case, the energy and data interface
is fixed to the base plate. The tape reel holder is also mounted on the base plate. When a com-
ponent tape is inserted, you can check or reset the increment, pick-up position and conveyor
speed. The detailed user guide describes how to use the interface and the necessary servicing
work.
3.8.4.3 Scope of delivery
– Single Slot EDIF
– Power supply, 100 - 120 / 200 - 240 VAC, +30VDC, 4.3 A
– Base plate with tape reel arm
– User guide
3 Technical data and assemblies Instruction manual SIPLACE TX
3.8 SIPLACE tape feeder modules for SIPLACE TX From software version 714.0 12/2020
162
3.8.5 SIPLACE PowerConnector X
Item no. 00141420-xx SIPLACE PowerConnector X
3

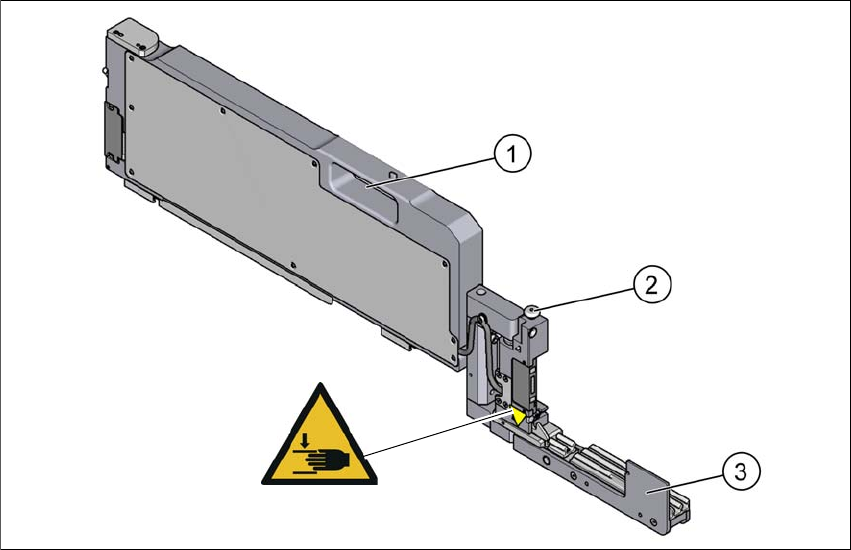

Fig. 3.8 - 6 SIPLACE PowerConnector X
(1) Handle
(2) Unlocking button for extender arm and feeder
(3) Extender arm (in work position)
Item W 024, item no. 03155346-01
3.8.5.1 Description
The SIPLACE PowerConnector X helps to resolve problems connected to SIPLACE X feeder
modules in the machine, without the need to stop the production process.
For a detailed description, see the SIPLACE PowerConnector X user guide, [item no. 00198772-
01-xx.]
W 024
Instruction manual SIPLACE TX 3 Technical data and assemblies
From software version 714.0 12/2020 3.8 SIPLACE tape feeder modules for SIPLACE TX
163
3.8.5.2 Safety instructions
3.8.5.3 Technical data
3
3
3
3
Warning about hand injuries
There is a risk of injury to hands when folding the extender arm up
into the park position.
When folding up the extender arm, make sure that you do not
trap your hand between the extender arm and the
S
IPLACE PowerConnector X.
Length 648.4 mm (folded in)
866.9 mm (folded out)
Width 34.4 mm
Height 188.4 mm
Occupied locations 3
Weight 3.2 kg
