Instruction manual SIPLACE TX 6 Station extensions
From software version 714.0 12/2020 6.1 Nozzle changer
281
6
6
Fig. 6.1 - 9 Nozzle changer for C&P/CPP - changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) spring pin for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Locking plate in the "magazine locked" position
WARNING
Risk of head crashes with protruding lever
Any lever that is protruding over the magazine (item 1 in fig 6.1 - 9
) can result in a head
crash.
You should therefore make sure that the lever does not protrude over the maga-
zines.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
6 Station extensions Instruction manual SIPLACE TX
6.1 Nozzle changer From software version 714.0 12/2020
282
6
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 9, page 281).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6.1.3.3 Position detection
Each nozzle changer magazine has two fiducials for determining the position.
6

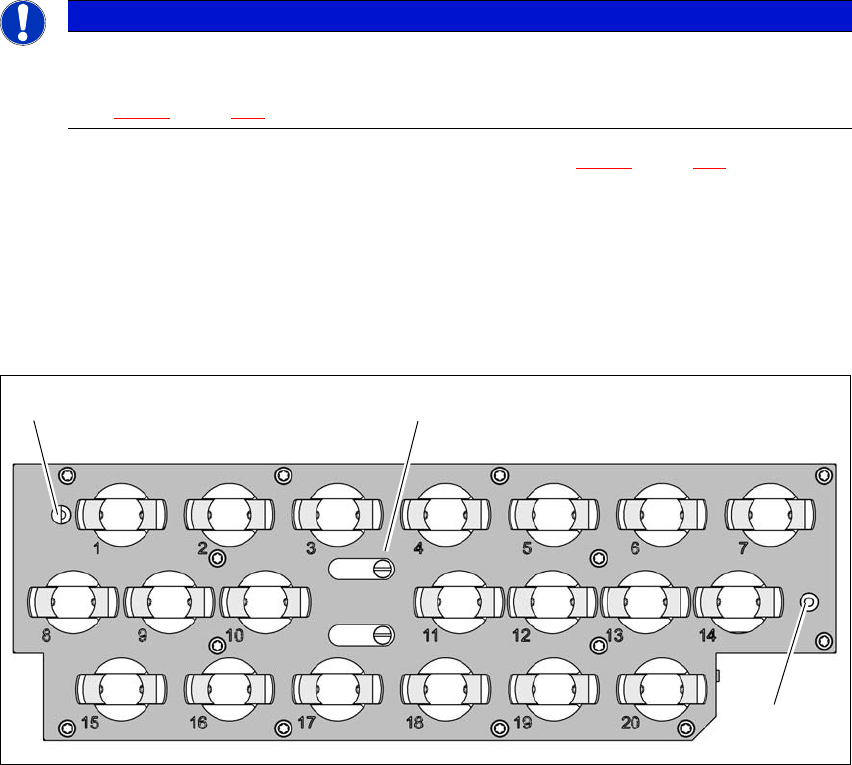

Fig. 6.1 - 10 Nozzle magazine - holder numbering, fiducials for determining the position and angular position
(1) Locking plate in the "magazine open" position
(2) Fiducials for determining the position
PLEASE NOTE
Move the locking plate into the "Magazine locked" position.
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
6.1 - 9
, page 281) slide into the centering holes and slot.
(1)
(2)
(2)
Instruction manual SIPLACE TX 6 Station extensions
From software version 714.0 12/2020 6.1 Nozzle changer
283
6.1.4 Nozzle changer for the SIPLACE TwinStar
Item no. 03005191-xx Magazine for 2 nozzles
Item no. 03001807-xx Magazine for 1 nozzle
6

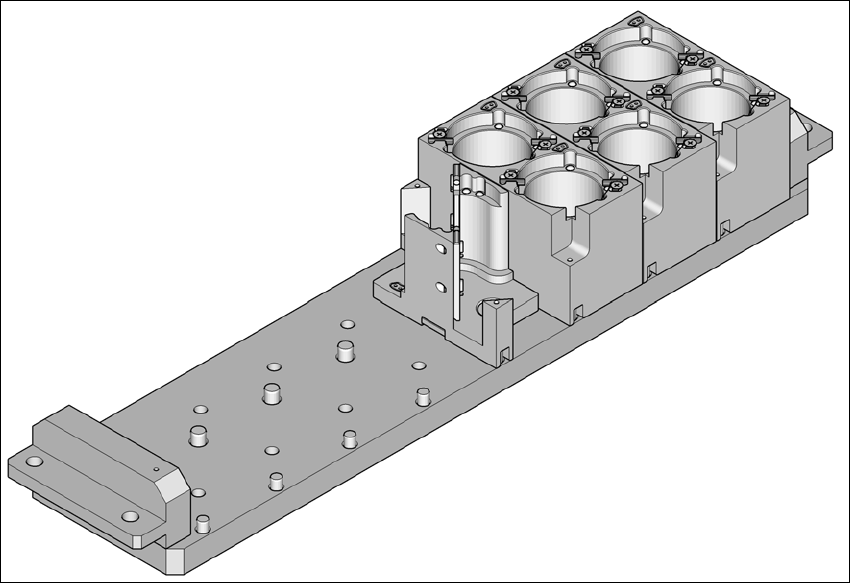

Fig. 6.1 - 11 Nozzle changer for the SIPLACE TwinStar
6.1.4.1 Description
This nozzle changer can accommodate up to 8 nozzle magazines. There are two different maga-
zine types available: standard magazines and magazines for special nozzles or grippers. The
magazines are seated on a common support. They are centered with two parallel pins and fixed
in place with two countersunk screws.
