Instruction manual SIPLACE TX 2 Operational safety
From software version 714.0 12/2020 2.4 Safety instructions for operation
77
2.4.7 High temperatures on the X feeder modules during continuous operation
2

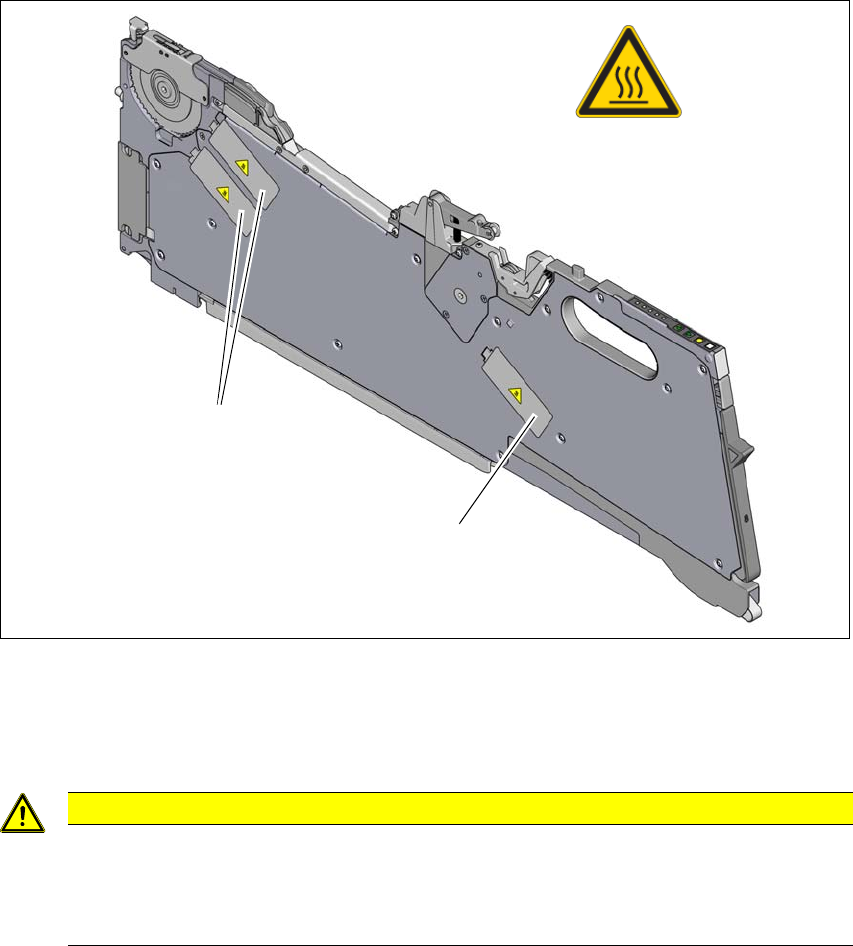

Fig. 2.4 - 2 High temperatures on the X feeder modules during continuous operation
(1) Temperature label, item no. 03031926-01
(2) Stepping motor
2
CAUTION
Risk of burns due to high temperatures!
The stepping motors can become very hot during continuous operation and in an ambient
temperature in excess of 22 °C.
Be careful when touching the motors.
(1)
(2)
(2)
2 Operational safety Instruction manual SIPLACE TX
2.4 Safety instructions for operation From software version 714.0 12/2020
78
2.4.8 Safety instructions for manual movement of Z axis on TwinStar
2
2

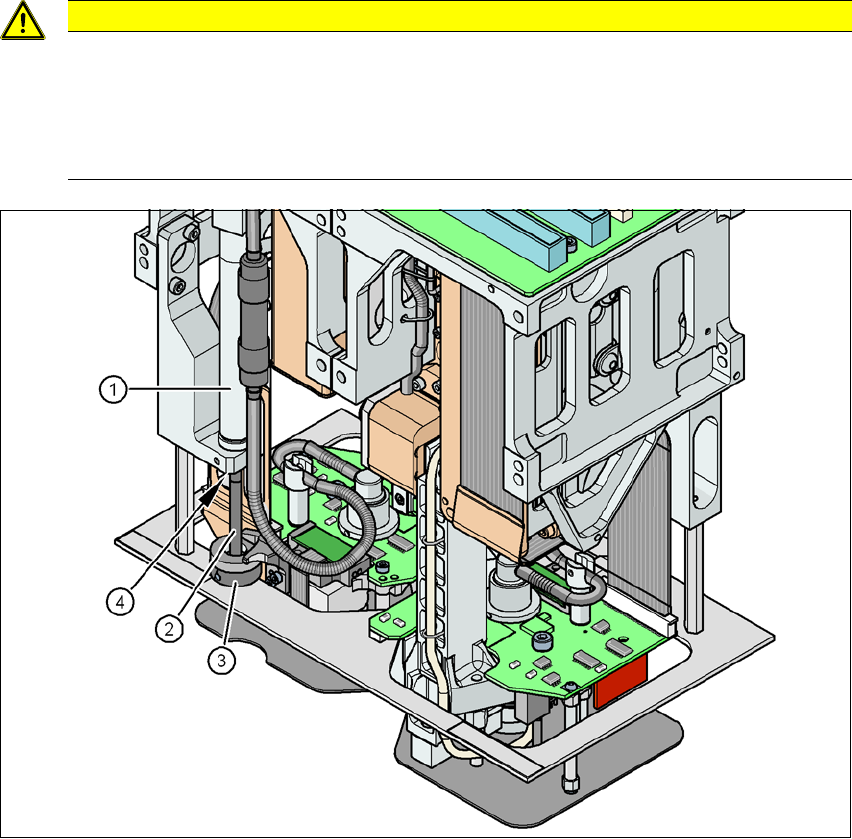

Fig. 2.4 - 3 Risk of crushing by return unit on TwinStar
(1) Return unit, compressed air cylinder
(2) Piston rod
(3) Bumper of the return unit
(4) Risk of crushing finders here
CAUTION
Risk of crushing on TwinStar due to spring force of cylinder!
The strong spring tension of the cylinder moves the bumper back very quickly and could
injure your fingers. The same warning applies to the inside of the TwinStar, when the pis-
ton rod moves back to its original position.
NEVER move the Z axis down with your hand on the bumper of the return unit.
Instruction manual SIPLACE TX 2 Operational safety
From software version 714.0 12/2020 2.4 Safety instructions for operation
79
2.4.9 Safety instructions for the TwinStar component cameras
2
2.4.10 Safety instructions for docking the component trolley in or out
2
2
2
2
2.4.11 Safety instructions for emptying the waste tape container
The waste tape container must be pulled out of the component trolley for emptying. There is a risk
of catching your thumbs as you do so. To prevent this, observe the safety instructions in section
5.8.2
, page 246.
WARNING
Risk of collisions!
When changing the placement head from a TwinStar/VHF to a SpeedStar, the SpeedStar
collides with the camera housing.
Dismantle the stationary component cameras of type 33, 55 x 45, and type 25, 16 x
16 for the TwinStar.
WARNING
Operation only with component trolley!
The placement machine may only be operated if there is a component trolley present
and docked at each location.
Fill any free locations with dummy feeder modules as described in
section 2.5.4
, page 92.
WARNING
DANGER OF CRUSHING!
Risk of crushing when docking and undocking the component trolley.
Always dock/undock the component trolley alone.
CAUTION
Risk of breaking handles!
Risk of breaking handles when transporting the component trolley.
When transporting the component trolley, do not lift it by its handles.
CAUTION
Risk of injuring limbs!
Risk of injuring limbs when docking and undocking.
When docking and undocking, make sure that there are no body limbs in the travel
area of the component trolley.
