1 Introduction Instruction manual SIPLACE TX 1.4 SIPLACE TX m From software version 714.0 12/2020 26 1.4.3 V acuum T ooling at the SIPLACE TX m 1 Fig. 1.4 - 1 V acuum T ooling at the SIPLACE TX m - overview (1) V acuum t…
Instruction manual SIPLACE TX 1 Introduction
From software version 714.0 12/2020 1.4 SIPLACE TX m
25
Very high accuracy 1
To achieve maximum accuracy, the SIPLACE TX m placement machines are equipped with high
resolution glass ceramic scales on the main axes and the C&P20 M3 or CPP M heads. A highly
rigid PCB conveyor and an additional fiducial rail are also used.
1.4.2 Placement Head Configurations
1
Placement
machine
Placement head Standard cameras Options
SIPLACE
TX2i m
C&P20 M3 / C&P20 M3 – Component camera,
type 48
– Component camera, type 49
SIPLACE
TX2i m 4 mm
C&P20 M3 / C&P20 M3 – Component camera,
type 48
– Component camera, type 49
SIPLACE
TX2 m
C&P20 M3 / C&P20 M3 – Component camera,
type 48
– Component camera, type 49
CPP M/CPP M – Component camera,
type 45
– Component camera, type 30
C&P20 M3 / CPP M – Component camera,
type 48
– Component camera,
type 45
– Component camera, type 49
– Component camera, type 30
1 Introduction Instruction manual SIPLACE TX
1.4 SIPLACE TX m From software version 714.0 12/2020
26
1.4.3 Vacuum Tooling at the SIPLACE TX m
1

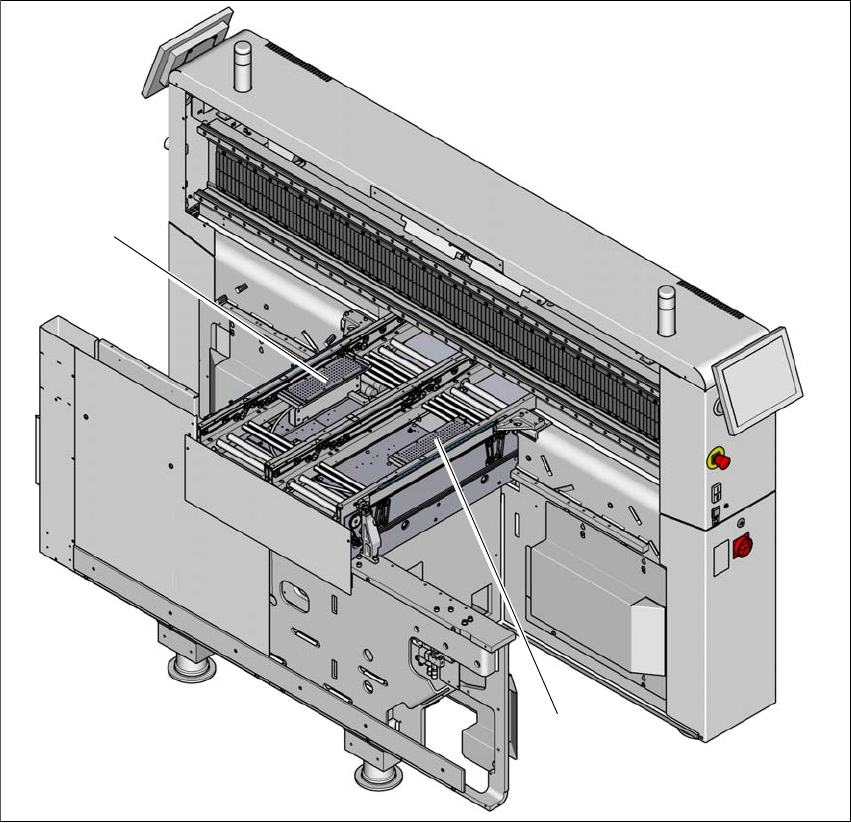

Fig. 1.4 - 1 Vacuum Tooling at the SIPLACE TX m - overview
(1) Vacuum tooling at location 1
(2) Vacuum tooling at location 2
(2)
(1)
Instruction manual SIPLACE TX 1 Introduction
From software version 714.0 12/2020 1.4 SIPLACE TX m
27
1

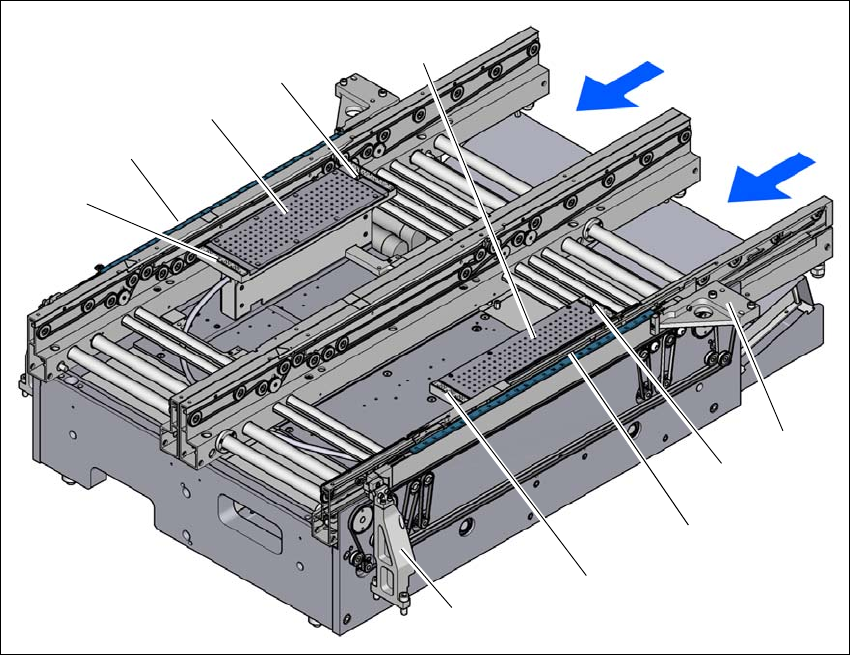

Fig. 1.4 - 2 Vacuum tooling with additional fiducial rail on dual conveyor
(1) Additional fiducial rail for lane 1 in X direction
(2) Vacuum tooling on lane 1
(3) Vacuum tooling on lane 2
(4) Additional fiducial rail for lane 2 in X direction
(5) Fixture of additional fiducial rail to machine frame
(6) Fiducial rail on the vacuum tooling along the Y axis
(2)
(4)
(3)
(1)
(5)
(5)
(T2)
(T1)
(6)
(6)
(6)
(6)
