Installationsanleitung_SuSE9.3_en.pdf - 第45页
Customized LRL SuSE 9.3 Installation Description 6. Any printers which have already been configured ar e displayed. Figure 4-3 7. Click the " Add " button to add a new printer. 8. Selec t the printer type "…
Installation Description Customized LRL SuSE 9.3

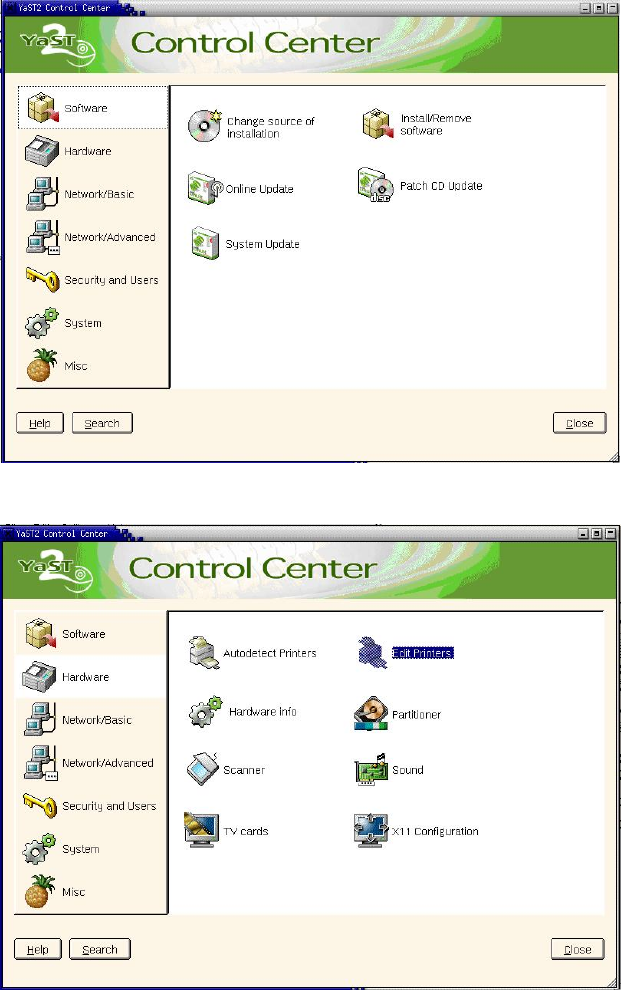

Figure 4-1
5. On the left, select the "Hardware" menu and then select the "Edit Printers" function on the right.
Figure 4-2
44 of 69
Customized LRL SuSE 9.3 Installation Description
6. Any printers which have already been configured are displayed.
Figure 4-3
7. Click the "Add" button to add a new printer.
8. Select the printer type "USB printer".
Figure 4-4
9. Confirm your entry with "Next".
45 of 69
Installation Description Customized LRL SuSE 9.3
10. Select the USB port the printer is connected to.
Figure 4-5
11. You can (should) click the "Test" button to test the connection to the printer.
Figure 4-6
12. Confirm the message by clicking "OK".
13. If the connection test fails, confirm the message with "OK", return to point
10 above and select a
different port.
Figure 4-7
If the printer is not detected on any port, cancel configuration (using the "Abort" button in the dialog
box shown in point
10 above) and check the BIOS settings again (see "4.5.2.1.1 Requirements:"
above).
46 of 69
