Installation Description Customized LRL SuSE 9.3

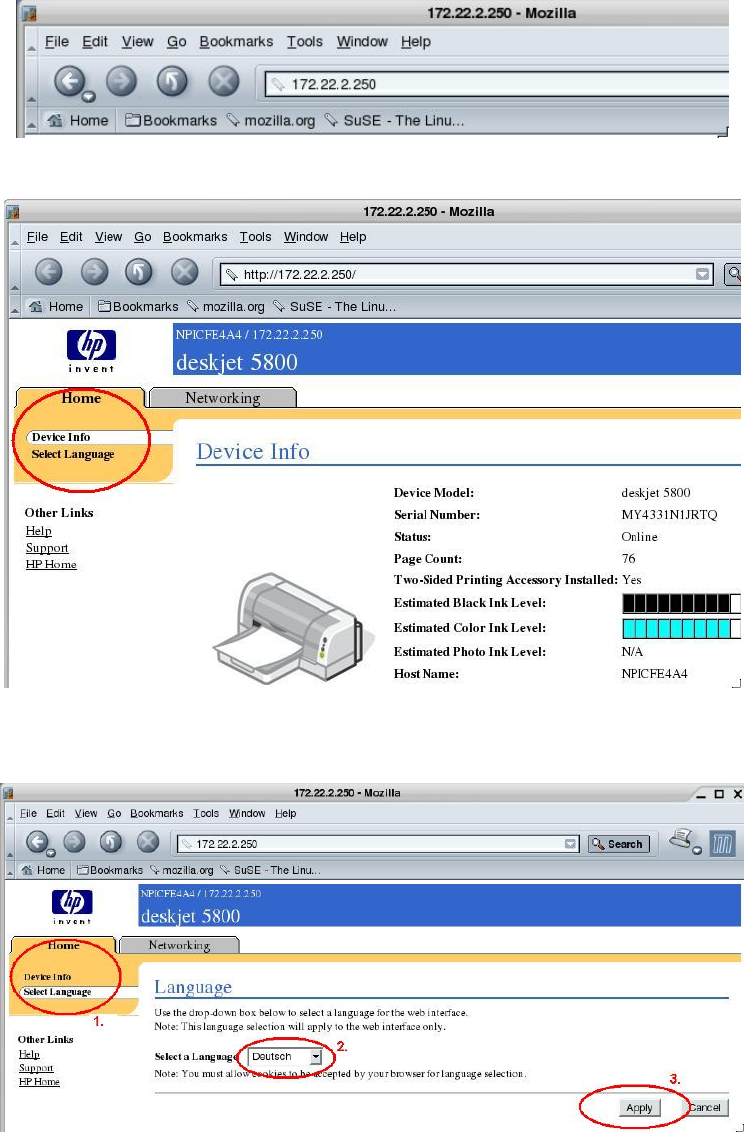

10. Establish a connection to the printer by entering the TCP/IP address of the printer in the address
field of the browser.
Figure 4-44
11. The device configuration of the printer is displayed.
Figure 4-45
12. The selection in the top left (indicated by a red circle) allows you to change the language to your
local language.
Figure 4-46
13. Confirm your selection with the "Apply" button.
14. The device selection is now shown in the selected language.
66 of 69
Customized LRL SuSE 9.3 Installation Description
15. The network settings are shown by clicking the "Network" (1) tab.
Figure 4-47
16. Set the option "IP Configuration Method" to "Manual" (2).
17. (3) Specify the details for
the printer name ("Host Name")
the TCP/IP address of the printer ("IP Address")
the subnet mask of the printer ("Subnet Mask")
the address of the default gateway.
18. Click the "Apply" button (4) to change the settings in the printer.
WARNING
If you change the address of the printer, the connection to the printer is
interrupted when you click the "Apply" button.
19. The configuration program still informs you that the settings were updated successfully.
Figure 4-48
67 of 69
Installation Description Customized LRL SuSE 9.3
68 of 69
20. Confirm the message by clicking "OK".
21. Close the browser with "File" / "Quit".
22. The computer must be rebooted to cancel the temporarily changed address. After you have
performed a shutdown, the computer reverts to the original addresses.
4.5.4.4 Configuring a wireless network.
The "HP Deskjet 5850" printer can also be operated in a wireless LAN.
The customer's network administrator must configure the printer for a wireless LAN.
NOTE
The use of wireless LAN devices is prohibited within Siemens AG!
Whether or not the printer can be operated in wireless mode at the customer's
site must be clarified on a case-by-case basis.
