Customized LRL SuSE 9.3 Installation Description
14. If the connection test was successful, confirm the message with "OK".
Figure 4-8
15. Confirm the dialog box shown in point 10 above by clicking the "Next" button.
16. Select the printer manufacturer and model:
Hewlett-Packard
DeskJet 2000C
Figure 4-9
NOTE
The model specified above must be selected!
17. Confirm the dialog box by clicking "Next".
47 of 69
Installation Description Customized LRL SuSE 9.3
18. You can specify a name for the printer: The suggested name "lp" can be accepted.
Figure 4-10
19. Confirm the dialog box by clicking "Next".
20. The next dialog box allows you to make further driver settings. You can accept the preset values
with "Next".
Figure 4-11
21. The next dialog box allows you to make further "hardware-independent settings". You can accept
the default settings with "Next".
22. The final dialog box shows all the printers now configured.
23. If more than one printer is installed, you must select the default printer (this is indicated by the
arrow in the left-hand column). Select the line containing the required printer and set it as the
default printer by clicking the "Set as default" button.
48 of 69
Customized LRL SuSE 9.3 Installation Description

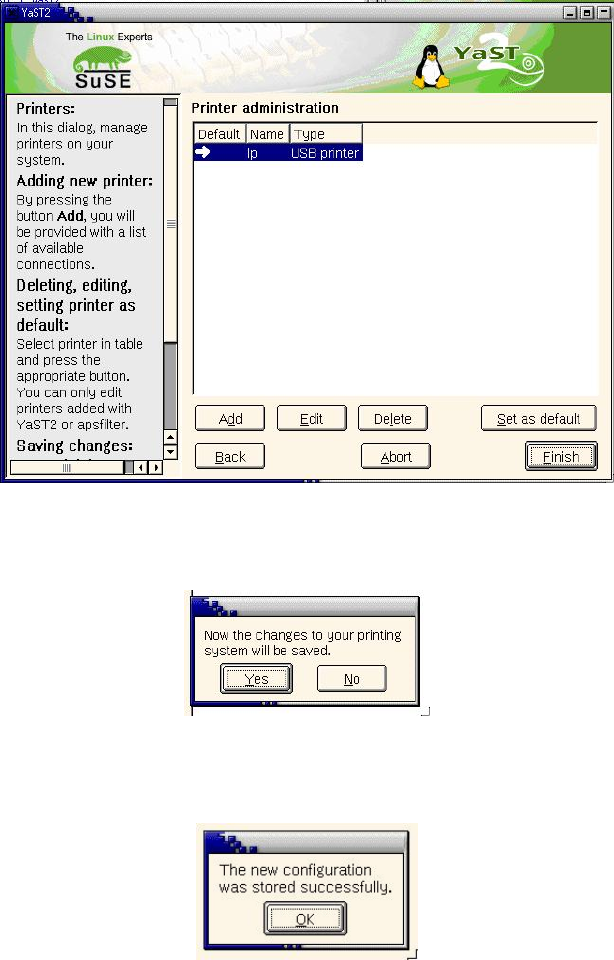

Figure 4-12
24. Exit the printer configuration by clicking the "Finish" button.
25. A message is displayed indicating that the settings will be saved.
Figure 4-13
26. Confirm the message with "Yes", otherwise the data specified will not be saved.
27. A message appears indicating that the data has been saved successfully.
Figure 4-14
28. Confirm the message by clicking "OK".
29. Finally, exit the "YaST2 Control Center" by clicking "Close".
30. You can now use the configured printer. It is not necessary to restart the line computer.
4.5.2.2 Local installation on the USB port under SuSE 9.0 / SuSE 9.3
4.5.2.2.1 Requirements
• Installed software "SIPLACE auteq-LINUX based on SuSE 9.0" or
• Installed software "SIPLACE auteq-LINUX based on SuSE 9.3".
• PC with USB port.
49 of 69
