Customized LRL SuSE 9.3 Installation Description

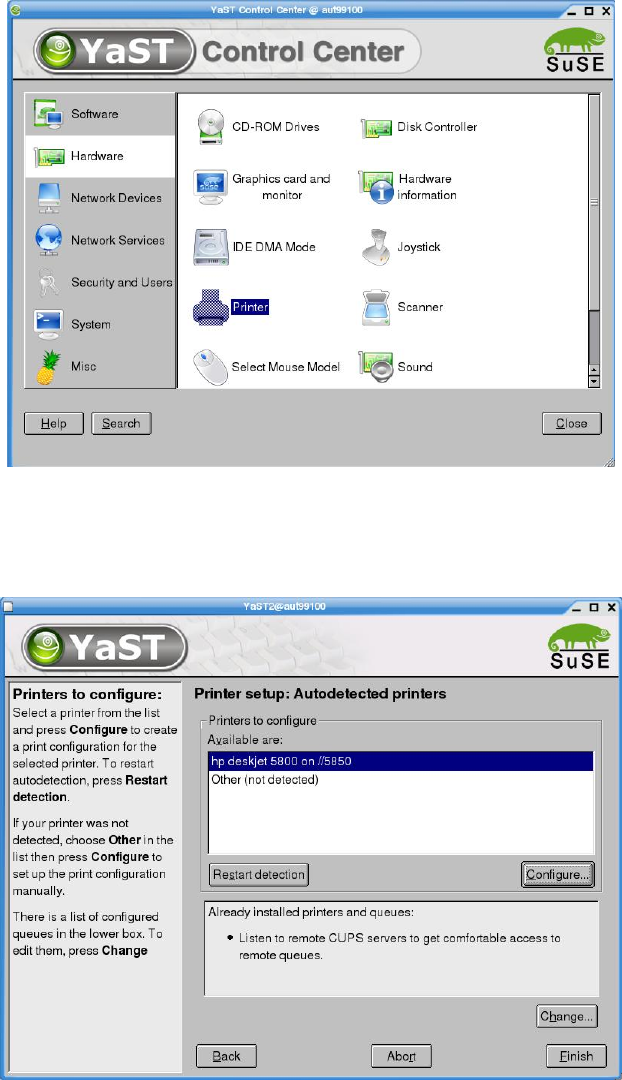

6. On the left, select the "Hardware" menu and then select the "Printer" function on the right.
Figure 4-16
7. Under normal circumstances, the printer type is detected automatically. You can then change the
settings by clicking the "Configure" button and continue at point Fehler! Verweisquelle konnte
nicht gefunden werden..
Figure 4-17
51 of 69
Installation Description Customized LRL SuSE 9.3
8. If the printer type is not detected automatically:

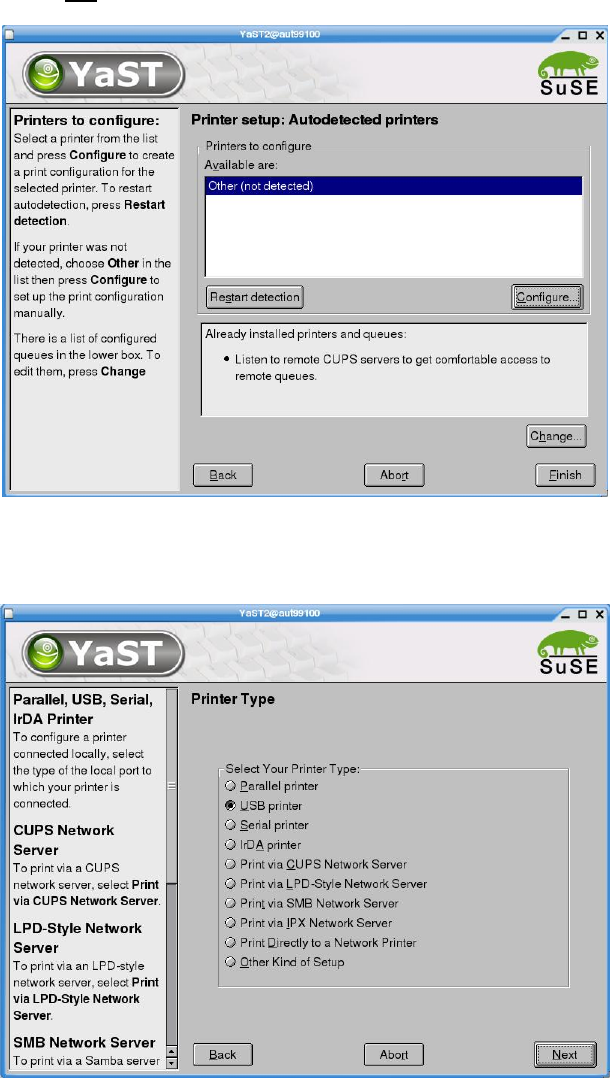

Figure 4-18
you can specify the printer type by clicking the "Configure" button.
9. Select the entry "USB printer".
Figure 4-19
10. Confirm your entry with "Next".
52 of 69
Customized LRL SuSE 9.3 Installation Description

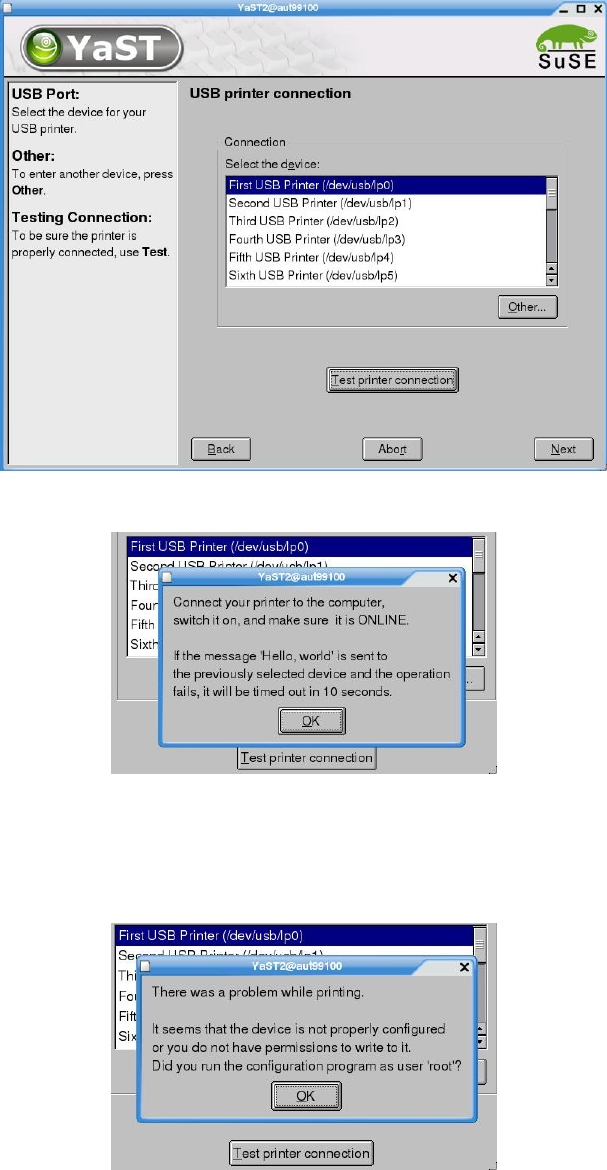

11. Select the USB port the printer is connected to.
Figure 4-20
12. You can (should) click the "Test printer connection" button to test the connection to the printer.
Figure 4-21
13. Confirm the message by clicking "OK".
14. If the connection test fails, confirm the message with "OK", return to point 11 above and select a
different port.
Figure 4-22
If the printer is not detected on any port, cancel configuration (using the "Abort" button in the dialog
box shown in point
11 above) and check the BIOS settings again (see "4.5.2.2.1 Requirements"
above).
53 of 69
