Installation Description Customized LRL SuSE 9.3

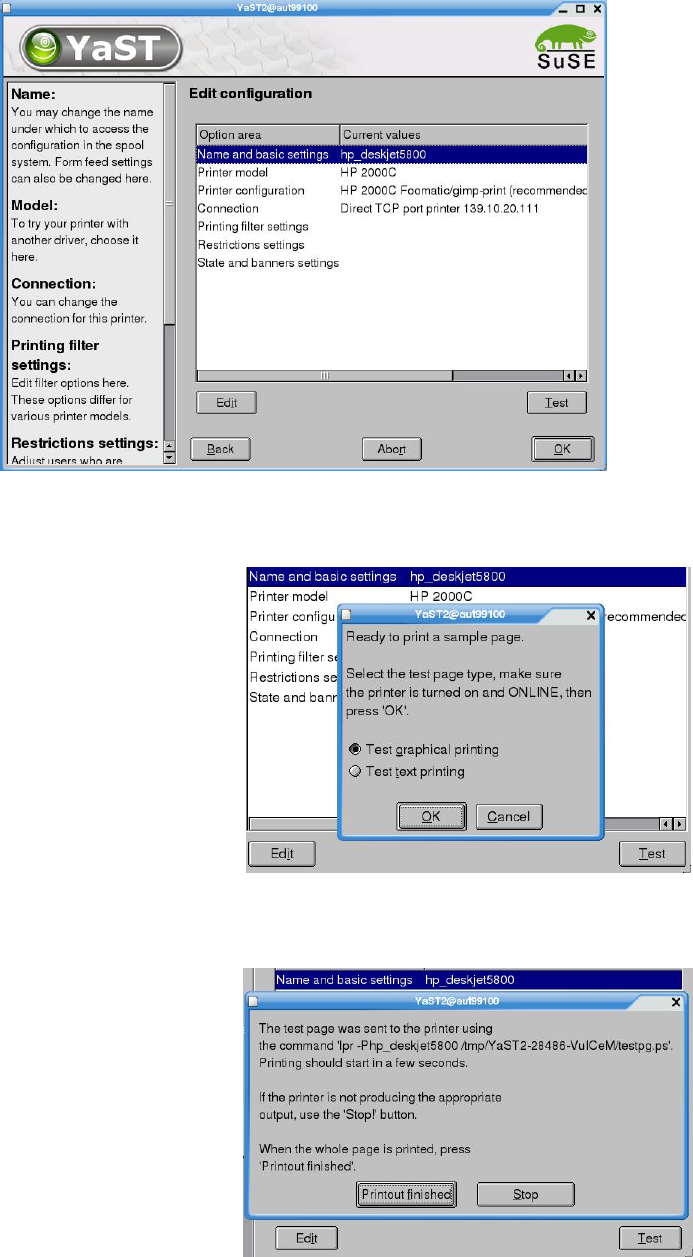

16. The printer settings are now displayed.
Figure 4-38
17. You can print a test page to test correct operation of the printer by clicking the "Test" button (you
can also skip this step and continue at point
19 below)
Figure 4-39
18. Once the test page has been printed, confirm this by clicking "Printout finished". If the page is not
printed correctly, you can stop the print operation with the "Stop" button.
Figure 4-40
19. Close the dialog box shown in Figure 4-38 by clicking "OK".
20. The dialog box shown in point
7 above then appears, with the exception that the printer you have
just installed now appears at the bottom.
62 of 69
Customized LRL SuSE 9.3 Installation Description

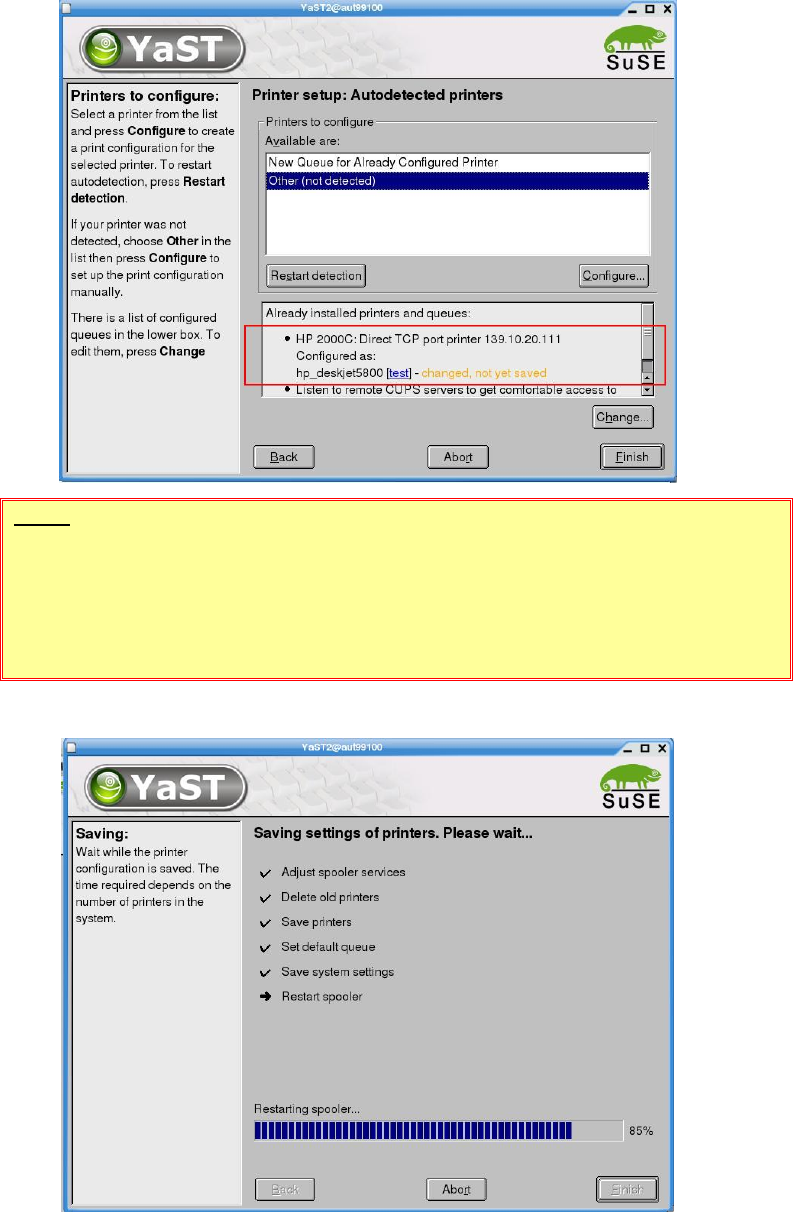

Figure 4-41
NOTE:
If several printers are installed, you must select the default printer. Click the
"Change" button, select the line containing the required printer and set it as the
default printer by clicking "Set as default".
The default printer is indicated by an arrow in the left column.
21. Click the "Finish" button to save the settings.
Figure 4-42
22. Close the "YaST Control Center" configuration tool by clicking "Close".
23. You can now use the configured printer. It is not necessary to restart the line computer.
63 of 69
Installation Description Customized LRL SuSE 9.3
64 of 69
4.5.4 Configuring the network address of the printer
4.5.4.1 General
The "HP Deskjet 5850" printer is supplied with a factory-set address. This is rarely within the address
range used by the customer.
The easiest way of identifying the address currently set on the printer is to print out the printer
configuration.
The address must be changed to allow the line computer to communicate with the printer. To do this, it
is necessary to temporarily change the address of a computer (e.g. a line computer) to the address
range set on the printer in order to allow this computer to access the printer configuration.
The printer is configured using a graphical configuration program which allows the address to be
changed to the new value, for instance.
WARNING
If a productive line computer is used to configure the printer, it is possible that
the temporary change of the line computer's network address causes
communication with the stations to be interrupted.
You should therefore remember to first set the stations to "Stand alone" mode
to avoid any interruptions to production.
4.5.4.2 Requirements
• The printer must be connected to the line computer network over a network cable.
• A network-capable computer with a working operating system (the following instructions refer to
SuSE Linux 9.0).
