Customized LRL SuSE 9.3 Installation Description
Figure 4-29
NOTE:
If several printers are installed, you must select the default printer. Click the
"Change" button, select the line containing the required printer and set it as the
default printer by clicking "Set as default".
The default printer is indicated by an arrow in the left column.
26. Click the "Finish" button to save the settings.
Figure 4-30
27. Close the "YaST Control Center" configuration tool by clicking "Close".
28. You can now use the configured printer. It is not necessary to restart the line computer.
4.5.3 Configuration as a network printer
You can only configure the printer as a network printer under the "auteq Linux 9.0" operating system.
57 of 69
Installation Description Customized LRL SuSE 9.3
4.5.3.1 Requirements
• Installed software "SIPLACE auteq-LINUX based on SuSE 9.0".
• PC with a configured network card
• An appropriate network address has to be set on the printer (see "
4.5.4 Configuring the network
address of the printer
").
4.5.3.2 Installation procedure
1. Log into the line computer under GNOME as the user "plr".
2. The printer must be connected to the (in-house) network.
3. Switch on the printer.
4. Open a terminal window by selecting "Operating system level" from the "Options" menu.
5. Enter the commands
su -c yast2
(and enter the "root" password) to start the "YaST Control Center" configuration tool.

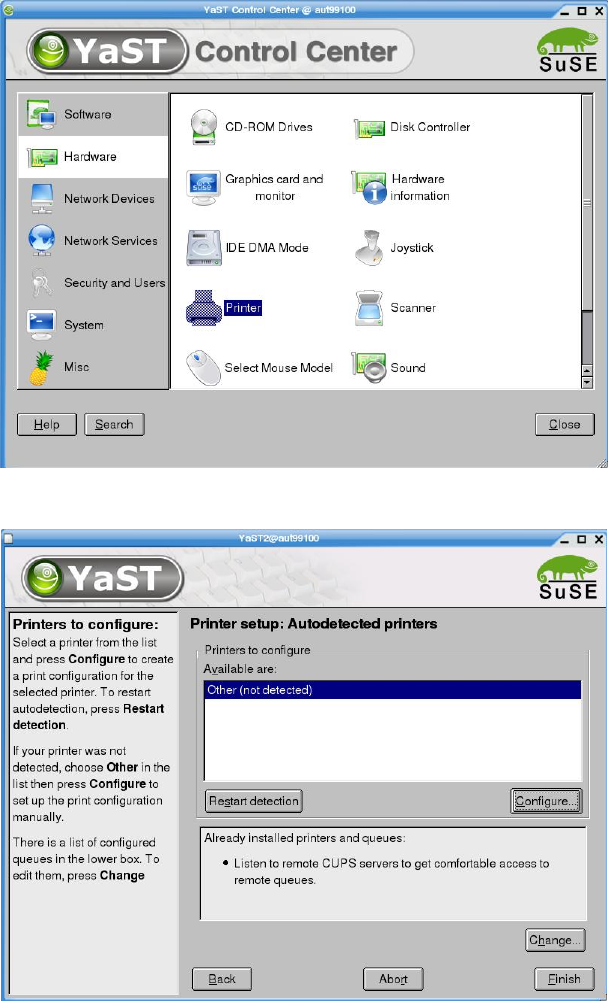

Figure 4-31
6. On the left, select the "Hardware" menu and then select the "Printer" function on the right.
58 of 69
Customized LRL SuSE 9.3 Installation Description
Figure 4-32
7. Specify the printer type by clicking the "Configure" button.
Figure 4-33
59 of 69
