Installation Description Customized LRL SuSE 9.3
22. You can print a test page to test correct operation of the printer by clicking the "Test" button (you
can also skip this step and continue at point
24 below)
Figure 4-27
23. Once the test page has been printed, confirm this by clicking "Printout finished". If the page is not
printed correctly, you can stop the print operation with the "Stop" button.
Figure 4-28
24. Close the dialog box shown in point 21 above by clicking "OK".
25. The dialog box shown in point
7 above then appears, with the exception that the printer you have
just installed now appears at the bottom.
56 of 69
Customized LRL SuSE 9.3 Installation Description
Figure 4-29
NOTE:
If several printers are installed, you must select the default printer. Click the
"Change" button, select the line containing the required printer and set it as the
default printer by clicking "Set as default".
The default printer is indicated by an arrow in the left column.
26. Click the "Finish" button to save the settings.
Figure 4-30
27. Close the "YaST Control Center" configuration tool by clicking "Close".
28. You can now use the configured printer. It is not necessary to restart the line computer.
4.5.3 Configuration as a network printer
You can only configure the printer as a network printer under the "auteq Linux 9.0" operating system.
57 of 69
Installation Description Customized LRL SuSE 9.3
4.5.3.1 Requirements
• Installed software "SIPLACE auteq-LINUX based on SuSE 9.0".
• PC with a configured network card
• An appropriate network address has to be set on the printer (see "
4.5.4 Configuring the network
address of the printer
").
4.5.3.2 Installation procedure
1. Log into the line computer under GNOME as the user "plr".
2. The printer must be connected to the (in-house) network.
3. Switch on the printer.
4. Open a terminal window by selecting "Operating system level" from the "Options" menu.
5. Enter the commands
su -c yast2
(and enter the "root" password) to start the "YaST Control Center" configuration tool.

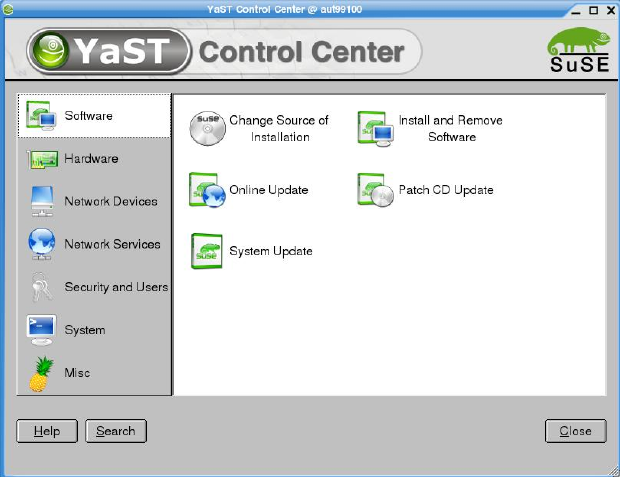

Figure 4-31
6. On the left, select the "Hardware" menu and then select the "Printer" function on the right.
58 of 69
