Installation Description Customized LRL SuSE 9.3 22. You can print a test page to test correct operation of the printer by clicking the " Test " bu tton (you can also skip this step and continue at point 24 bel…
Customized LRL SuSE 9.3 Installation Description

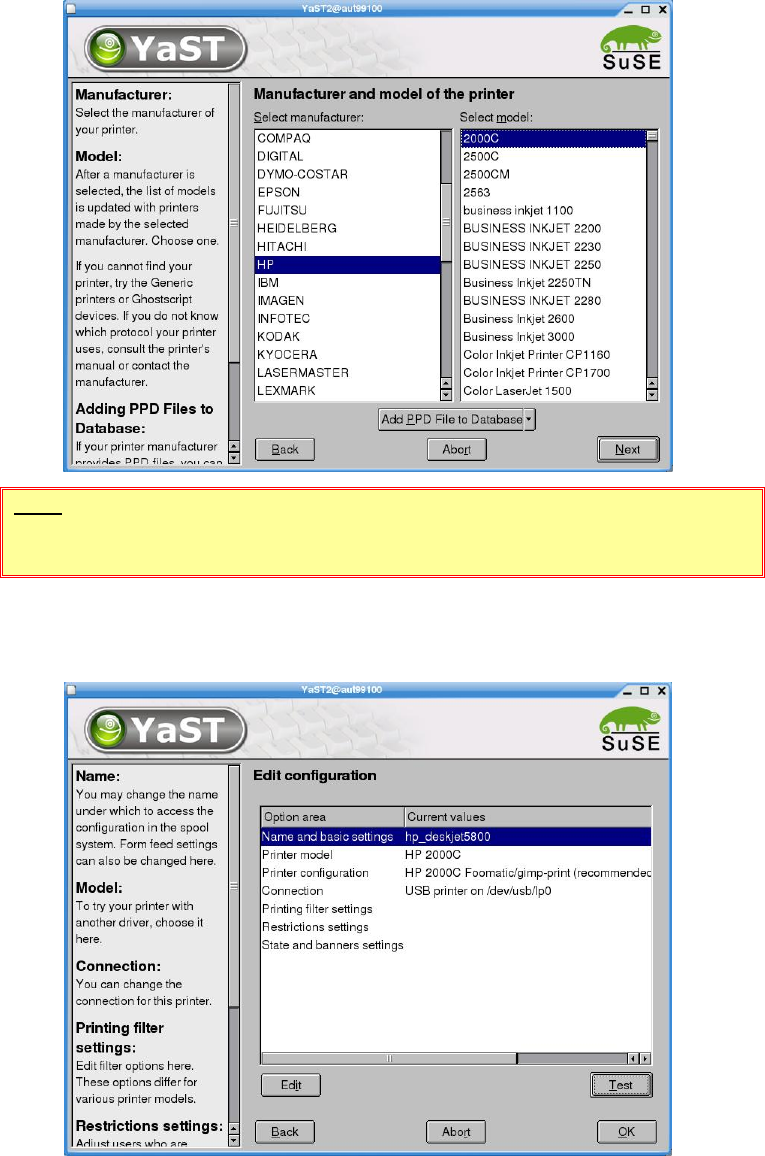

19. Select the printer manufacturer and model:
HP (Hewlett-Packard)
(DeskJet) 2000C
Figure 4-25
NOTE
The model specified above must be selected!
20. Confirm your entries by clicking "Next".
21. The printer settings are now displayed.
Figure 4-26
55 of 69
Installation Description Customized LRL SuSE 9.3

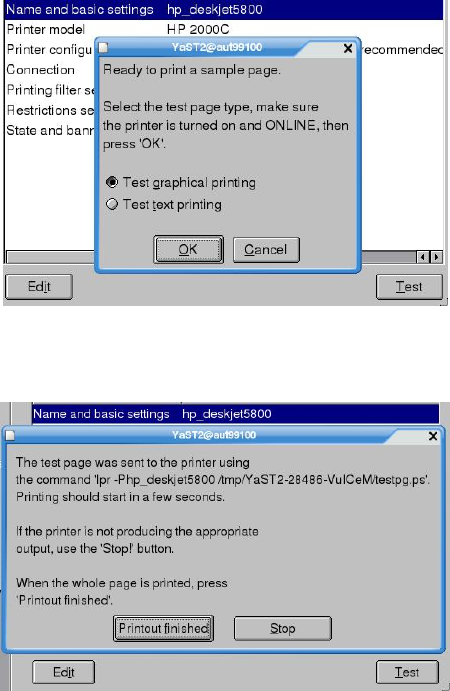

22. You can print a test page to test correct operation of the printer by clicking the "Test" button (you
can also skip this step and continue at point
24 below)
Figure 4-27
23. Once the test page has been printed, confirm this by clicking "Printout finished". If the page is not
printed correctly, you can stop the print operation with the "Stop" button.
Figure 4-28
24. Close the dialog box shown in point 21 above by clicking "OK".
25. The dialog box shown in point
7 above then appears, with the exception that the printer you have
just installed now appears at the bottom.
56 of 69
Customized LRL SuSE 9.3 Installation Description

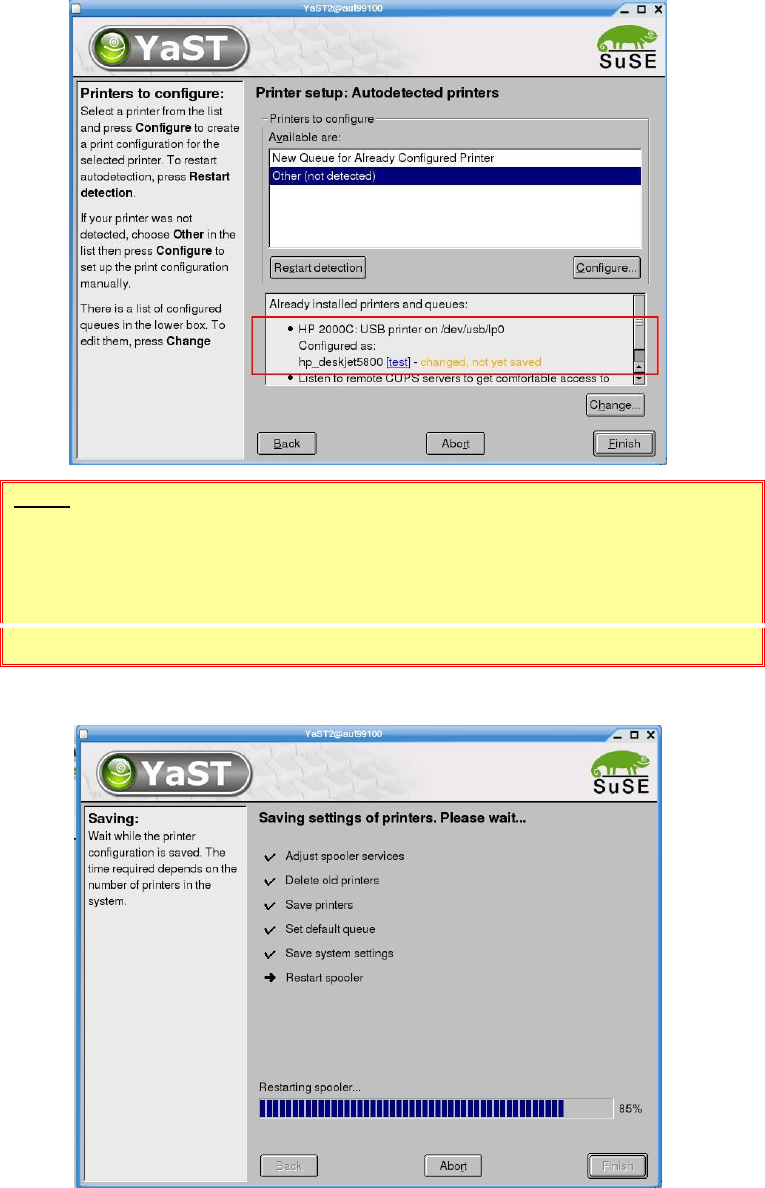

Figure 4-29
NOTE:
If several printers are installed, you must select the default printer. Click the
"Change" button, select the line containing the required printer and set it as the
default printer by clicking "Set as default".
The default printer is indicated by an arrow in the left column.
26. Click the "Finish" button to save the settings.
Figure 4-30
27. Close the "YaST Control Center" configuration tool by clicking "Close".
28. You can now use the configured printer. It is not necessary to restart the line computer.
4.5.3 Configuration as a network printer
You can only configure the printer as a network printer under the "auteq Linux 9.0" operating system.
57 of 69
