User Manual SIPLACE D3 6 Station extensions From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer 289 6.1.2 Nozzle changer for the 6-segment Collect&Place head Item no. 001 19662-xx Nozzle changer HF/…
6 Station extensions User Manual SIPLACE D3
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
288
6.1.1.8 "Row 2" nozzle changer for the 12-segment Collect&Place head
Item no. 00119663-xx Nozzle changer 2, HF/X/D3, 12-segment C&P head
The "row 2" nozzle changer may be installed at the following locations:
Locations 1, 3 and 4 (see Fig. 6.1 - 2
, page 283)
The retrofit package contains an assembly kit and a nozzle take-off device with reject bin, in ad-
dition to the nozzle changer.
6

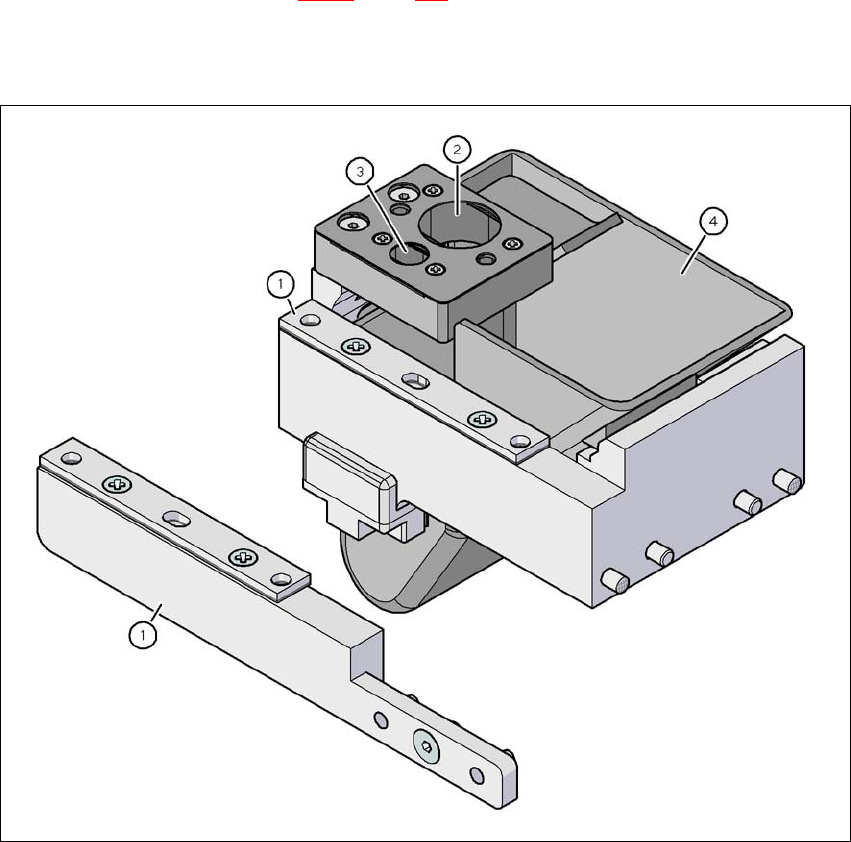

Fig. 6.1 - 6 Assembly kit for the "row 2" nozzle changer
(1) Assembly kit for the "row 2" nozzle changer
(2) Nozzle take-off device for type 8xx nozzles
(3) Nozzle take-off device for type 9xx nozzles
(4) Nozzle reject bin
User Manual SIPLACE D3 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.1 Nozzle changer
289
6.1.2 Nozzle changer for the 6-segment Collect&Place head
Item no. 00119662-xx Nozzle changer HF/X/D3, 6-segment C&P head
6
Fig. 6.1 - 7 Nozzle changer for the 6-segment Collect&Place head
6.1.2.1 Description
This nozzle changer can hold up to 6 magazines, each with 6 nozzle holders. There are two types
of magazine available: magazines for type 8xx nozzles and magazines for type 9xx nozzles. The
magazines are seated on a common support. They are centered using two parallel pins and fixed
in place with clips.
6 Station extensions User Manual SIPLACE D3
6.1 Nozzle changer From software version SR.605.xx 07/2008 EN Edition
290
6.1.2.2 Technical data
6
Nozzle changer for the 6-segment Collect&Place head
Dimensions (length x width x height) 448 x 122.5 x 97.7 mm³
Number of nozzle holders 6
Nozzle types 8xx, 9xx
Nozzle changeover time approx. 2s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
