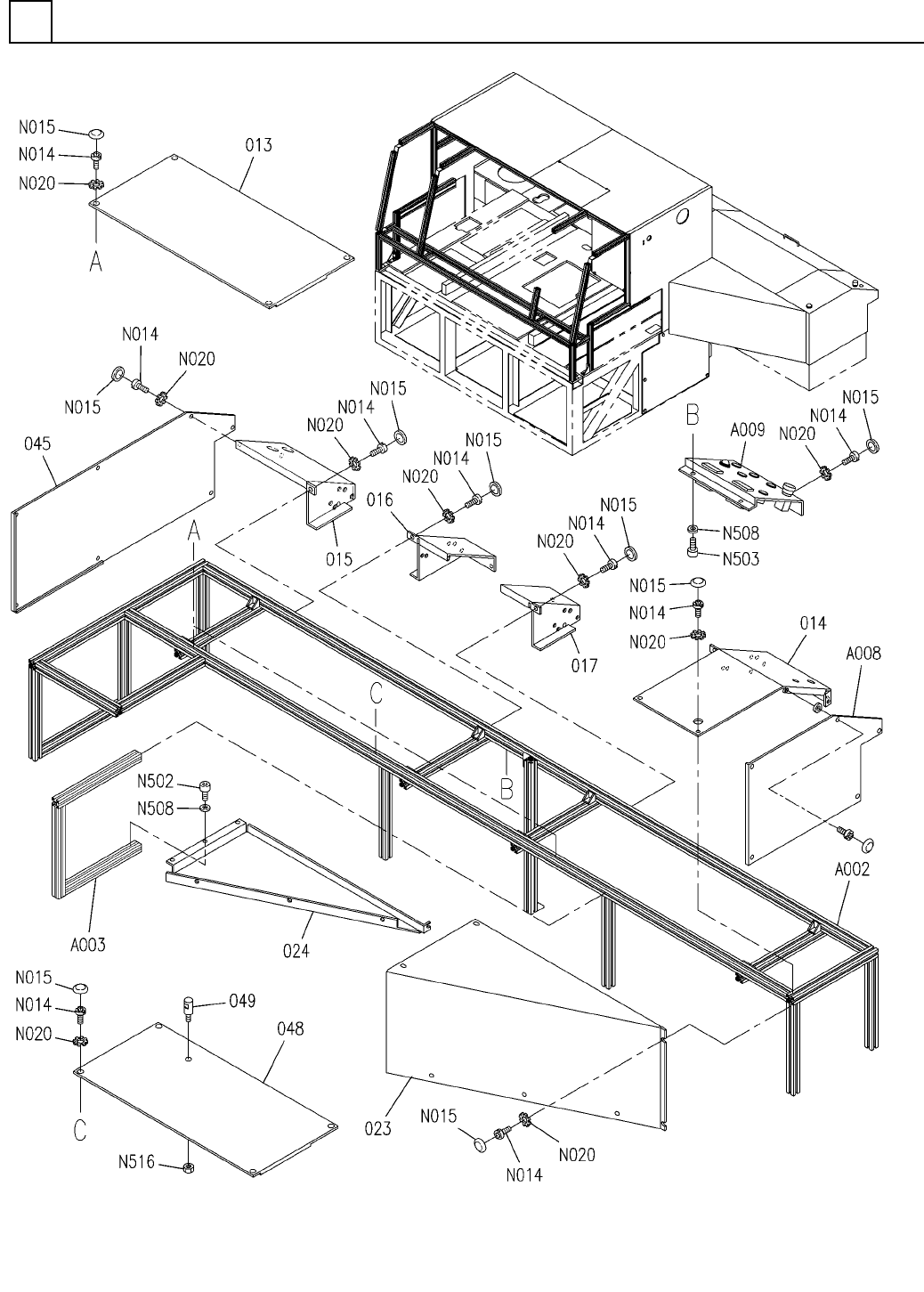

ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ4）
COVER SECT.(80 STATION-4)
6
FN610130678AA_18-4
M85
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部（80ｽﾃｰｼｮﾝ4）
COVER SECT.(80 STATION-4)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A002
N610157248AC
FRAME
1
A003
N610157250AA
FRAME
S
1
A008
N610116800AA
COVER
1
A009
N610130674AA
REAR PANEL UNIT
2013 N210093217AA
COVER
1014 N210100762AC
COVER
1
015 N210100809AC
COVER
1
016 N210152363AA
COVER
1017 N210152364AA
COVER
1023 N210155060AA
COVER
1
024 N210093236AA
BRACKET
1
045 N210099105AA
COVER
1048 N210156601AA
COVER
1049 N210149172AB
ROD
JB-A M5X8 +
46
N014
N510038044AA
BOLT
M5X12
46
N015
N986YYYY-814
CAP
5 External toothed Steel Unichrome white (Tri
46
N020
N510018765AA
TOOTHED LOCK WASHER
M5X10-10.9 A2J (Trivalent)
4
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
2
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
6
N508
N510018499AA
ROUND PLAIN WASHER
M8-6H-4T A2J (Trivalent)
1
N516
N510017877AA
HEXAGON NUT
M86
FN610130678AA_18-4
