ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部 (切欠き基板対応部) LOADER & UNLOADER SE CT.(P.C.B. C UTTING TYPE SE CT.) 5 FN610088541AA_05 M47
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
5
ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部(ｱﾝﾛｰﾀﾞ部2)
LOADER & UNLOADER SECT.(UNLOADER SECT.-2)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
001 N210197346AA
PLATE
1002 N210152523AG
PLATE
2003 1099705118
PULLEY
4
004 N210149411AA
PLATE
1007 N210149405AA
SHAFT
2012 X02P05031
SPACER
1
013 N210149418AB
BRACKET
1
015 N210160468AC
STOPPER
1016 N210154679AA
BRACKET
1019 N210066364AA
BRACKET
MB019200
4
N004
N510058700AA
PULLEY
0IK1GN-CW2J
2
N006
N510031297AA
MOTOR
0GN9K
2
N007
N510058907AA
GEAR HEAD
KANA 40-SUS-JL
1
N011
N510061011AA
CHAIN
P919T
2
N012
N310P919T
SWITCH
M5X12-10.9 A2J (Trivalent)
4
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
KJMS-32-M6X20
1
N015
N510059093AA
KNOB
M5X6-10.9 A2J (Trivalent)
16
N501
N510017414AA
HEX. SOCKET HEAD CAP BOLT
M3X6-10.9 A2J (Trivalent)
8
X609
N510017337AA
HEX. SOCKET HEAD CAP BOLT
4 10H A2J (Trivalent)
2
X552
N510018479AA
ROUND PLAIN WASHER
M5X35-6g 4T A2J (Trivalent)
1
N503
N510017749AA
HEXAGON HEAD BOLT
M4-6H-4T A2J (Trivalent)
4
X592
N510017855AA
HEXAGON NUT
M5-6H-4T A2J (Trivalent)
2
X593
N510017862AA
HEXAGON NUT
M4X8-45H A2J (Trivalent)
2
N504
N510018440AA
HEX. SOCKET SET SCREW
M5X8-10.9 A2J (Trivalent)
2
X507
N510017419AA
HEX. SOCKET HEAD CAP BOLT
M5X12-6g 4T A2J (Trivalent)
3
N507
N510017741AA
HEXAGON HEAD BOLT
M4X6-10.9 A2J (Trivalent)
2
X504
N510017376AA
HEX. SOCKET HEAD CAP BOLT
M3X8-10.9 A2J (Trivalent)
2
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M46
FN610128953AA_19-2

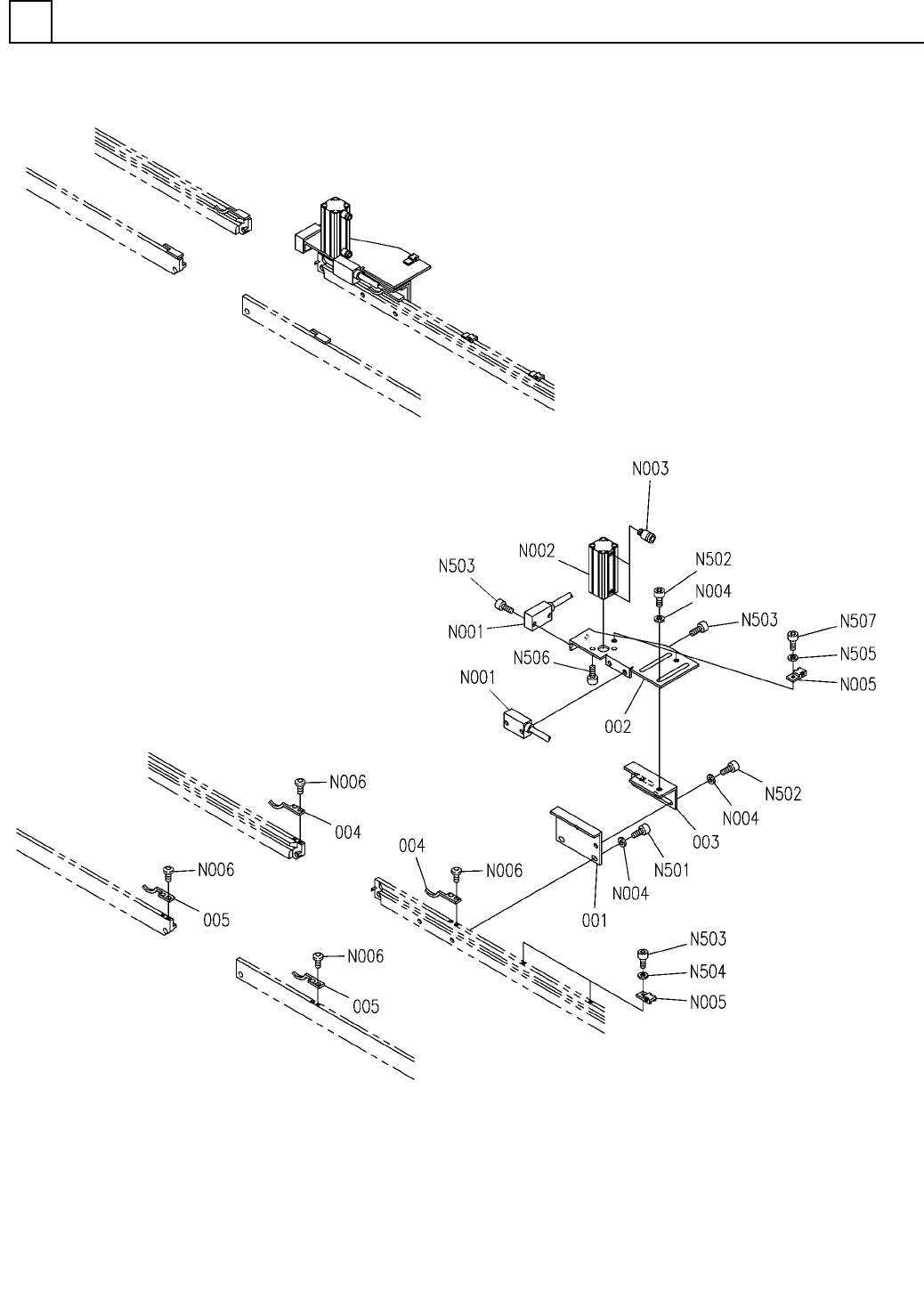

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(切欠き基板対応部)
LOADER & UNLOADER SECT.(P.C.B. CUTTING TYPE SECT.)
5
FN610088541AA_05
M47
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
5
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(切欠き基板対応部)
LOADER & UNLOADER SECT.(P.C.B. CUTTING TYPE SECT.)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610088541AA
NOTCH TYPE P. C. BOARD UNIT
1001 N210099758AA
BRACKET
1002 N210147862AA
SLIDER
1
003 N210108317AA
SLIDER
2004 N210173566AA
PLATE
2005 N210173567AA
PLATE
M4X12-10.9 A2J (Trivalent)
4
N501
N510017346AA
HEX. SOCKET HEAD CAP BOLT
M4X10-10.9 A2J (Trivalent)
4
N502
N510017344AA
HEX. SOCKET HEAD CAP BOLT
M3X8-10.9 A2J (Trivalent)
6
N503
N510017341AA
HEX. SOCKET HEAD CAP BOLT
3 10H A2J (Trivalent)
2
N504
N510018494AA
ROUND PLAIN WASHER
4 10H A2J (Trivalent)
2
N505
N510018497AA
ROUND PLAIN WASHER
M4X8-10.9 A2J (Trivalent)
2
N506
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M4X5-10.9 A2J (Trivalent)
2
N507
N510017372AA
HEX. SOCKET HEAD CAP BOLT
P919T
2
N001
N310P919T
SWITCH
ACQ16X40-QSGTRA0013B
1
N002
N510067295AA
CYLINDER
KQ2S06-M5
2
N003
KXF0DZ7YA00
FITTING
M4
6
N004
N510020099AA
WASHER
CTAM1
4
N005
KXFP6F86A00
CLAMP
M3X6-10.9 A2J (Trivalent)
8
N006
N510017513AA
HEX. SOCKET BUTTON HEAD BOL
M48
