ｶﾊﾞｰ部（40 ｽﾃｰｼｮﾝ1） COVER SECT .(40 STATION-1 ) 6 FN610125947AA_19-1 M63
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6
ｶﾊﾞｰ部(ﾌﾛﾝﾄｶﾊﾞｰ部5)
COVER SECT.(FRONT COVER SECT.-5)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
A001
N610131662AA
DOOR UNIT
1004 N210148413AE
COVER
1024 N210149456AC
COVER
JB-A M5X8 +
18
N002
N510038044AA
BOLT
M5X12
18
N003
N986YYYY-814
CAP
5 External toothed Steel Unichrome white (Tri
18
N501
N510018765AA
TOOTHED LOCK WASHER
M62
FMTKA005767AA_02-5
ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ1）
COVER SECT.(40 STATION-1)
6
FN610125947AA_19-1
M63
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
6

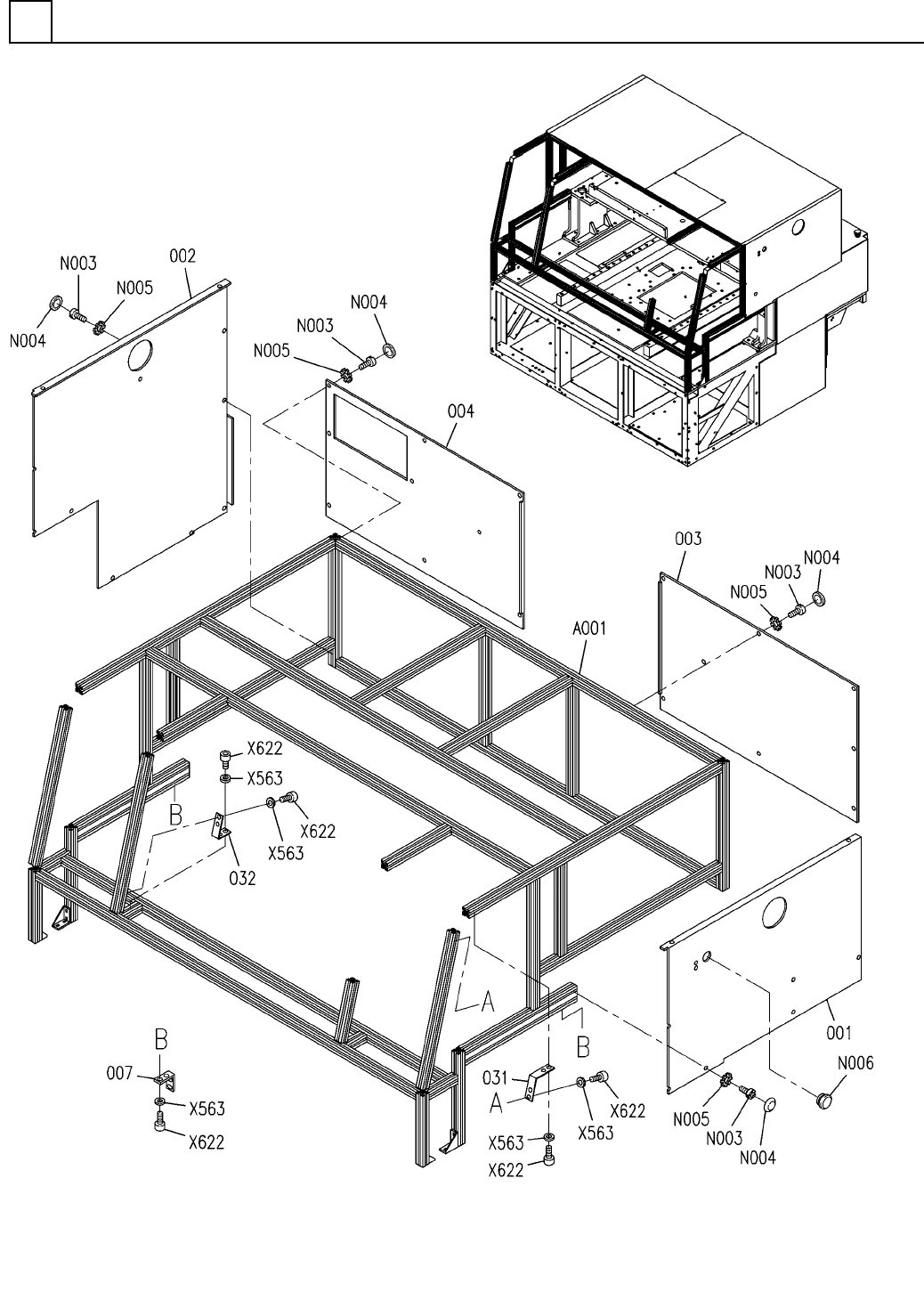

ｶﾊﾞｰ部（40ｽﾃｰｼｮﾝ1）
COVER SECT.(40 STATION-1)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610125947AA
COVER UNIT
1
A001
N610157249AA
FRAME
1001 N210182727AA
COVER
1
002 N210182743AA
COVER
1003 N210148423AB
COVER
1004 N210174679AB
COVER
2
007 N210116149AA
BRACKET
3
031 N210148421AA
BRACKET
4032 N210148422AA
BRACKET
JB-A M5X8 +
35
N003
N510038044AA
BOLT
M5X12
35
N004
N986YYYY-814
CAP
5 External toothed Steel Unichrome white (Tri
35
N005
N510018765AA
TOOTHED LOCK WASHER
C-30-BW-25-2,WHITE
1
N006
N980C30B-120
GROMMET
5 10H A2J (Trivalent)
38
X563
N510018499AA
ROUND PLAIN WASHER
M5X10-10.9 A2J (Trivalent)
38
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M64
FN610125947AA_19-1
