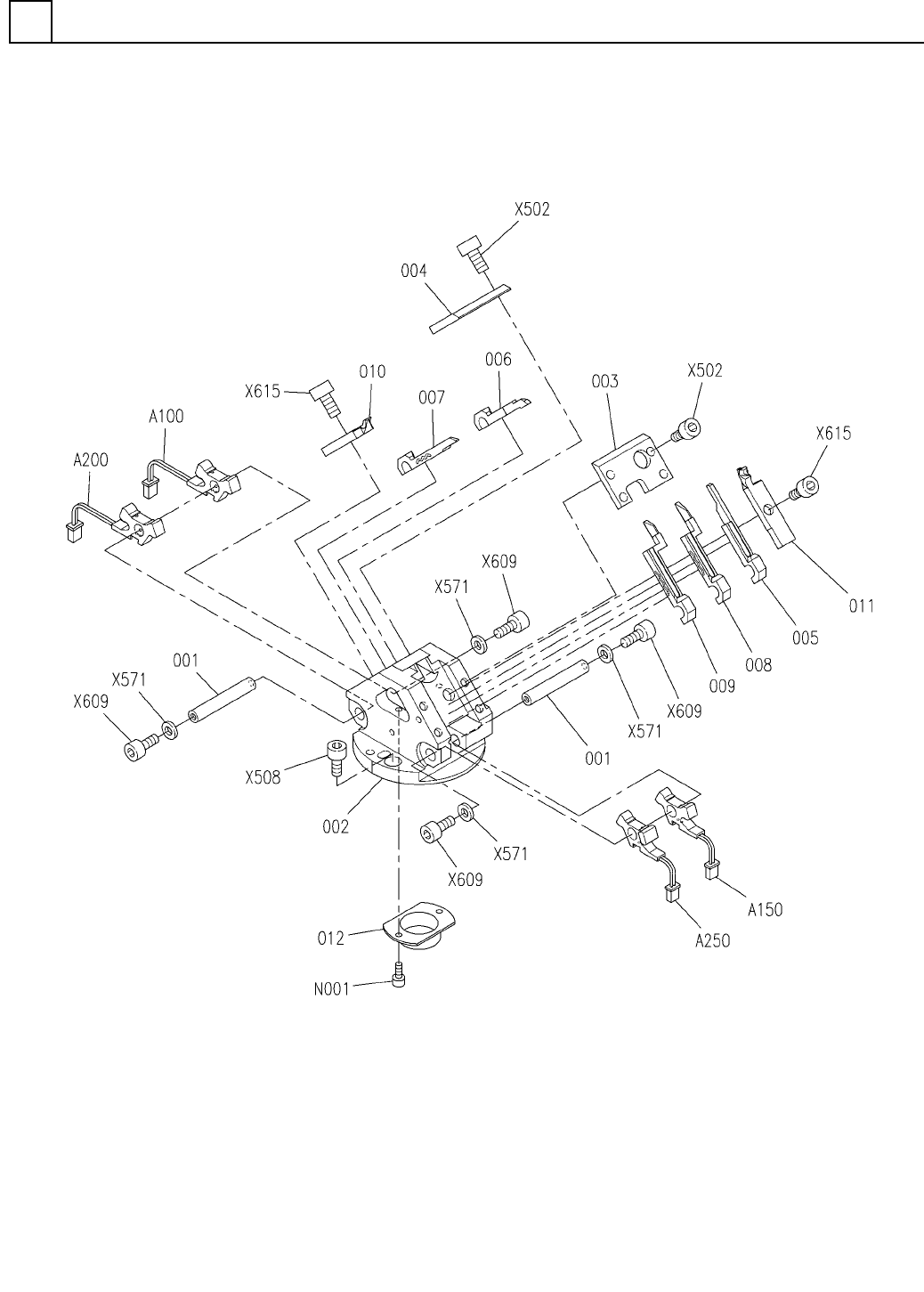

ｱﾝﾋﾞﾙ上部(35°<P=7.5mm>)(3P)
UPPER ANVIL SECT.(35 DEG<P=7.5mm>)(3P)
11
FN610099025AA_03
M167
PART No.
ｲﾗｽﾄ
No.
REF
No.
   
PART NAME
REMARKSQ'TY
11
ｱﾝﾋﾞﾙ上部(35°<P=7.5mm>)(3P)
UPPER ANVIL SECT.(35 DEG<P=7.5mm>)(3P)
部 品 名品  番 個数 備 考
R
2
R
3
R
1
1
N610099025AA
UPPER ANVIL UNIT
1
A100
N610082092AA
LEVER
1
A150
N610082093AA
LEVER
1
A200
N610099024AA
LEVER
1
A250
N610099491AA
LEVER
2001 X02G51201
PIN
1
002 MTPA003037AA
MAIN BODY
2
004 X01L51003
GUIDE PLATE
1005 N210120093AC
CUTTER
2006 N210110628AB
CUTTER
1
008 N210120094AC
CUTTER
2
009 N210120092AB
CUTTER
1010 N210200434AA
RING
M2X5-10.9 A2J (Trivalent)
2
N001
N510017258AA
HEX. SOCKET HEAD CAP BOLT
M3X8-10.9 A2J (Trivalent)
12
X502
N510017341AA
HEX. SOCKET HEAD CAP BOLT
M4X8-10.9 A2J (Trivalent)
2
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT
M5X12-10.9 A2J (Trivalent)
2
X508
N510017390AA
HEX. SOCKET HEAD CAP BOLT
3 10H A2J (Trivalent)
8
X551
N510018478AA
ROUND PLAIN WASHER
5 10H A2J (Trivalent)
2
X553
N510018480AA
ROUND PLAIN WASHER
M3
4
X571
N510020098AA
WASHER
M168
FN610099025AA_03
ｱﾝﾋﾞﾙ上部(35°<P=10mm>)(4P)
UPPER ANVIL SECT.(35 DEG<P=10mm>)(4P)
11
FN610113335AA_04
M169
