ﾌﾟﾘﾝﾄ基板搬送部 (ｷｬﾘｱ部) P.C.B. TRANSFER SECT .(CARRIER SE CT.) 14 FN610131957AA_04 M183

PART No.

ｲﾗｽﾄ

No.

REF

No.

PART NAME

REMARKSQ'TY

14

ﾌﾟﾘﾝﾄ基板搬送部(2)

P.C.B. TRANSFER SECT.(2)

部品名品番個数備考

R

2

R

3

R

1

1

001 N210072140AA

SHAFT

1003 N210141901AA

BLOCK

1005 N210134500AG

BLOCK

1

008 N210136779AB

RACK

1010 N210133905AD

BLOCK

2012 N210141898AA

BLOCK

1

016 N210141928AA

DOG FOR SENSOR

1

019 104140601101

LEVER

D=3.60-D=4.0

1020 1010244015

PIN

1021 N210156338AB

LEVER

1

022 N210150971AB

PLATE

1

023 N210156339AA

PLATE

1024 N210153845AA

ROD

1025 N210157798AA

LEVER

1

026 N210157799AA

LEVER

1027 N210151137AA

PIPE

2028 N210116880AA

BLOCK

1

029 N210150965AA

BRACKET

1

030 N210157854AA

PLATE

1031 1087116009

SPRING

RB1006

2

N004

N437RB1006

SHOCK-ABSORBER

MD-20X30-S-2CS1-G

1

N007

N510059972AA

CYLINDER

M4X10-45H A2J (Trivalent)

1

N010

N510018427AA

HEX. SOCKET SET SCREW

K5B1410

1

N013

N510022573AA

BUSHING

696ZZ

2

N014

XLC696ZZ

BALL BEARING

6902ZZ

2

N016

XLC6902ZZ

BALL BEARING

PSL6M5A

2

N017

MTNP000795AA

SPEED CONTROLLER

RBQ1604

1

N018

KXF0DYM0A00

SHOCK-ABSORBER

625ZZ

1

N019

KXF00L3AA00

BEARING

M3X6-10.9 A2J (Trivalent)

2

X609

N510017337AA

HEX. SOCKET HEAD CAP BOLT

M4X10-10.9 A2J (Trivalent)

2

X505

N510017344AA

HEX. SOCKET HEAD CAP BOLT

M4X16-10.9 A2J (Trivalent)

4

X506

N510017351AA

HEX. SOCKET HEAD CAP BOLT

M4X20-10.9 A2J (Trivalent)

4

X617

N510017354AA

HEX. SOCKET HEAD CAP BOLT

M5X12-10.9 A2J (Trivalent)

10

X508

N510017390AA

HEX. SOCKET HEAD CAP BOLT

M5X16-10.9 A2J (Trivalent)

4

X509

N510017395AA

HEX. SOCKET HEAD CAP BOLT

M5X20-10.9 A2J (Trivalent)

3

X510

N510017398AA

HEX. SOCKET HEAD CAP BOLT

M5X25-10.9 A2J (Trivalent)

2

X623

N510017399AA

HEX. SOCKET HEAD CAP BOLT

M5X30-10.9 A2J (Trivalent)

1

X624

N510017401AA

HEX. SOCKET HEAD CAP BOLT

M5X50-10.9 A2J (Trivalent)

1

X628

N510017409AA

HEX. SOCKET HEAD CAP BOLT

M6X25-10.9 A2J (Trivalent)

2

X514

N510017437AA

HEX. SOCKET HEAD CAP BOLT

M6X16-10.9 A2J (Trivalent)

2

X512

N510017433AA

HEX. SOCKET HEAD CAP BOLT

5 10H A2J (Trivalent)

3

X553

N510018480AA

ROUND PLAIN WASHER

5 10H A2J (Trivalent)

4

X563

N510018499AA

ROUND PLAIN WASHER

M5

2

X573

N510020100AA

WASHER

M5-6H-4T A2J (Trivalent)

2

X593

N510017862AA

HEXAGON NUT

M3X16-10.9 A2J (Trivalent)

2

X611

N510017313AA

HEX. SOCKET HEAD CAP BOLT

CS1-G

2V 1 N510010672AA

SENSOR

M182

FN610118237AA_12-2

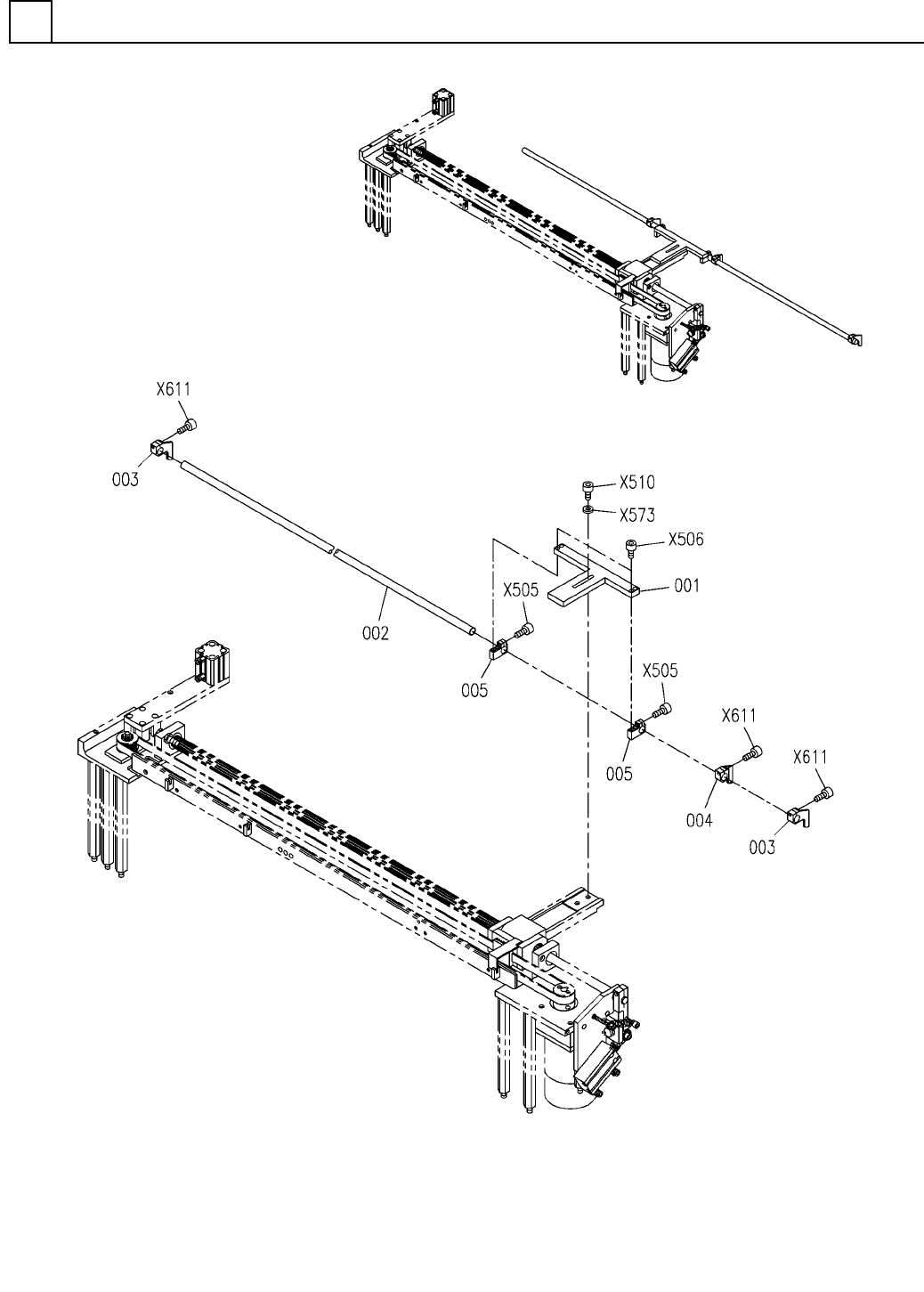

ﾌﾟﾘﾝﾄ基板搬送部(ｷｬﾘｱ部)

P.C.B. TRANSFER SECT.(CARRIER SECT.)

14

FN610131957AA_04

M183

PART No.

ｲﾗｽﾄ

No.

REF

No.

　　　

PART NAME

REMARKSQ'TY

14

ﾌﾟﾘﾝﾄ基板搬送部(ｷｬﾘｱ部)

P.C.B. TRANSFER SECT.(CARRIER SECT.)

部品名品　番個数備考

R

2

R

3

R

1

1

N610131957AA

P.C. BOARD TRANSFER UNIT

1001 N210157800AB

LEVER

1002 N210155596AA

PIPE

2

003 N210157799AA

LEVER

1004 N210157798AA

LEVER

2005 N210116880AA

BLOCK

M4X10-10.9 A2J (Trivalent)

2

X505

N510017344AA

HEX. SOCKET HEAD CAP BOLT

M4X16-10.9 A2J (Trivalent)

4

X506

N510017351AA

HEX. SOCKET HEAD CAP BOLT

M5X20-10.9 A2J (Trivalent)

2

X510

N510017398AA

HEX. SOCKET HEAD CAP BOLT

M5

2

X573

N510020100AA

WASHER

M3X16-10.9 A2J (Trivalent)

3

X611

N510017313AA

HEX. SOCKET HEAD CAP BOLT
