PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 2 Z軸ﾌﾚｰﾑ部 (40ｽﾃｰｼｮﾝ1 ) Z-AXIS FRAME SECT.(4 0 STATION-1) 部 品 名 品 番 個数 備 考 R 2 R 3 R 1 1 N610123554AB Z-AXIS FRA ME UNIT 1 A001 N610123862AB FRAME(SUPP ORT) 3 001 N210…
Z軸ﾌﾚｰﾑ部(40ｽﾃｰｼｮﾝ1)
Z-AXIS FRAME SECT.(40 STATION-1)
2
FN610123554AB_01-1
M15
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKSQ'TY
2
Z軸ﾌﾚｰﾑ部(40ｽﾃｰｼｮﾝ1)
Z-AXIS FRAME SECT.(40 STATION-1)
部 品 名品 番 個数 備 考
R
2
R
3
R
1
1
N610123554AB
Z-AXIS FRAME UNIT
1
A001
N610123862AB
FRAME(SUPPORT)
3001 N210146334AC
BASE
1
002 N210153646AC
PLATE
1003 N210153647AC
PLATE
1004 N210155359AA
BLOCK
2
007 N210155523AA
BRACKET
1
008 N210156009AA
COVER
M8X25-10.9 A2J (Trivalent)
15
X517
N510017473AA
HEX. SOCKET HEAD CAP BOLT
M8X30-10.9 A2J (Trivalent)
8
X518
N510017475AA
HEX. SOCKET HEAD CAP BOLT
5 10H A2J (Trivalent)
6
X553
N510018480AA
ROUND PLAIN WASHER
6 10H A2J (Trivalent)
18
X554
N510018481AA
ROUND PLAIN WASHER
M5X10-10.9 A2J (Trivalent)
6
X622
N510017386AA
HEX. SOCKET HEAD CAP BOLT
M6X40-10.9 A2J (Trivalent)
6
X632
N510017442AA
HEX. SOCKET HEAD CAP BOLT
M10X25-10.9 A2J (Trivalent)
12
X648
N510017166AA
HEX. SOCKET HEAD CAP BOLT
6X12,h8B,STEEL
8
N001
XPJ6E12FW
PARALLEL PIN
M8-6H-4T A2J (Trivalent)
3
N002
N510017879AA
HEXAGON NUT
M16
FN610123554AB_01-1

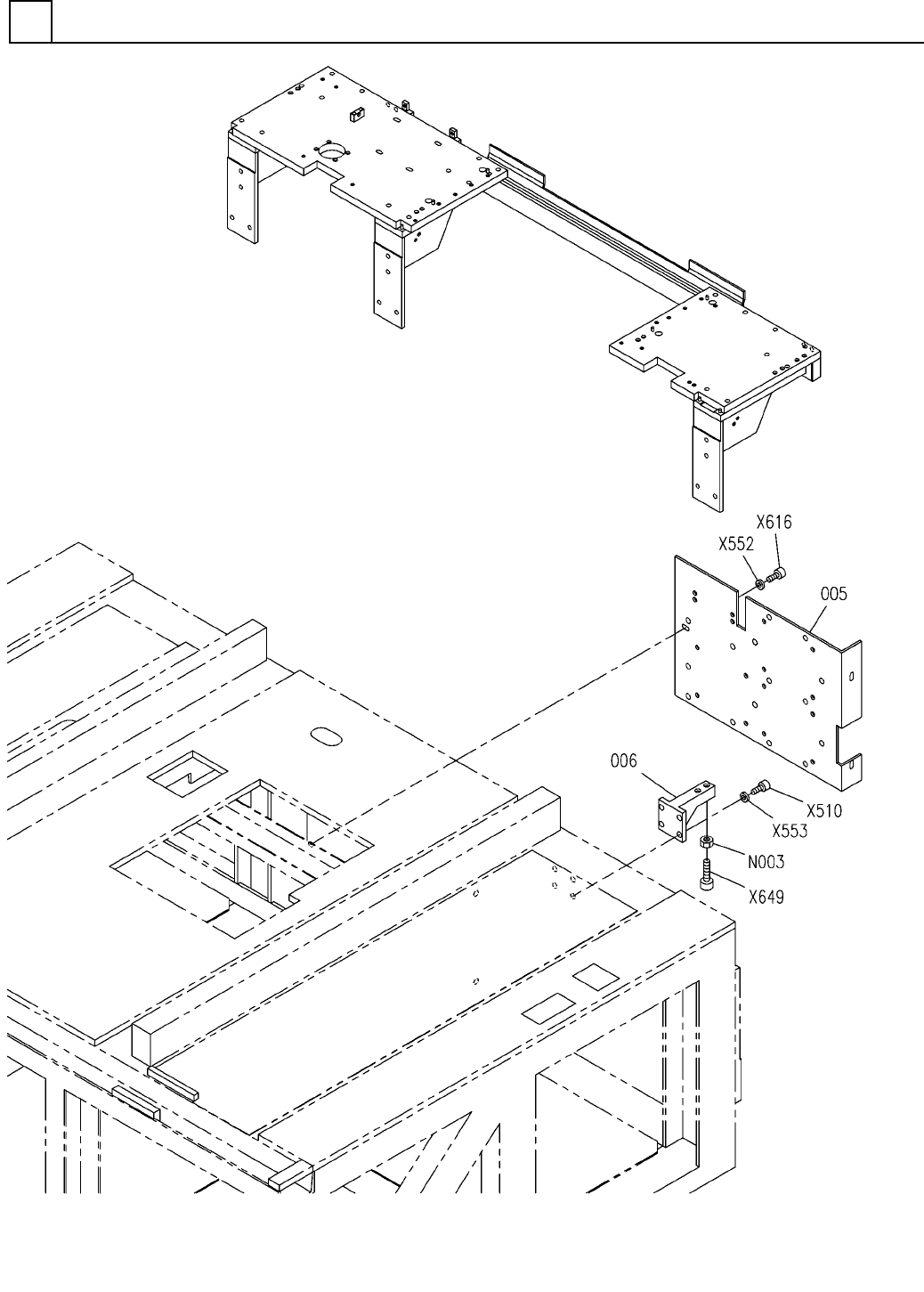

Z軸ﾌﾚｰﾑ部(40ｽﾃｰｼｮﾝ2)
Z-AXIS FRAME SECT.(40 STATION-2)
2
FN610123554AB_01-2
M17
